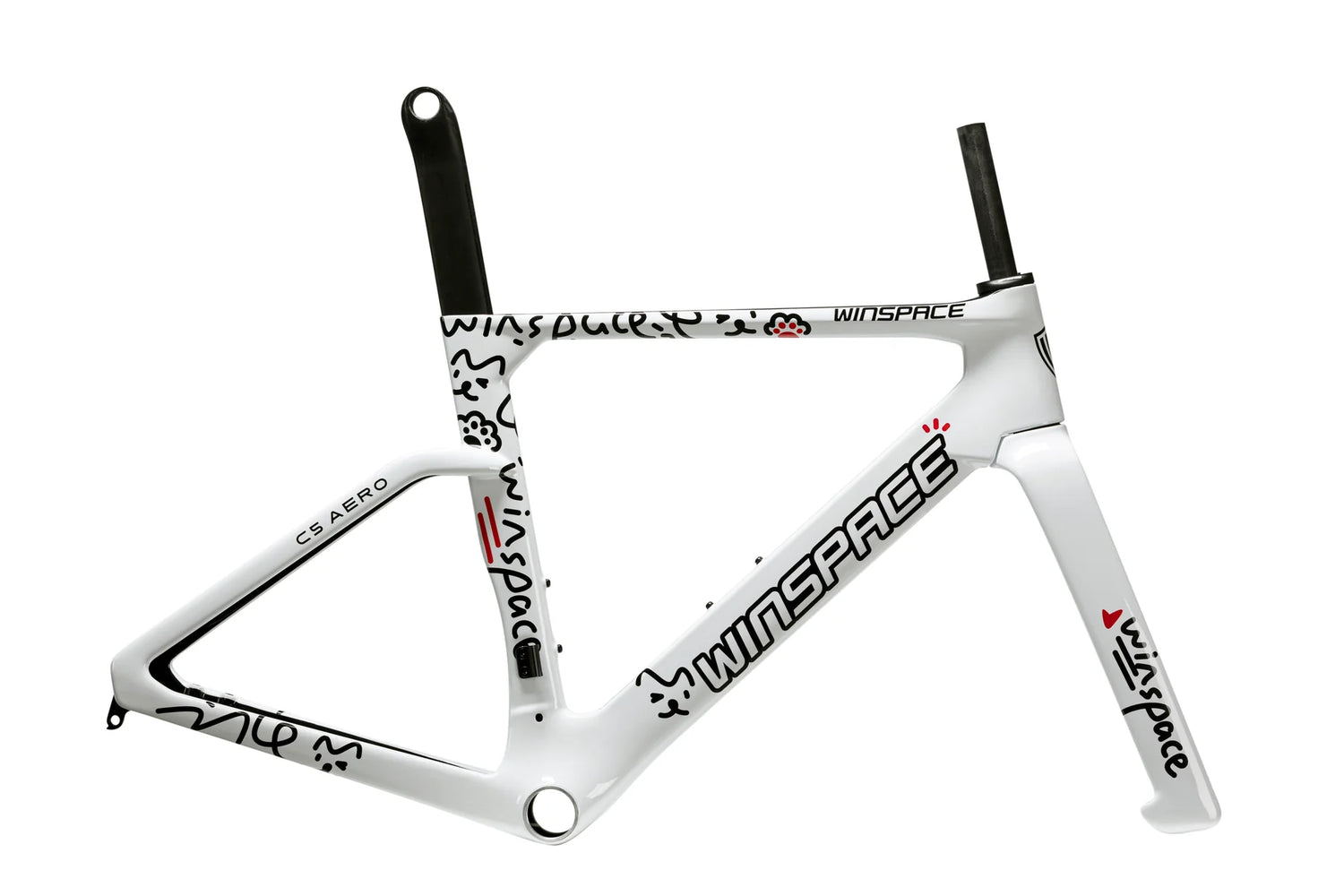

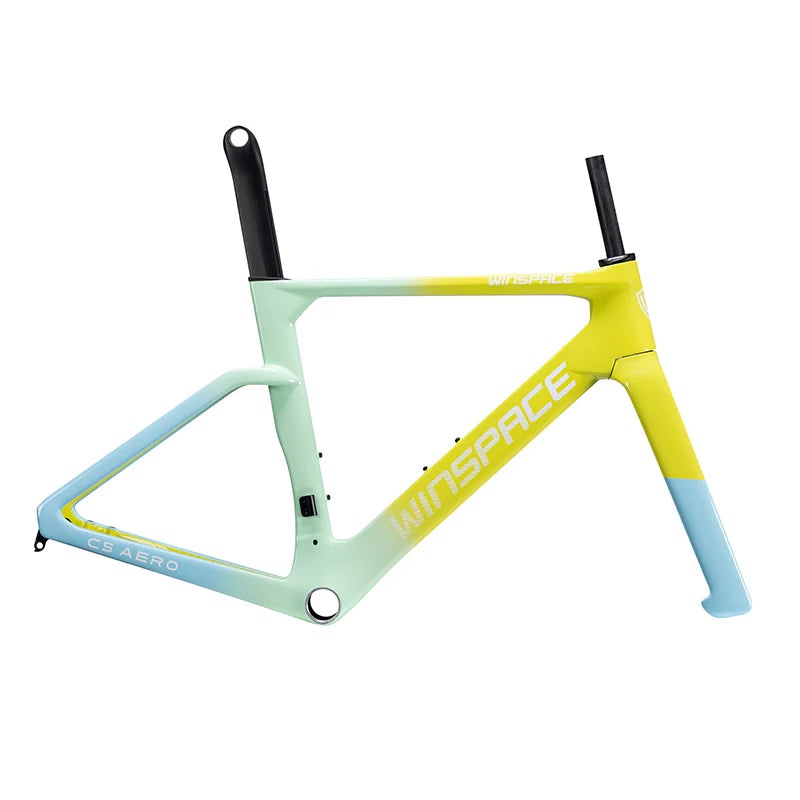

WINSPACE C5 Aero
The C5 Aero is a high-performance frame designed for riders seeking maximum aerodynamic efficiency without compromising stiffness or comfort. Made with T800 carbon fiber and high modulus M Series, it offers lightness, precise handling, and compatibility with flat mount disc brakes and wide tires.
Main features
-
Available sizes: XS (435 mm), S (465 mm), M (485 mm), L (515 mm), XL (535 mm)
-
Colors: Le Tour Edition / Graffiti / Twilight Glow / Chameleon White
-
Brake: Flat mount disc brake
-
Head tube: NO.55R 1.5″ / ACR / STD (headset included)
-
Bottom bracket: T47
-
Seatpost: Aero Seat Post (included)
-
Maximum tire width: 700C x 32 mm
-
Wheel axles: 12 mm thru axle (F100 mm / R142 mm)
-
Material: T800 carbon fiber + high modulus M Series
-
Estimated weight: 900 g ± 30 g (size M, unpainted)
-
Contents: frame, fork, seatpost, headset, Di2 cable stops, Direct Mount derailleur hanger
Advantages
-
Aerodynamics optimized for maximum efficiency at sustained speeds
-
Lightweight and stiff for immediate power transfer
-
Compatible with disc brakes and tires up to 32 mm
-
Includes all components needed for complete assembly
-
Modern geometry that combines comfort and performance for long rides and racing
