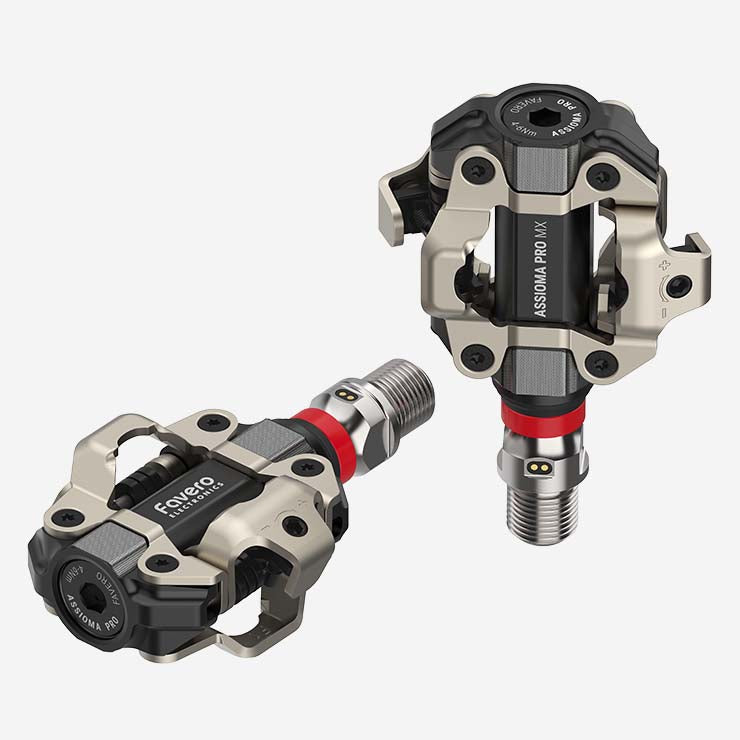

Designed specifically for MTB and gravel, the Assioma PRO MX combines Favero's renowned precision with a durable frame capable of tackling the most demanding terrain.
The fully sealed stainless steel shaft houses all key electronic components, strain gauges, and the rechargeable battery.
Furthermore, it is completely independent from the pedal body, following an architecture based on separate components, which guarantees IP67 protection, prevents power drops, and facilitates maintenance. The pedal body, without electronics, is made of 6061-T6 aluminum and offers exceptional impact resistance without sacrificing lightness. The SPD®-compatible engagement system is designed for intensive use, with a surface hardness of up to 800 HV.
Thanks to its modular design, you can easily switch between road and MTB pedal bodies while maintaining the same Assioma PRO power sensor. The IAV Power System offers ±1% accuracy, even with explosive efforts, irregular pedaling, or when using oval chainrings.
Whether climbing a technical route or descending a muddy trail, the Assioma PRO MX provides you with real-world, reliable data, along with a variety of advanced metrics to improve your performance.
MAIN FEATURES
- Power sensor on the left and right pedal for MTB and gravel
- Weight of each pedal with power meter: 195.3 g
- Left/right leg balance
- Cadence sensor: internal, integrated
- Gyroscope: internal, integrated
- Power calculation system: IAV (based on instantaneous angular velocity)
- Left pedal with power sensor
- Right pedal with power sensor
- 100% Shimano® SPD® compatible
- Power accuracy of ±1%, even with oval chainrings
- Rechargeable battery – over 60 hours of runtime per charge
- Advanced cycling metrics (including PCO – Platform Center Offset )
- Pedal body in 6061-T6 aluminum
- SPD® compatible coupling system in chrome-molybdenum alloy with a surface hardness of up to 800 HV
- Pedal stack height : 11.2 mm
- Modular design – interchangeable pedal bodies (MTB/Road)
- Made in Italy
TECHNICAL SHEET
- Pedals for MTB and gravel with power meter on both sides
- Weight of each pedal with power meter: 195.3 g
- Left/right leg balance
- Cadence sensor: internal, integrated
- Gyroscope: internal, integrated
- Power calculation system: IAV (based on instantaneous angular velocity)
- IAV Cycling Dynamics : available
-
Data visible via ANT+ or Favero Assioma app:
- Power
- Cadence
- Left/right leg balance
- PCO
- Power phase (PP)
- Pedaling Smoothness (PS)
- Torque effectiveness (TE)
- Sitting/standing position (not Favero Assioma app)
-
Data visible via Bluetooth:
- Power
- Cadence
- Left/right leg balance
- Oval chainring compatibility: yes
- Battery: lithium, rechargeable
- Battery life: minimum 60 hours
- Radio communication: Bluetooth, ANT+
- Power measurement accuracy: ± 1%
- Thermal compensation: yes
- Waterproof rating: IP67
-
Stack height :
- Pedal stack height : 11.2mm
- Shimano ® cleat height : 6.0 mm
- Total stack height : 17.2 mm
-
Compatible coves:
- Provided cleats ( art. 773-00-62 )
- Shimano ® SM-SH51 and SM-SH56 cleats
- Bike type: MTB XC, CX, gravel
- Warranty: 2 years
BOX CONTENTS
-
Power meter with sensor on both sides
-
SPD® compatible MTB cleats
-
4 Washers, 2 cleat washers and 4 screws
-
2 Magnetic connectors
-
1 Dual Charging Cable
-
Greasing kit
-
Warranty and Safety Manual
-
Welcome brochure
