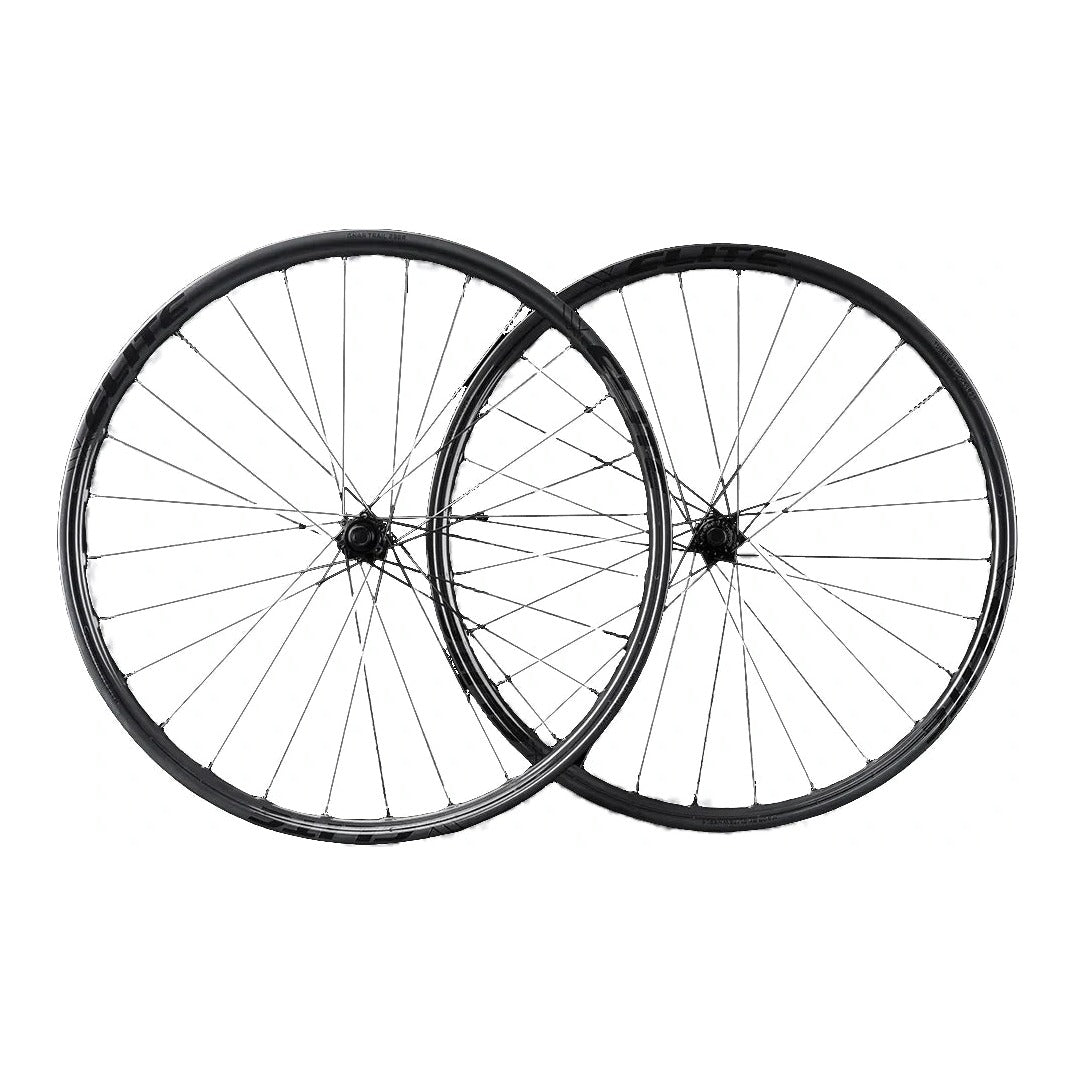

EliteWheels Gnar Trail SR MTB

The EliteWheels Gnar Trail SR MTB are 29″ carbon wheels for trail, all-mountain and XC, with Pro Ratchet Star hubs and an asymmetric rim for control and durability on demanding terrain.

• 29″ for trail / all-mountain — from 1,510 g per wheelset, without rim tape or tubeless valves; robust and reliable.
• Pro hubs with Ratchet Star — fast and reliable engagement from EliteWheels.
• 30 mm internal width — for 2.2–3.1″ tires.
• Asymmetric rim — more control and stability on descents.

Tubeless-ready. EliteWheels’ versatile trail wheel.

• Wheel size: 29″.
• Recommended use: trail, all-mountain, and XC.
• Rim material: Toray T700 and T800 carbon.
• Rim design: asymmetric profile with a 3.5 mm offset.
• Profile: 24.5 mm
• Internal rim width: 30 mm.
• External rim width: 37 mm.
• Rim type: hookless.
• Tire compatibility: tubeless-ready.
• Recommended tires: 2,2–3,1″.
• Maximum pressure: 50 psi / 3.4 bar.
• Hubs: EliteWheels Pro 7075 aluminum with a 36-tooth Star Ratchet system.
• Spokes: Sapim CX-Ray; 28 front and 28 rear.
• Nipples: Sapim Secure Lock.
• Axle compatibility: standard: 15×100 mm front and 12×142 mm rear; Boost: 15×110 mm front and 12×148 mm rear; QR: 5×100 mm front and 5×135 mm rear.
• Brake system: Boost: Center Lock or 6-bolt; standard and QR: 6-bolt only.
• Total load limit: 125 kg, including rider, bicycle, equipment, and accessories.
• Bearings: TPI.
• Lacing: three-cross on both sides of both wheels.
• Compatible freehubs: Shimano HG, SRAM XD, and Shimano Micro Spline.
• Rim finish: gloss black.
• Rim reinforcement: 38 layers of carbon around each spoke hole.
• ERD: 590 mm.
• Assembly: manual.
• eMTB compatibility: this model is not designed for electric mountain bikes.

• Wheels: front and rear set.
• Tubeless: rim tape and valves installed.
• Documentation: product manual and quality control report.

Pair weight: from 1,510 g with Pro hubs, without rim tape or tubeless valves (standard axles, 6-bolt and SRAM XD freehub body).

Standard, 15×100 / 12×142 mm, 6-bolt: Shimano HG 1,518 g · SRAM XD 1,510 g · Shimano Micro Spline 1,513 g

Boost, 15×110 / 12×148 mm, 6-bolt: Shimano HG 1,538 g · SRAM XD 1,531 g · Shimano Micro Spline 1,536 g

Boost, 15×110 / 12×148 mm, Center Lock: Shimano HG 1,526 g · SRAM XD 1,518 g · Shimano Micro Spline 1,522 g

3-year legal warranty

EliteWheels also offers a 3-year commercial warranty against defects in materials or workmanship from the date of receipt, for the original purchaser of a new unit purchased from the official website or an authorized distributor.

Commercial warranty periods for specific components: bearings, 6 months; freehub body and ratchet/pawl mechanisms, 1 year.

The commercial warranty excludes normal wear, accidents, and damage caused by use outside the intended scope. The SR is not designed for eMTBs, and damage caused by such use is not covered.
