Evolve Artista Cima Dura-Ace Di2

The Evolve Artista Cima The Evolve Artista Cima Dura-Ace Di2 is a high-end climbing road bike: built around the ~650 g, unpainted Artista Cima frame in size M, it features Shimano Dura-Ace Di2 for fast climbing and precise riding.

• Artista Cima Frame - T1100, T800 and M40 high-modulus carbon, among the lightest for climbing.
• Dura-Ace Di2 - Shimano's top-of-the-line electronic groupset (2 × 12-speed).
• Integrated Kreuza cockpit and Evolve aero seatpost - a clean, aerodynamic front end with fully internal cable routing.
• EliteWheels Drive 50D II carbon wheels - 50 mm profile, tubeless-ready for fast riding.

Available in 6 sizes (XS-XL), 13 finishes, and small or large logos. Tire clearance up to 32 mm.

• Frame: Evolve Artista Cima, Toray T1100, T800, and M40 carbon
• Fork: full carbon; 44 mm offset (XS–M) or 40.2 mm (ML–XL)
• Cable routing: fully internal
• Brakes: Flat Mount disc; frame compatible with rotors up to 160 mm front and rear
• Axles: 12 × 100 mm front and 12 × 142 mm rear
• Headset: CeramicSpeed SLT; 40.5 × 49.5 × 6.5 mm bearings
• Groupset: Shimano Dura-Ace Di2, 2 × 12-speed electronic drivetrain
• Wheels: EliteWheels Drive 50D II, 700C; 50 mm rim depth, 23 mm internal width and 31 mm external width; hooked rim compatible with tubes and tubeless tires; Center Lock rotors
• Cockpit: Evolve Kreuza Apex integrated
• Seatpost: Evolve aerodynamic
• Saddle: Selle Italia SLR Boost
• Tires: Continental Grand Prix
• Tire clearance: frame clearance up to 32 mm; the Drive 50D II accommodates tires from 700x28C
• Sizes: XS, S, M, ML, L, XL
• Bottom bracket: 68 mm threaded BSA shell
• Derailleur hanger: SRAM UDH interface, M12 × 1 mm
• Use: paved roads, ASTM Condition 1
• Structural limit: 109 kg rider and cargo; the manual does not authorize carrying luggage
• Frame certification: UCI and CE, as declared by Evolve

Official Evolve frame and fork weights, after painting. The frame weighs about 650 g in size M unpainted.

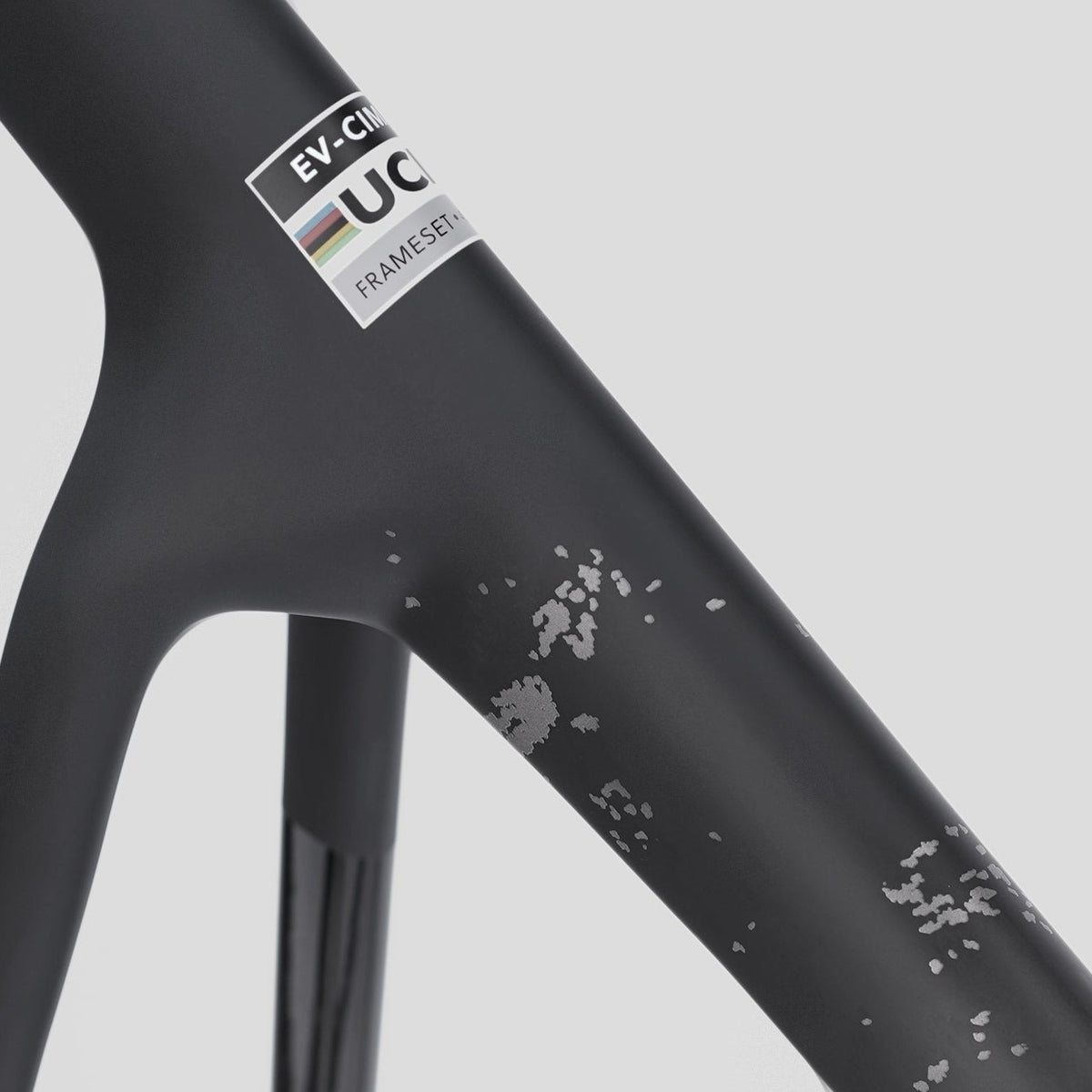

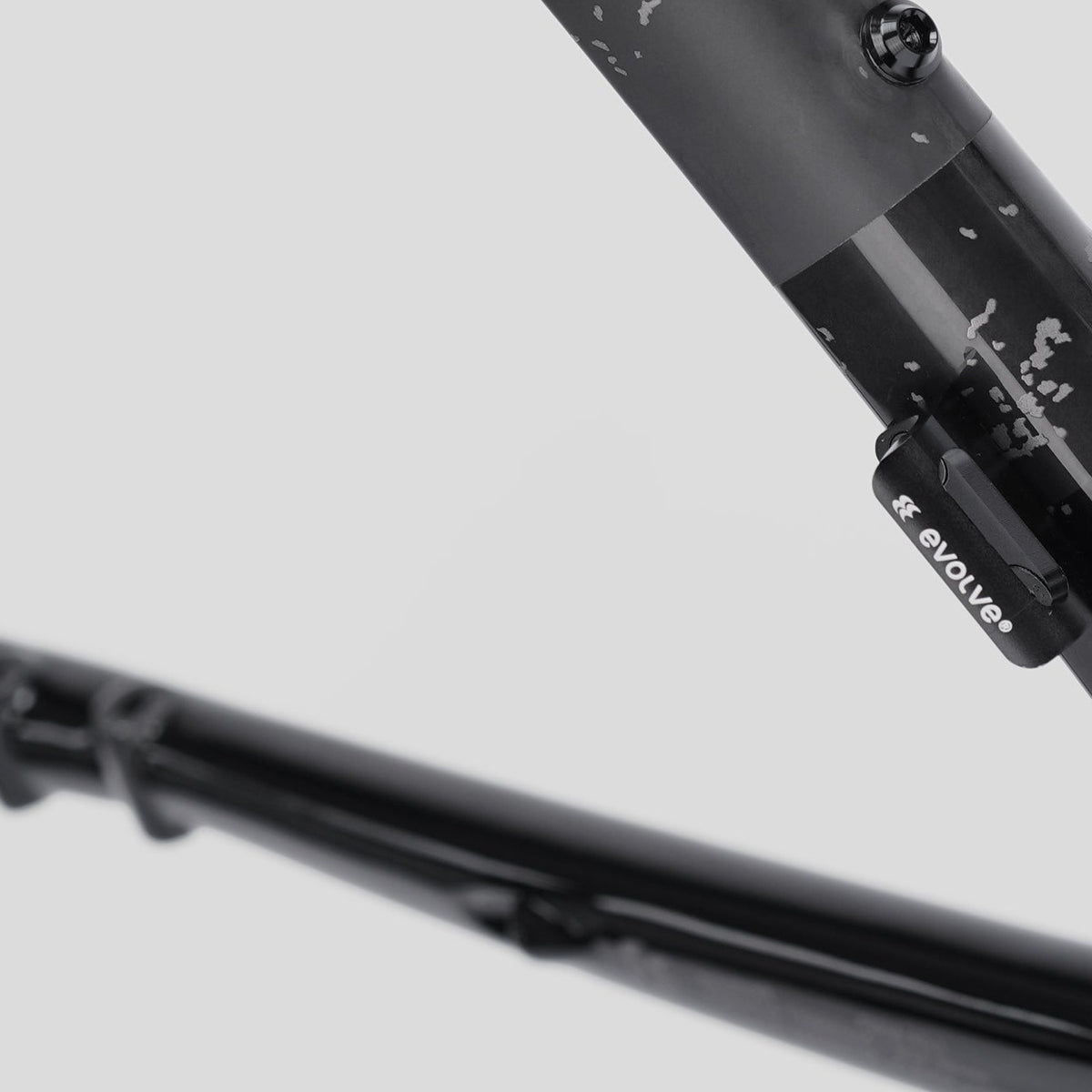

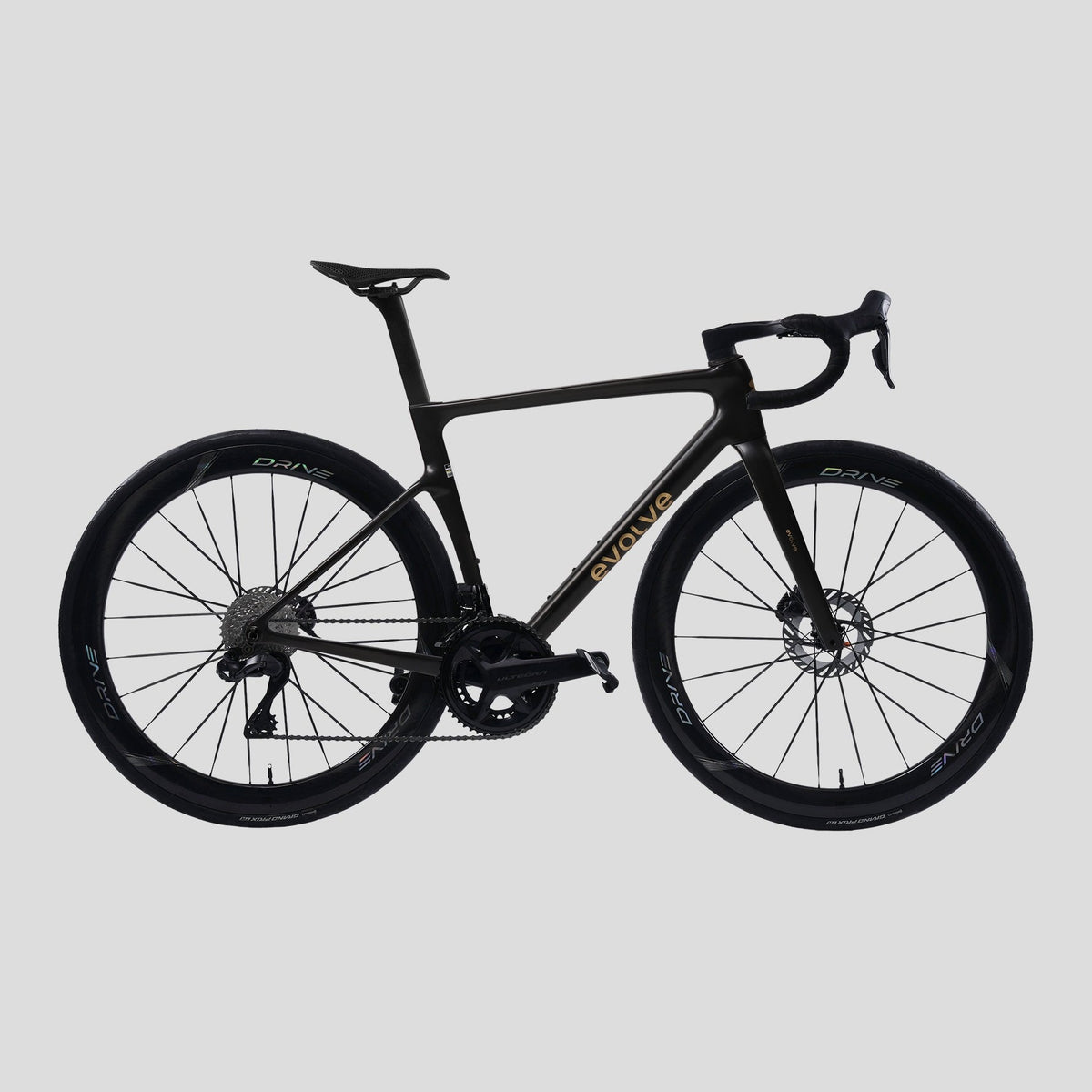

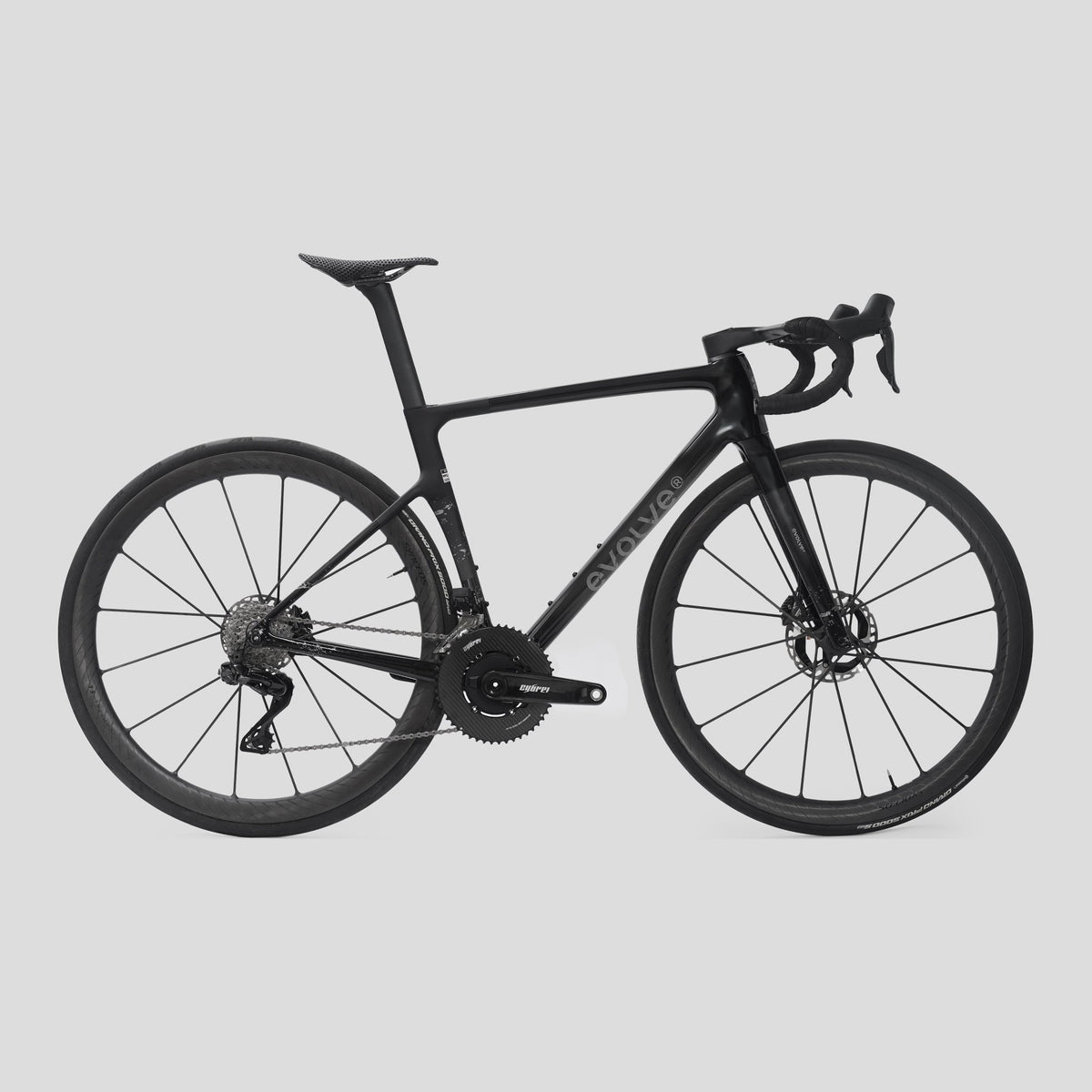

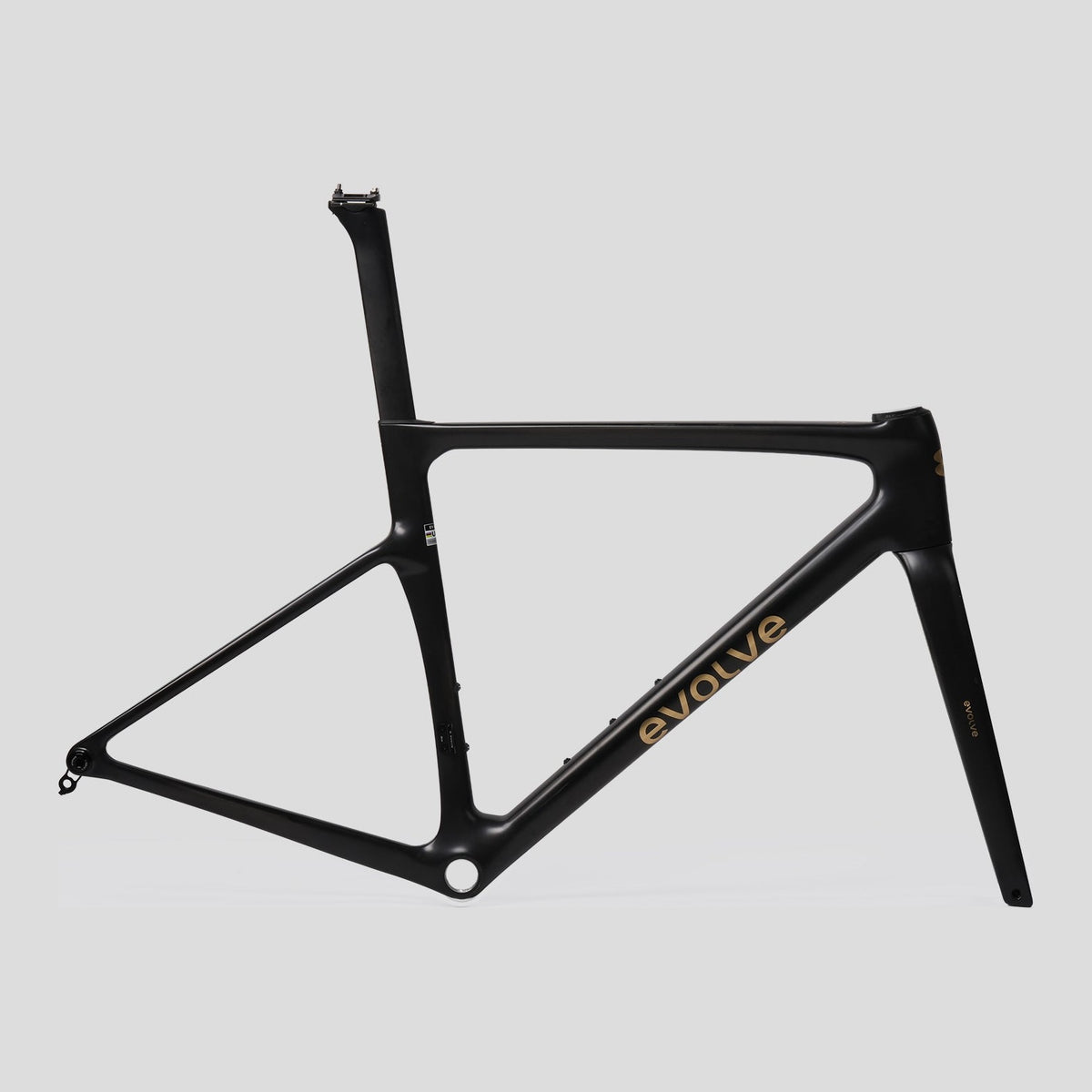

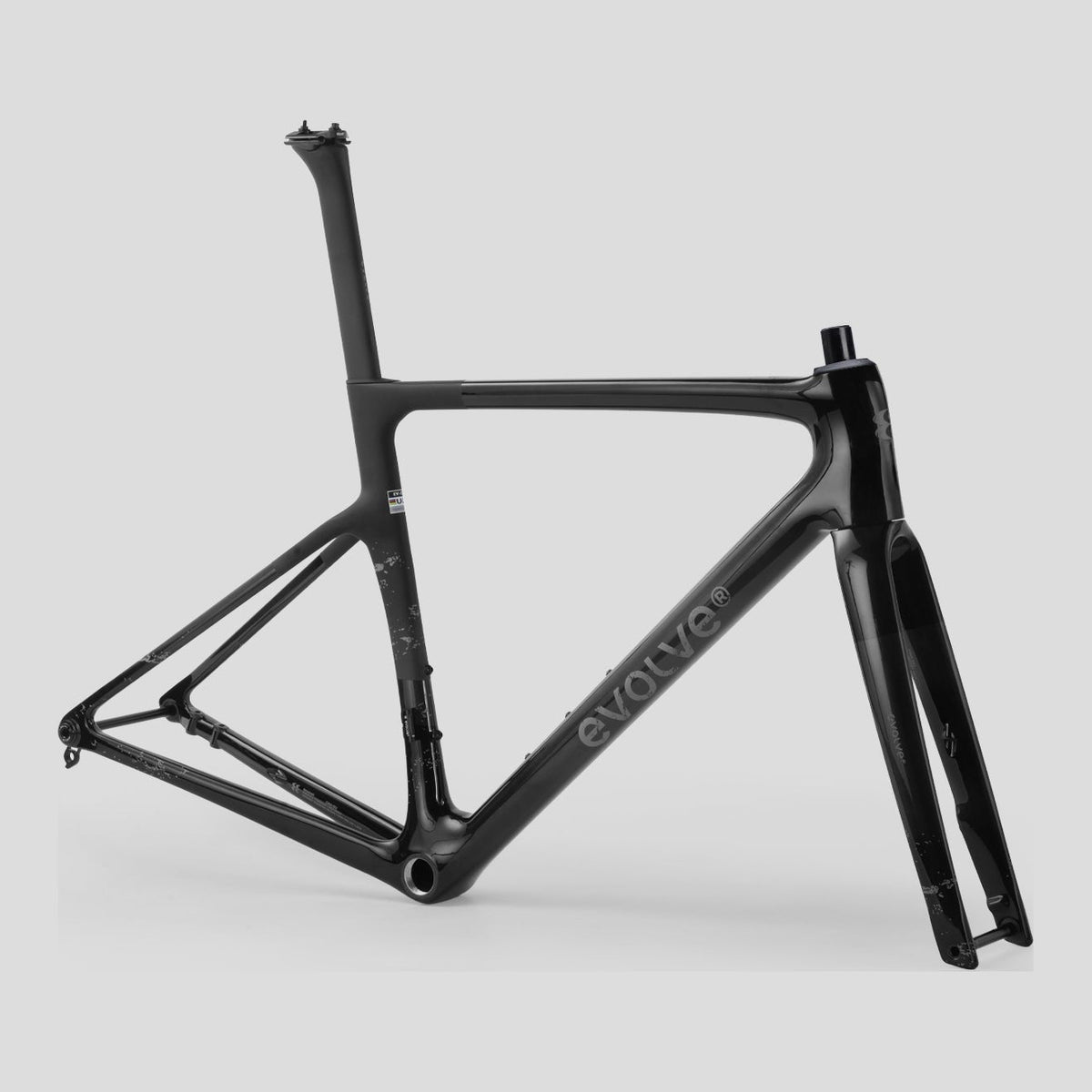

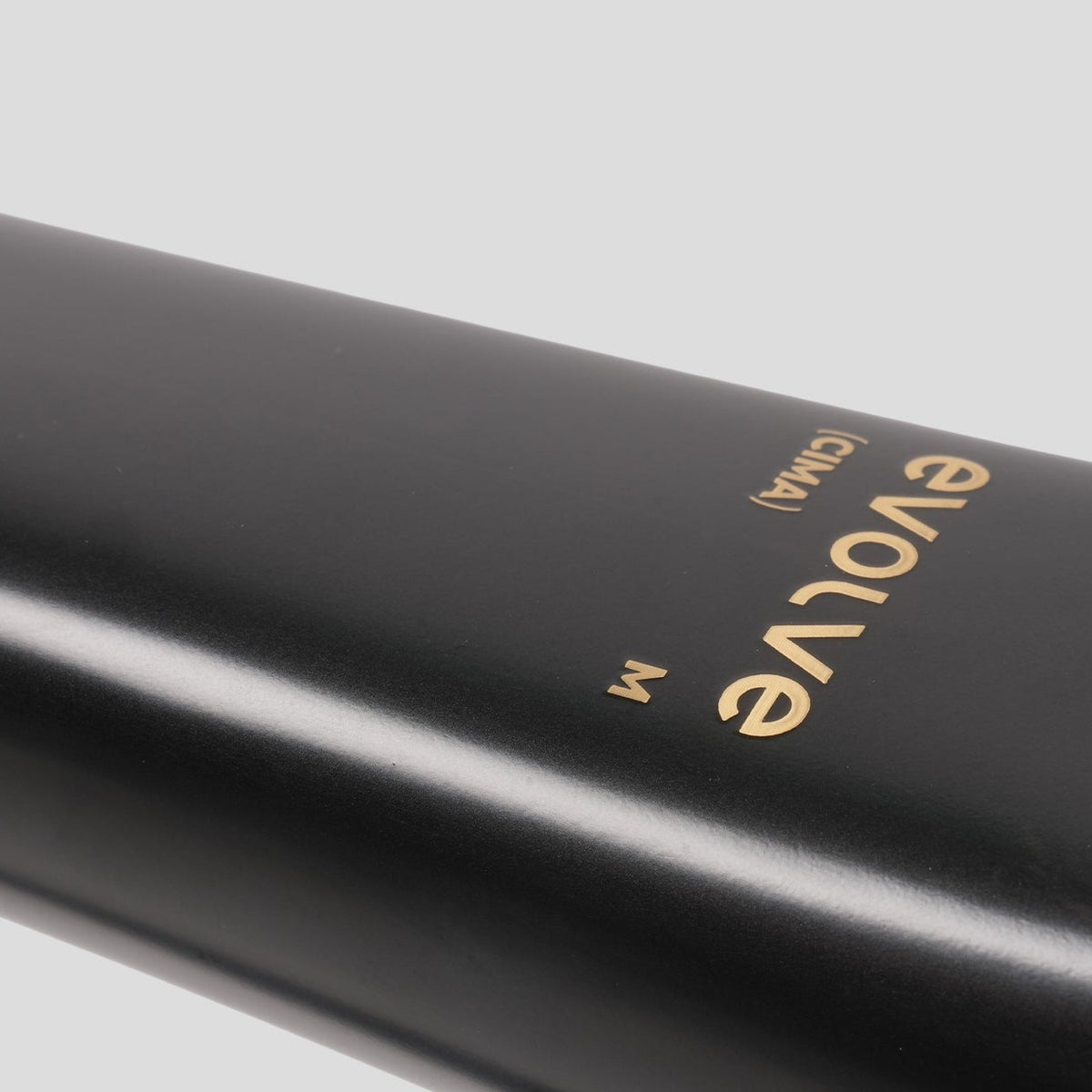

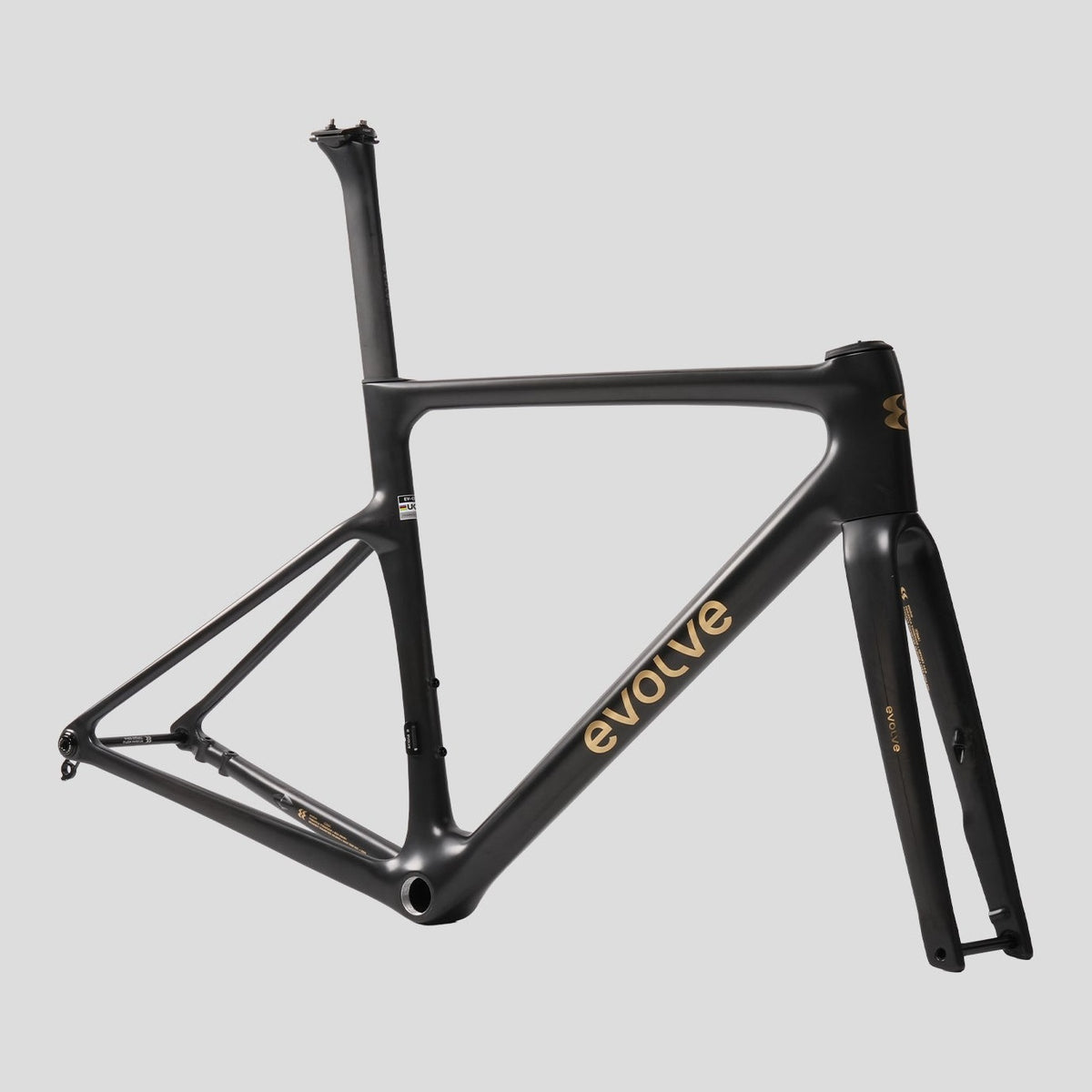

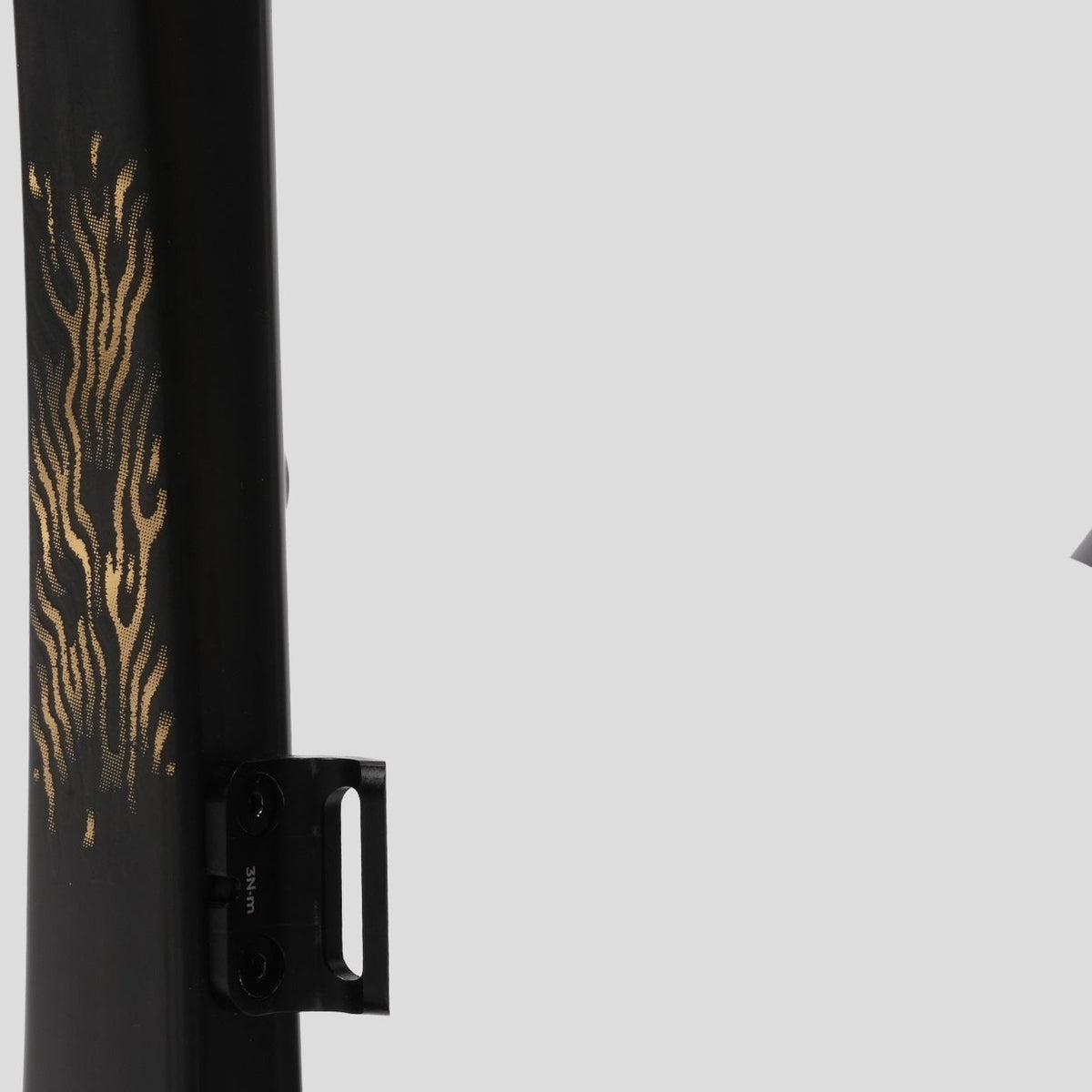

Speed - Nirvana and Matte Black: frame 696 g in M (685–765 g from XS to XL) · fork 366 g

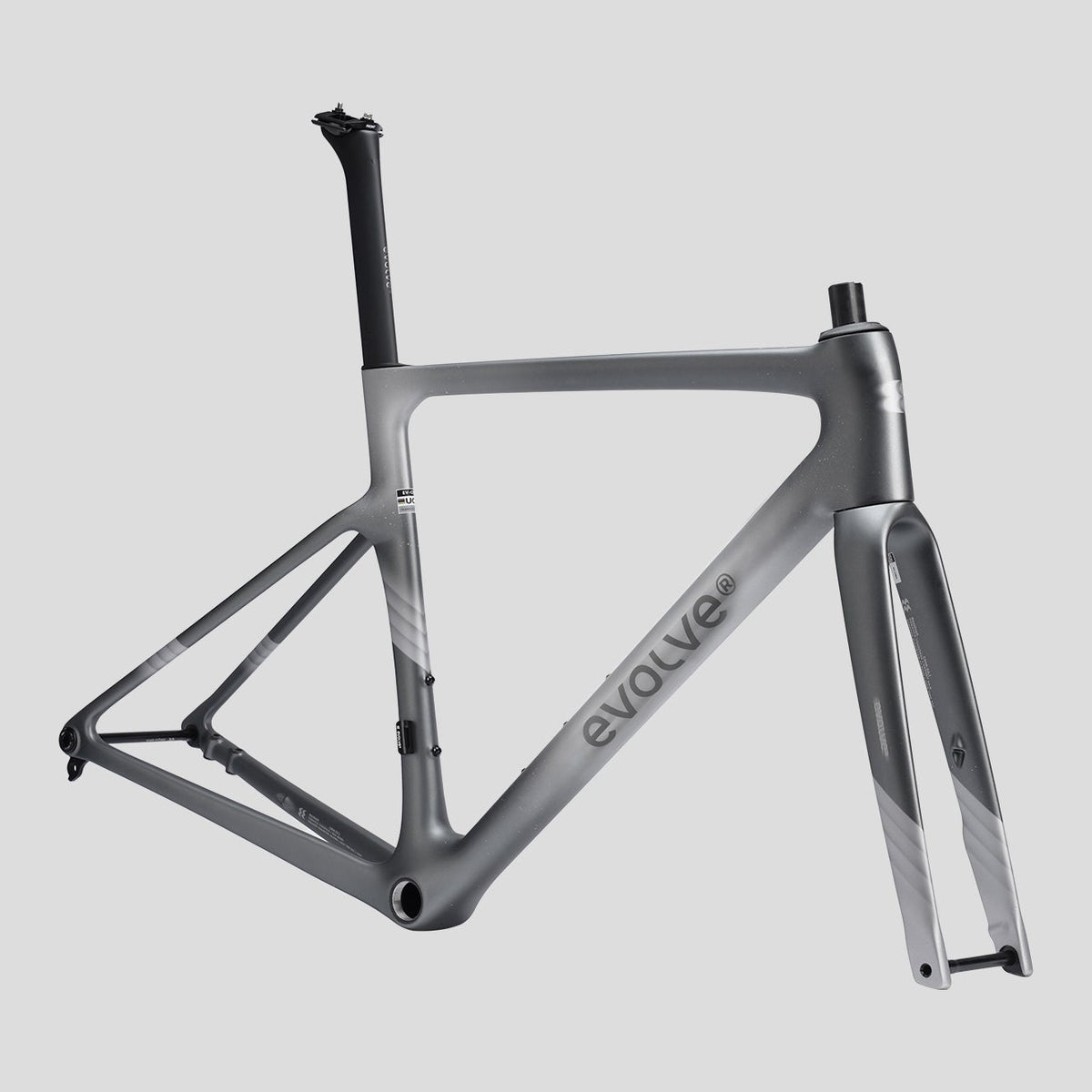

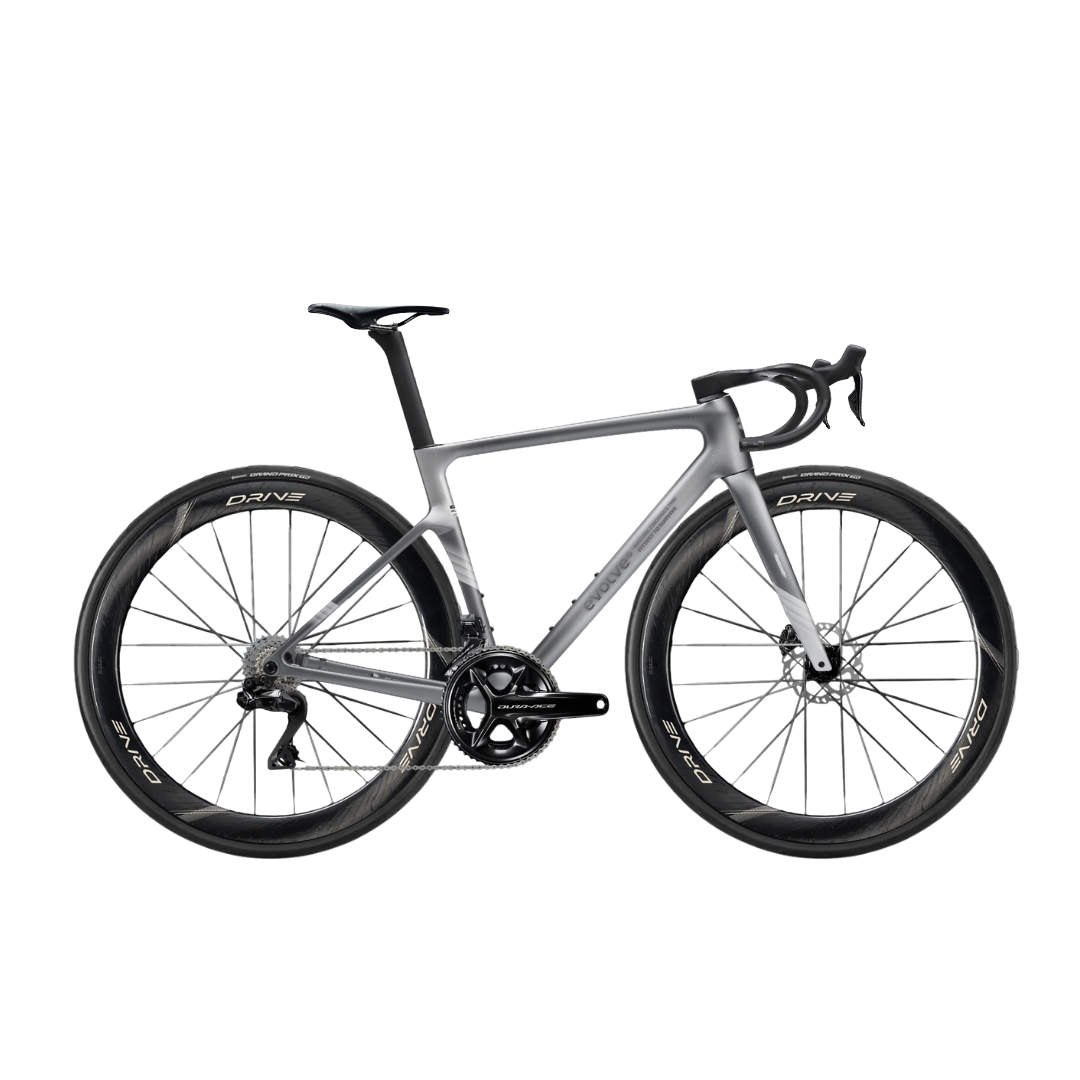

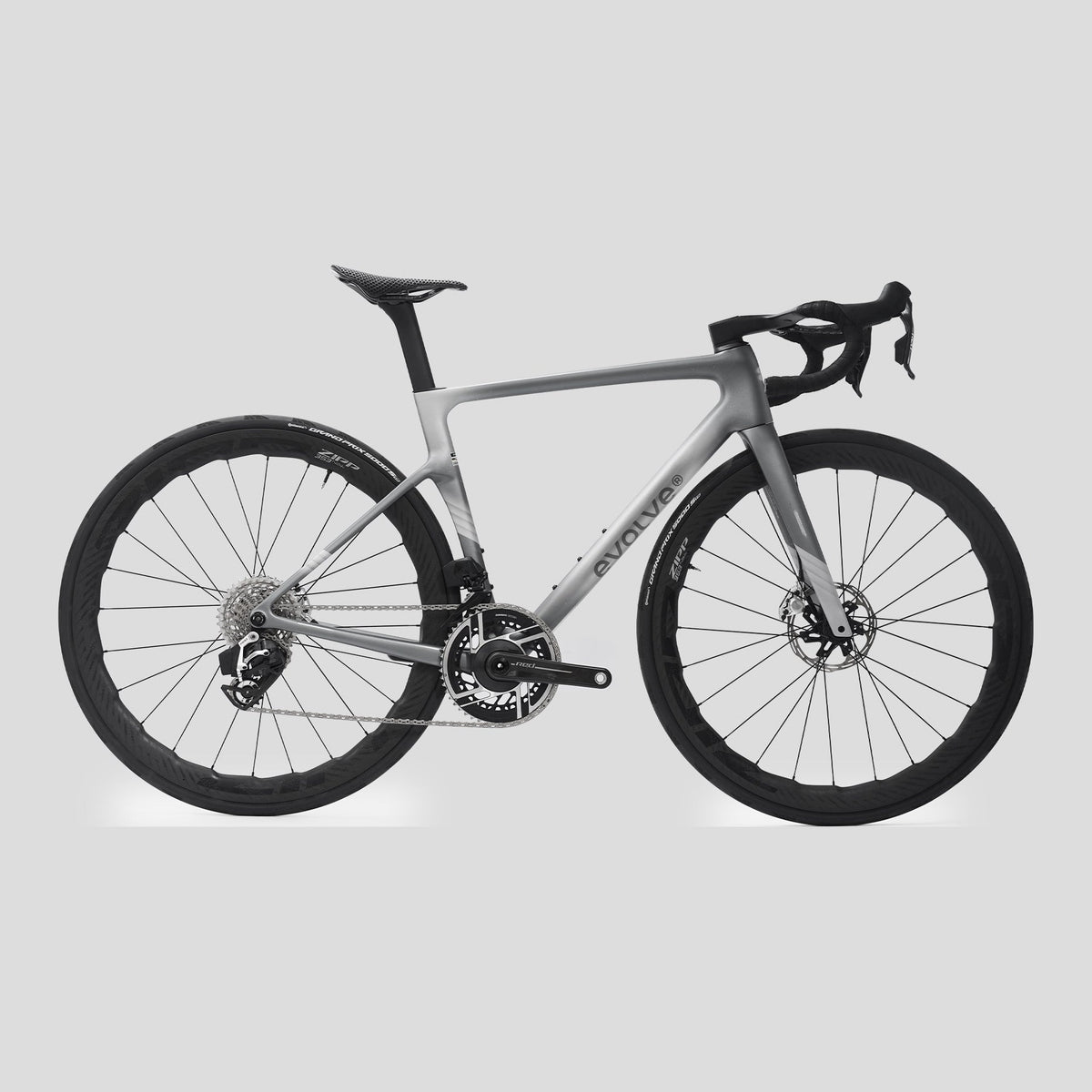

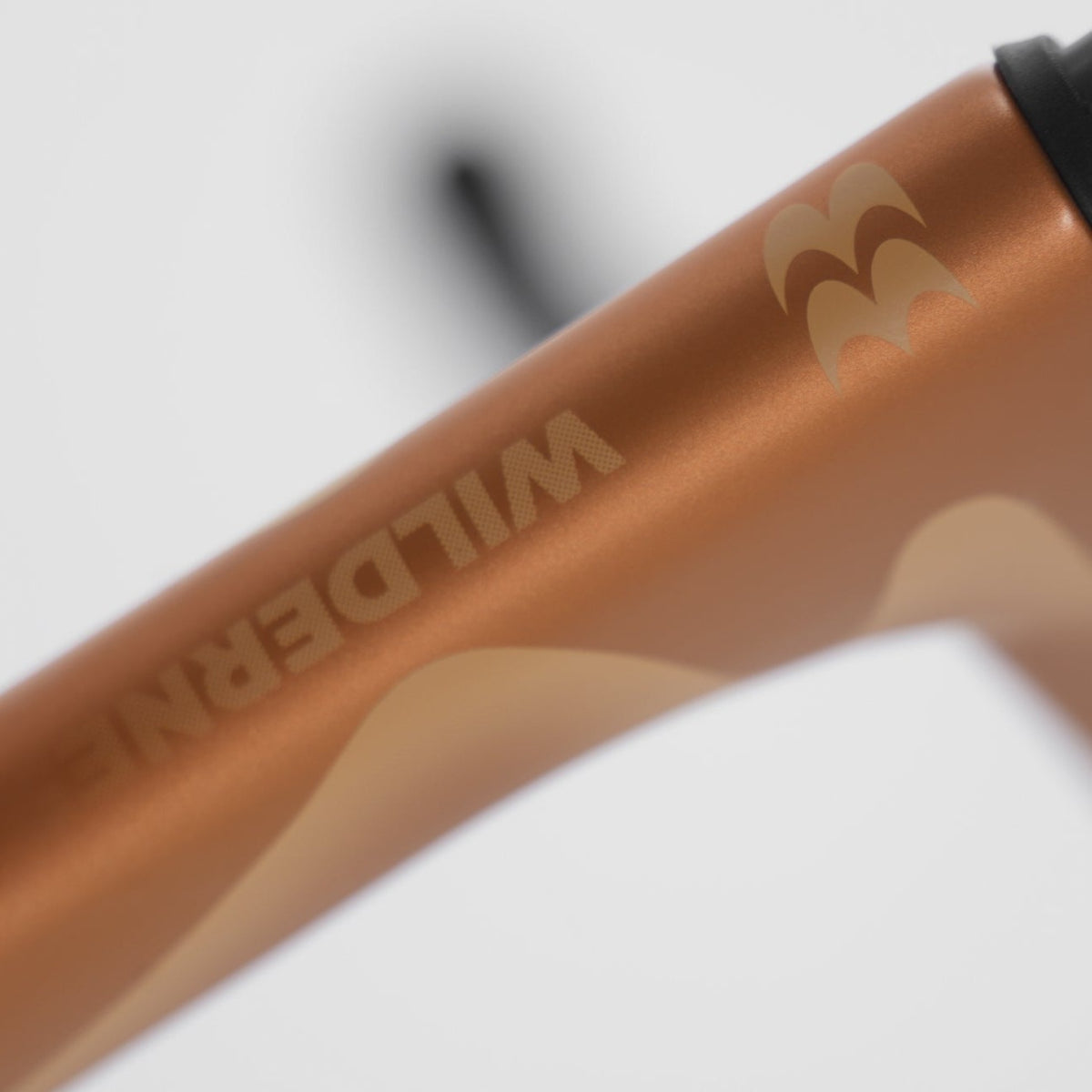

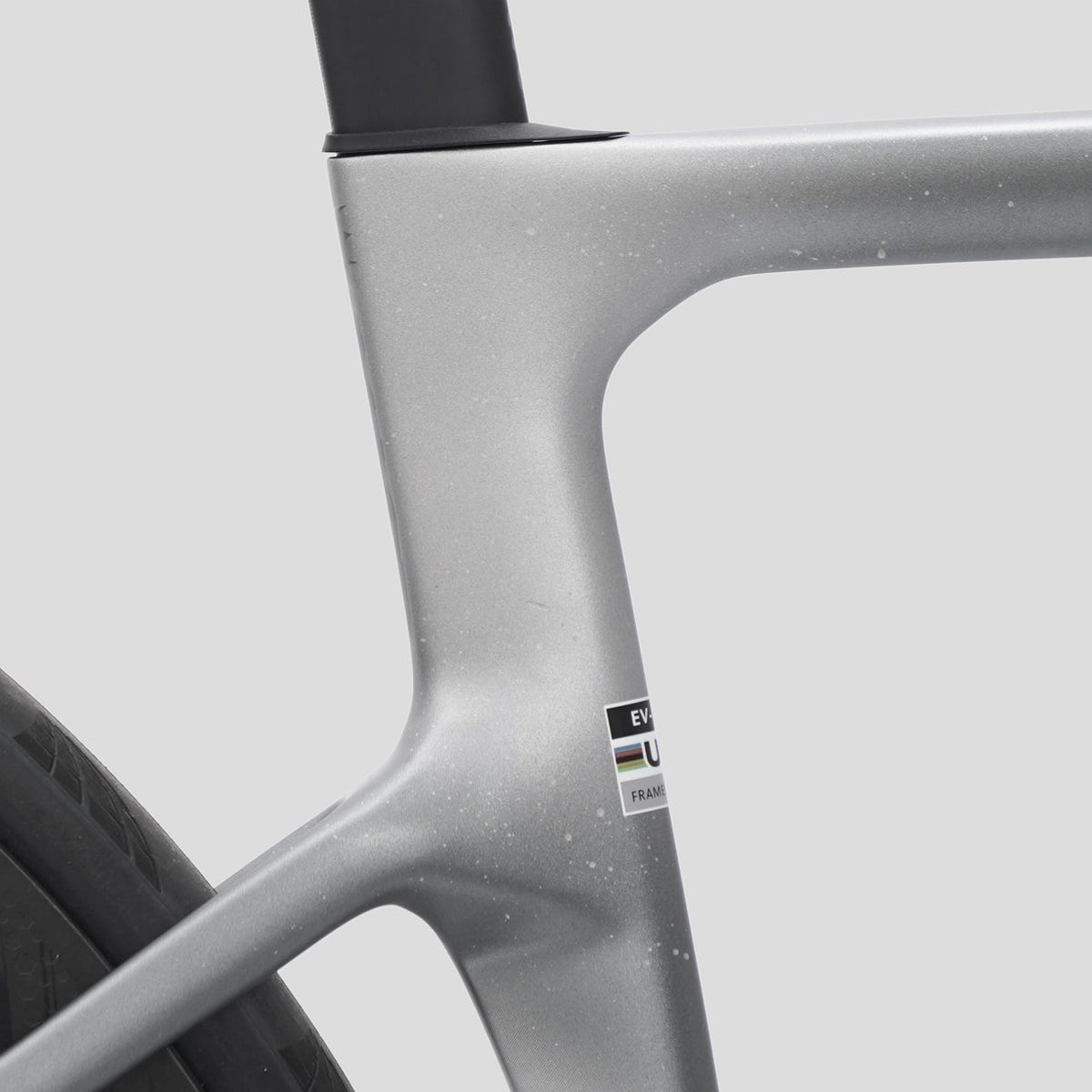

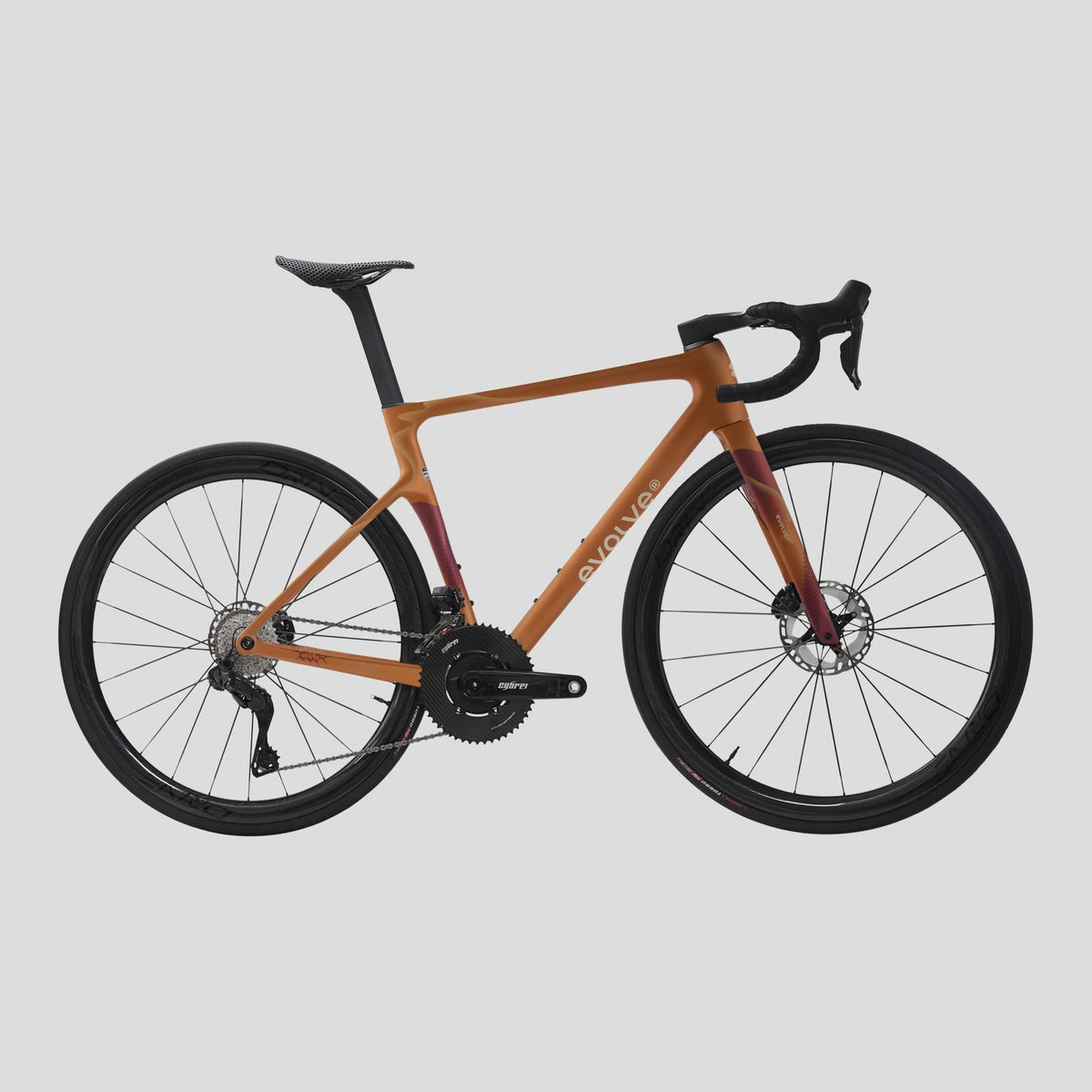

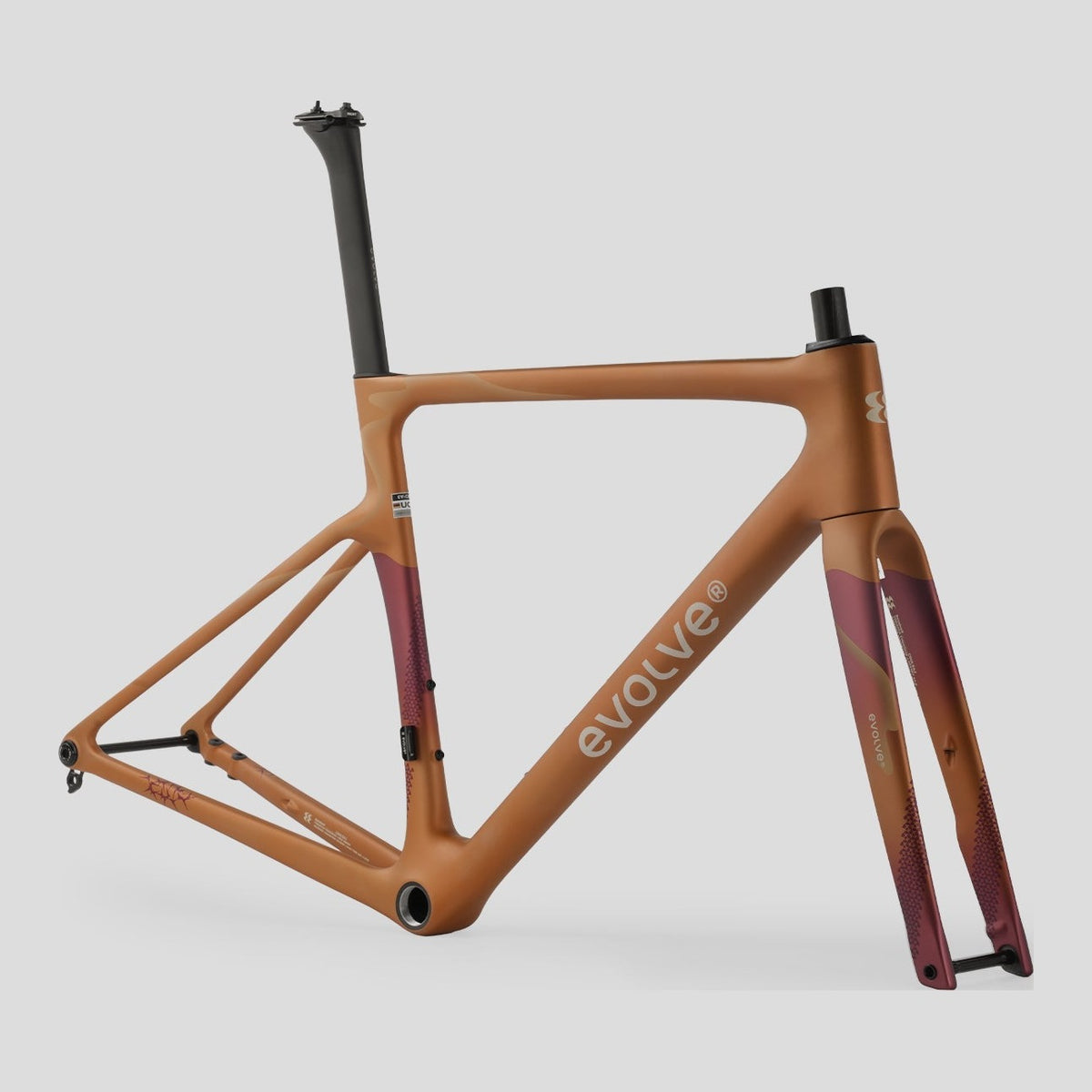

Wilderness and Mist: frame 701 g in M (690–770 g from XS to XL) · fork 370 g

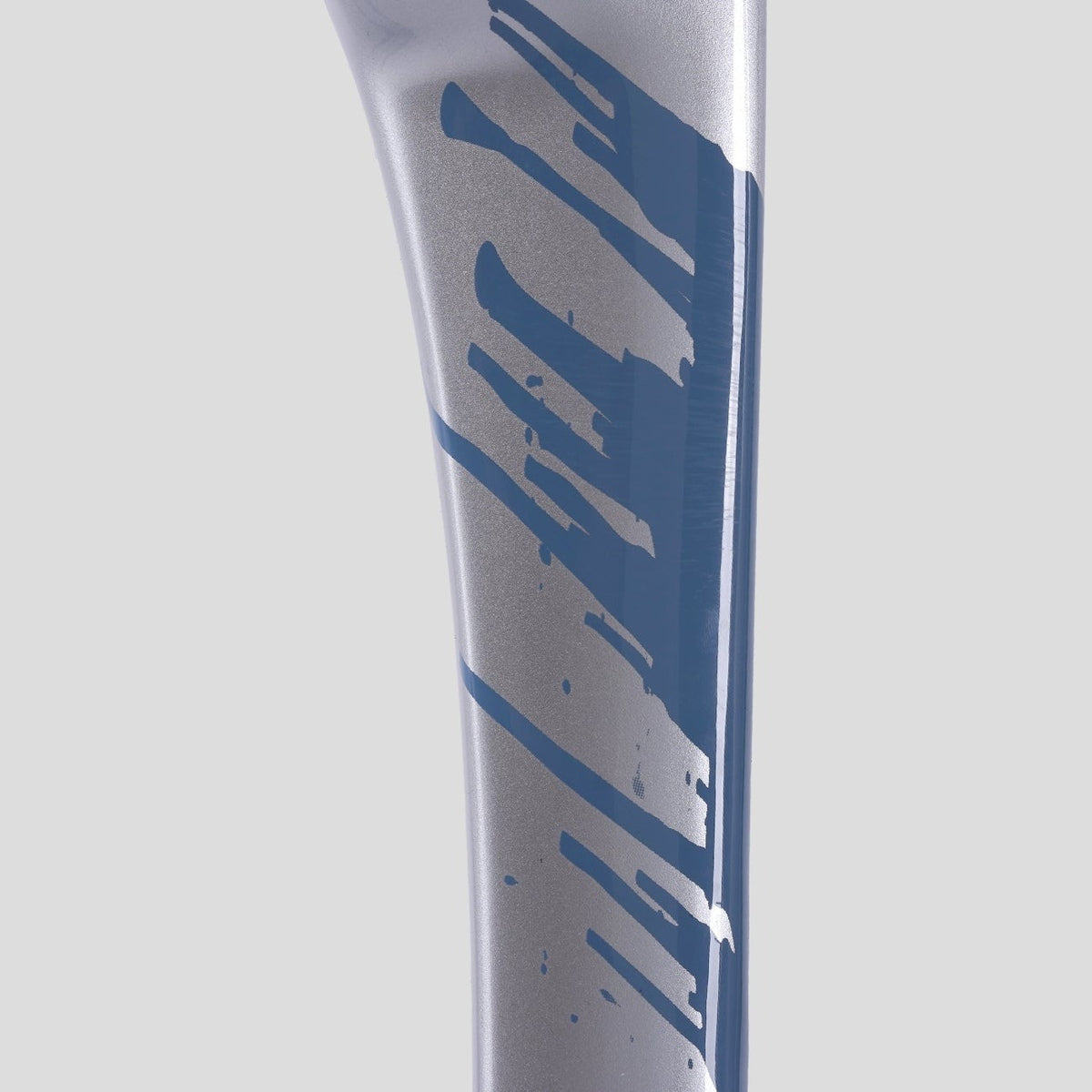

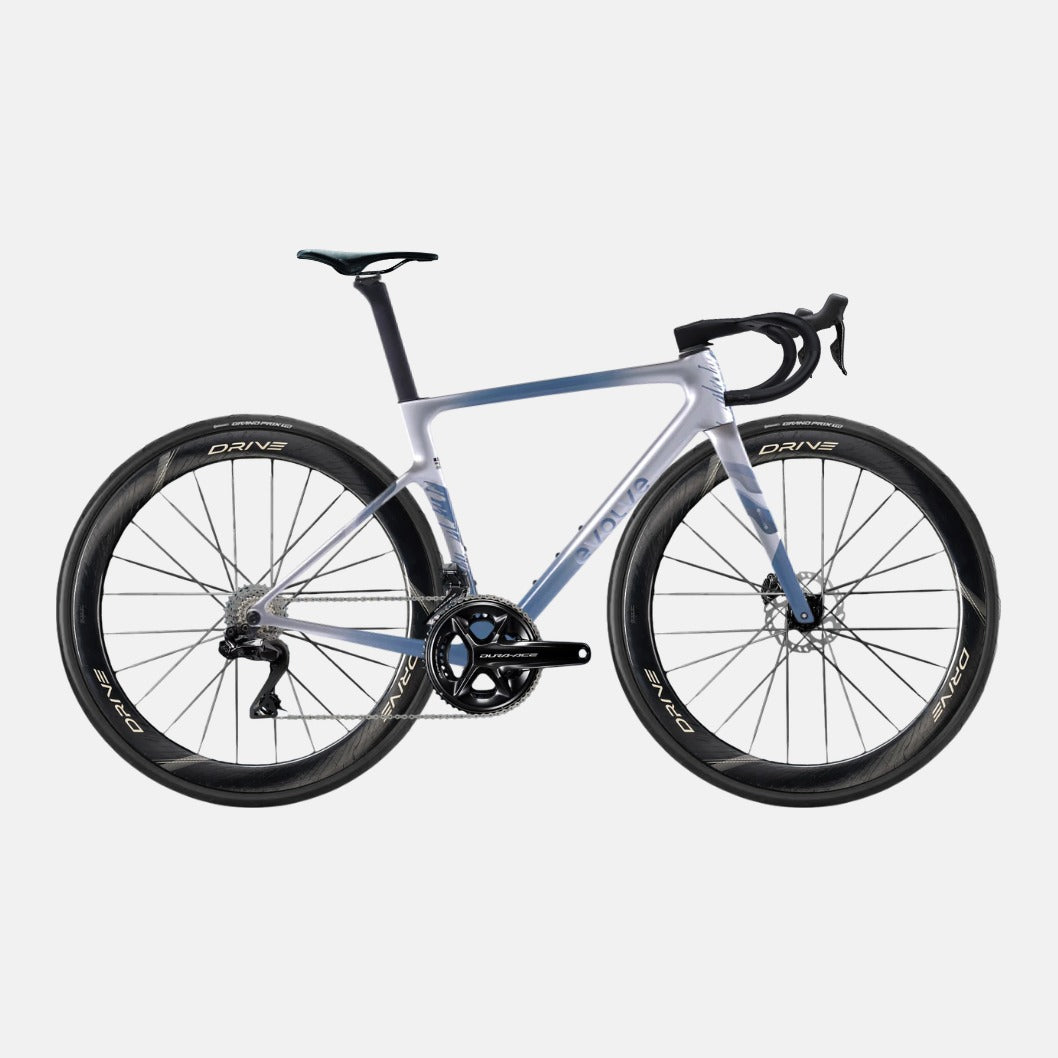

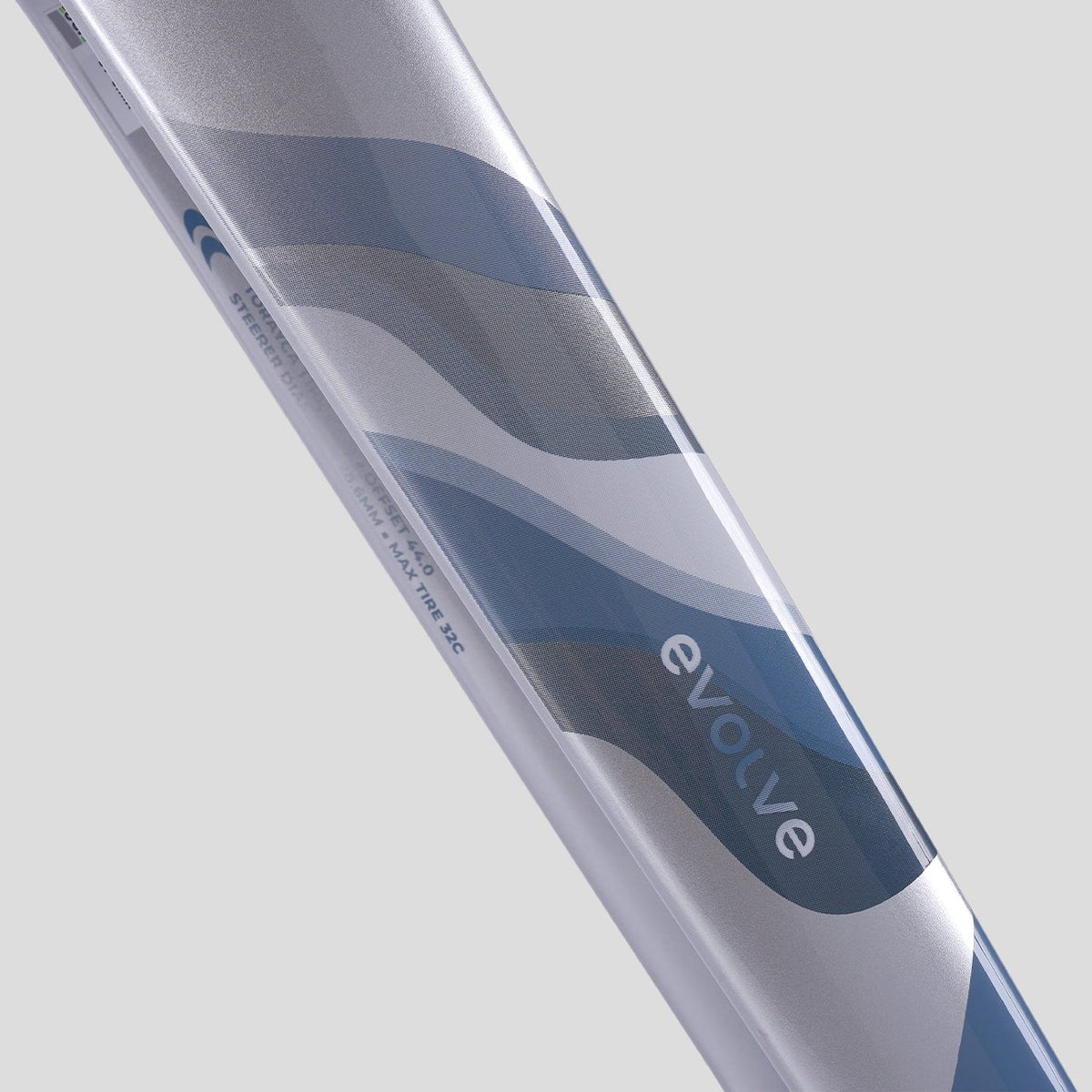

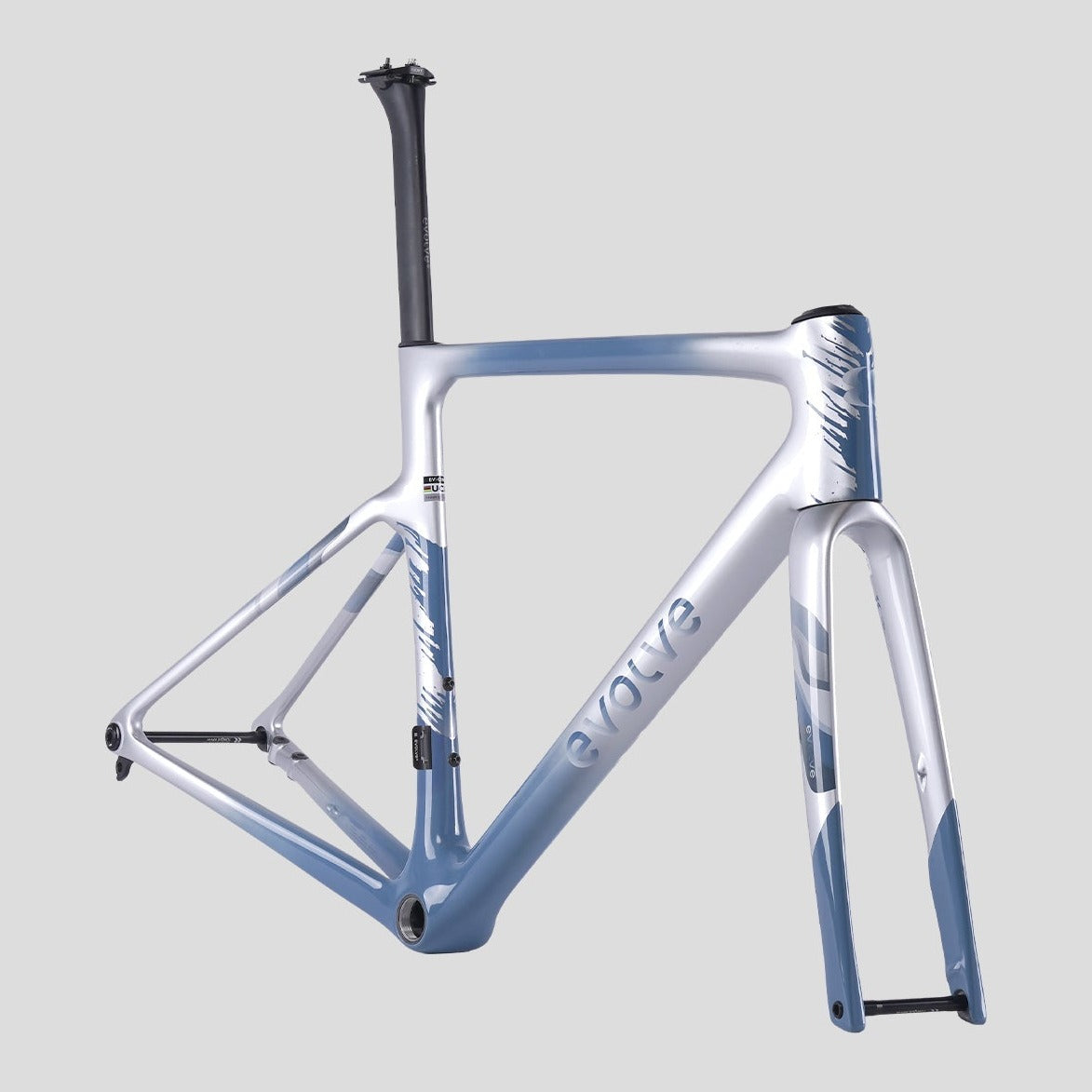

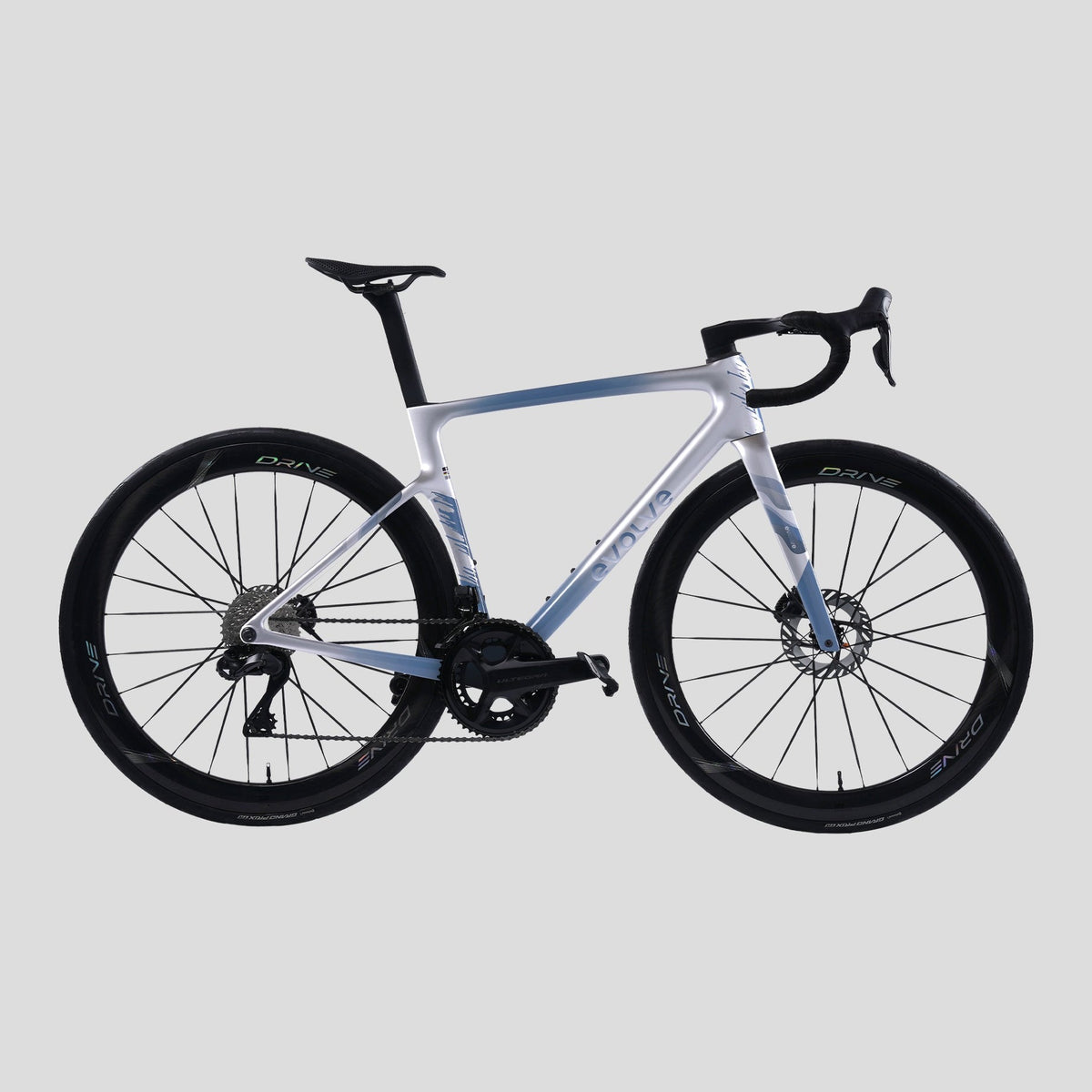

Area Edition: frame 711 g in M (700–780 g from XS to XL) · fork 370 g

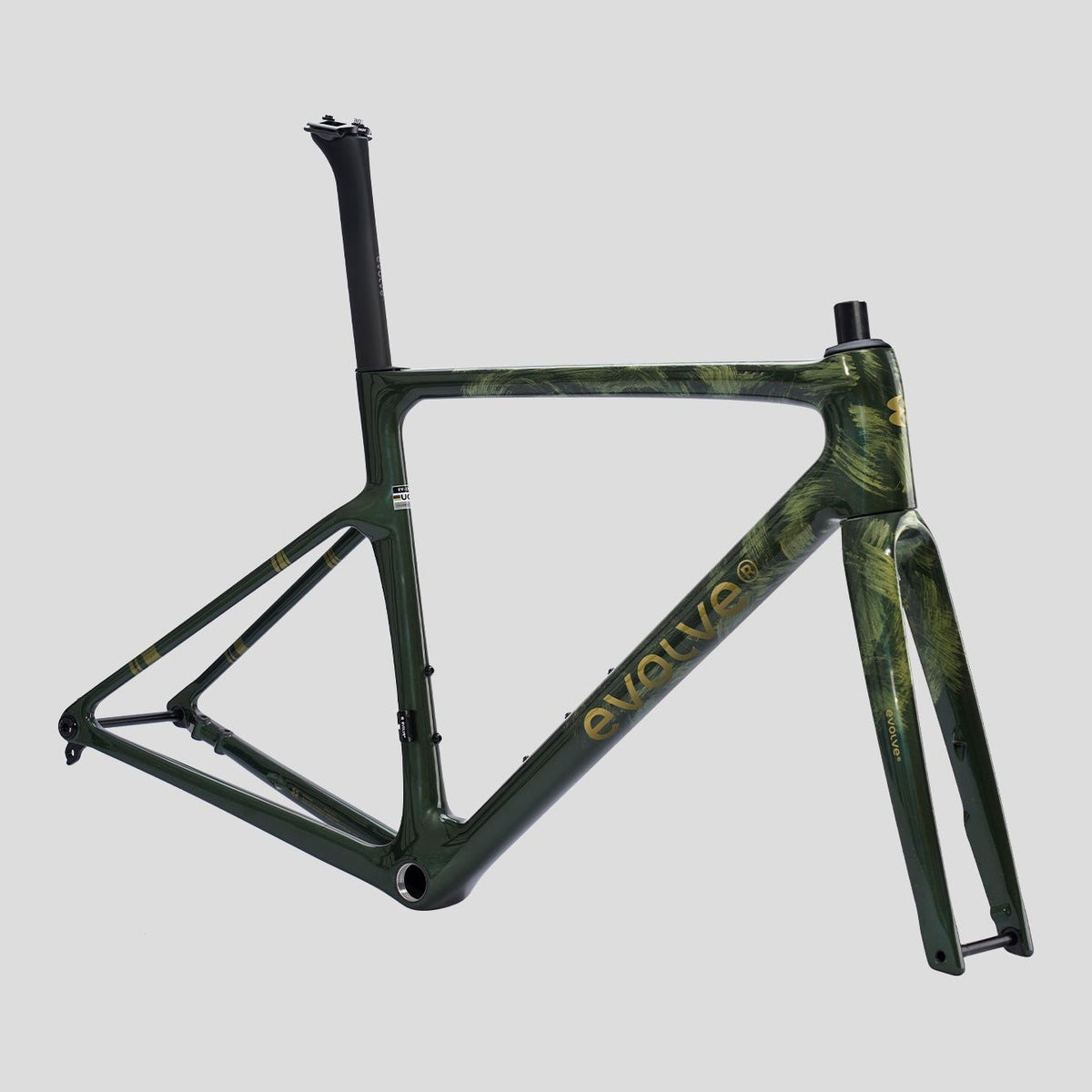

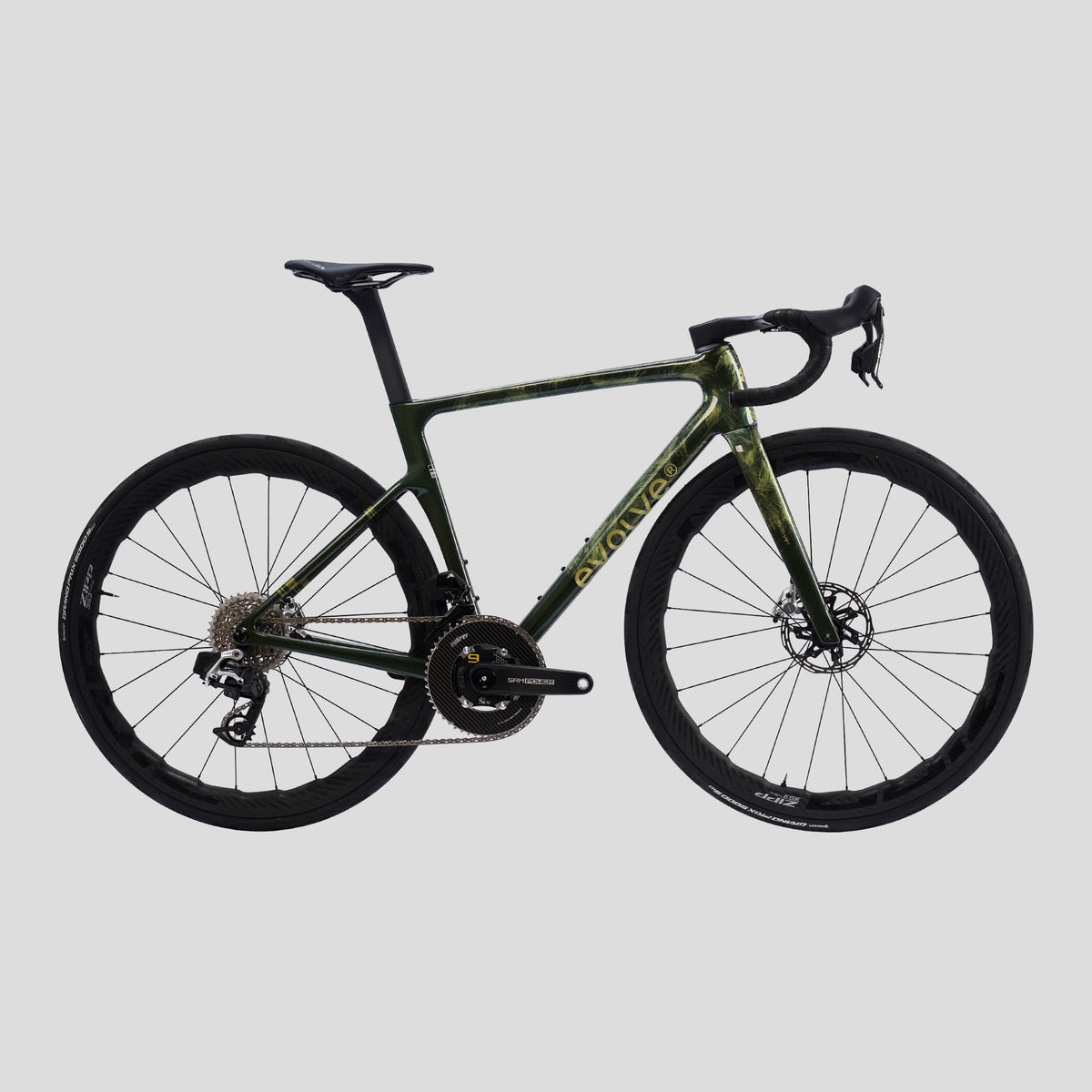

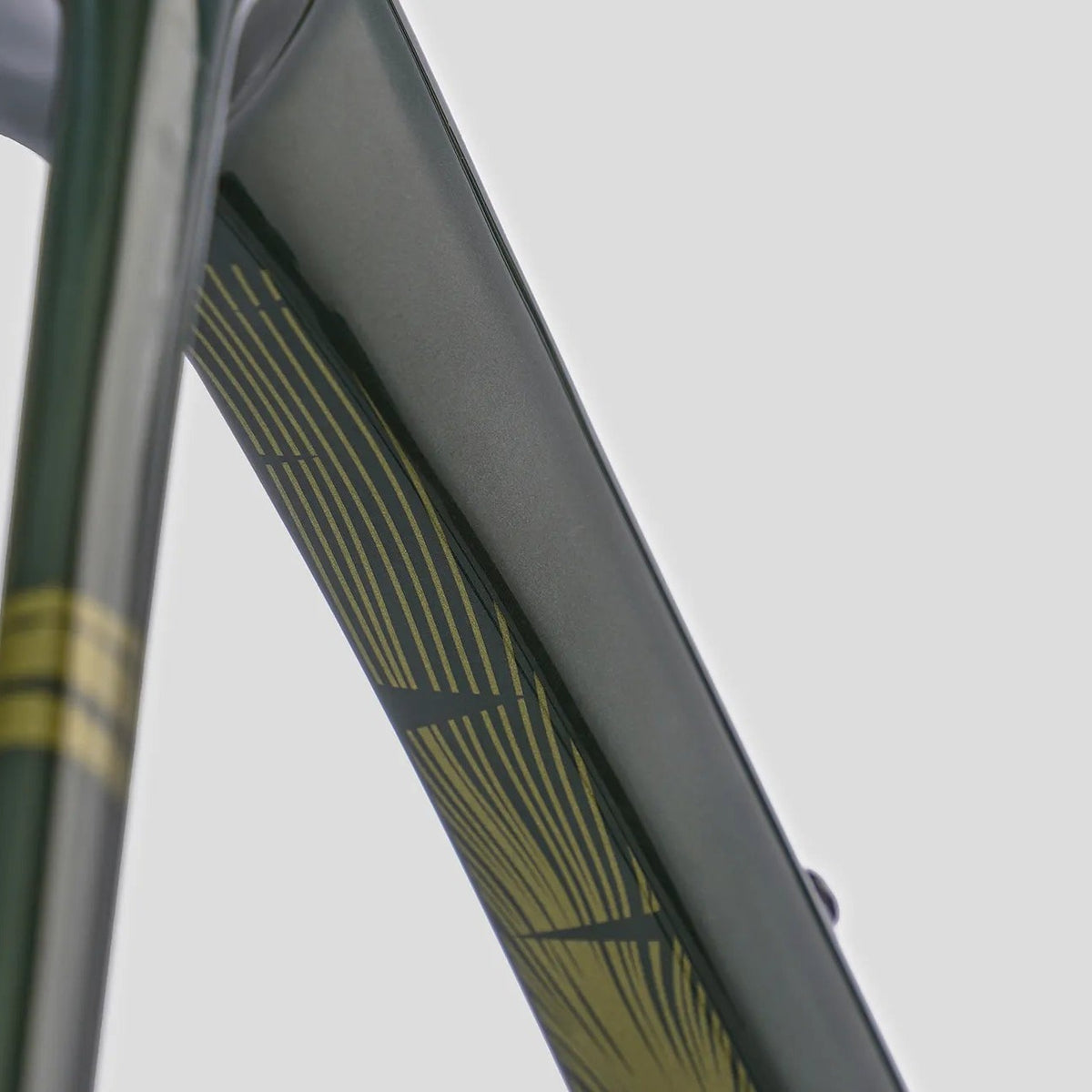

Emerge: frame 716 g in M (705–785 g from XS to XL) · fork 375 g

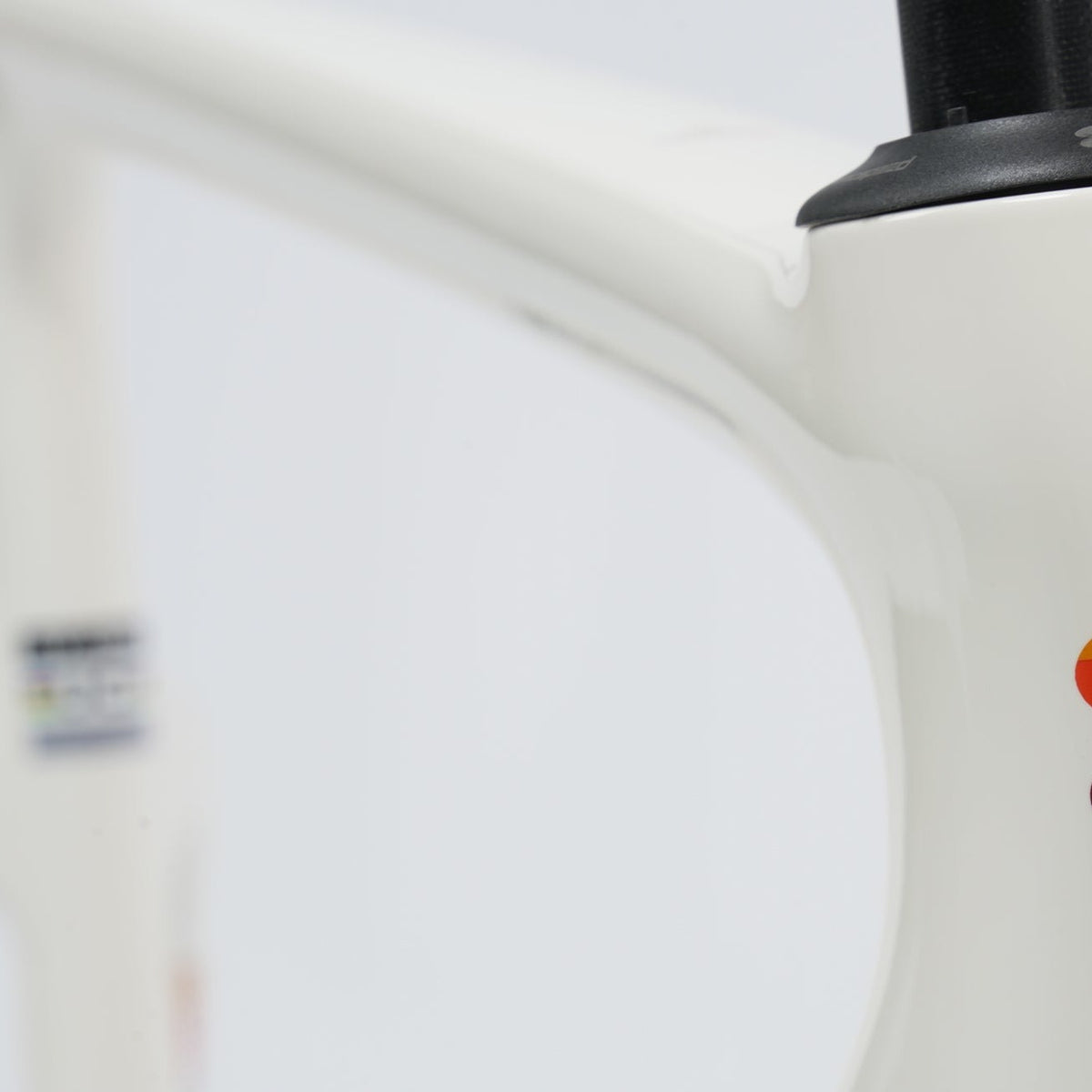

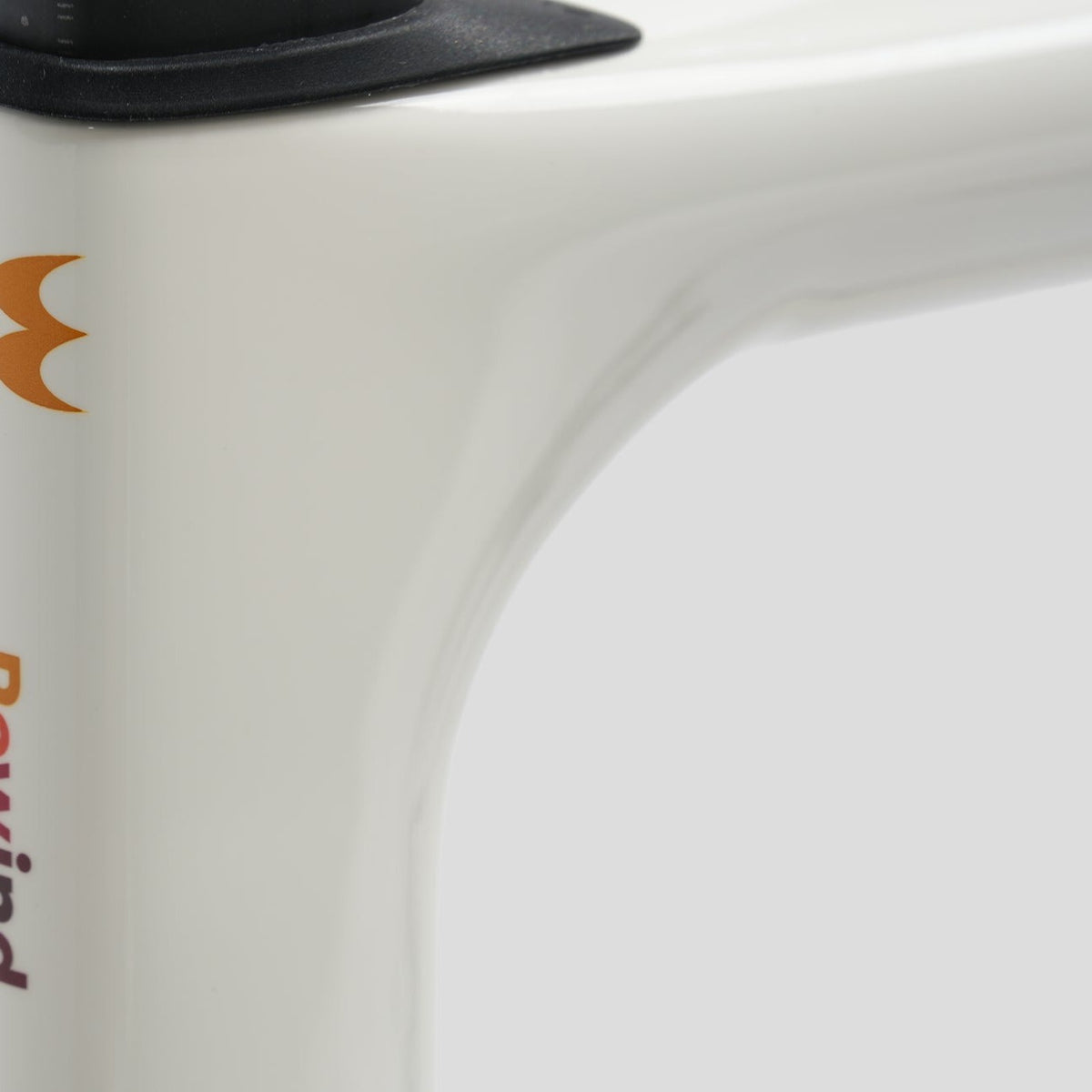

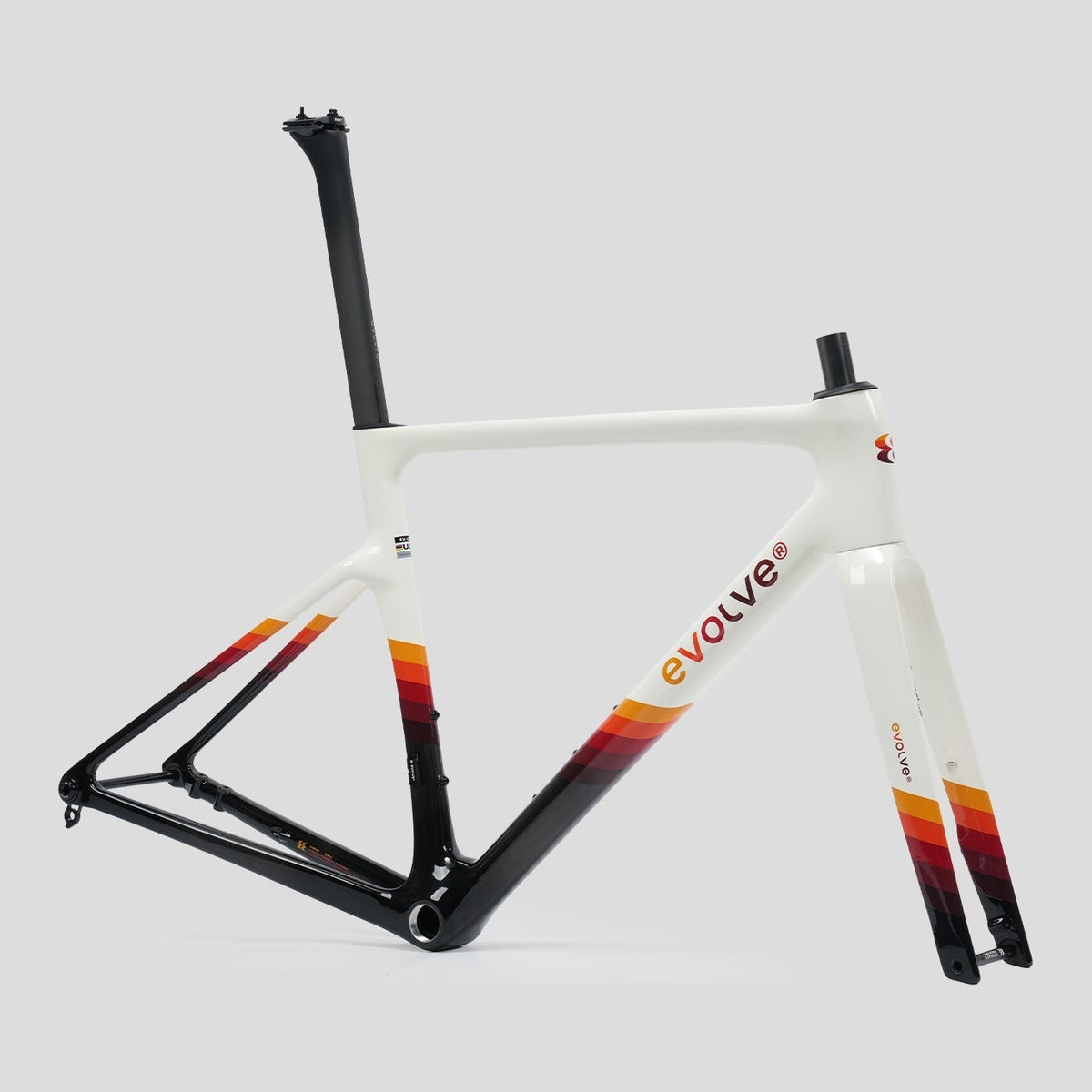

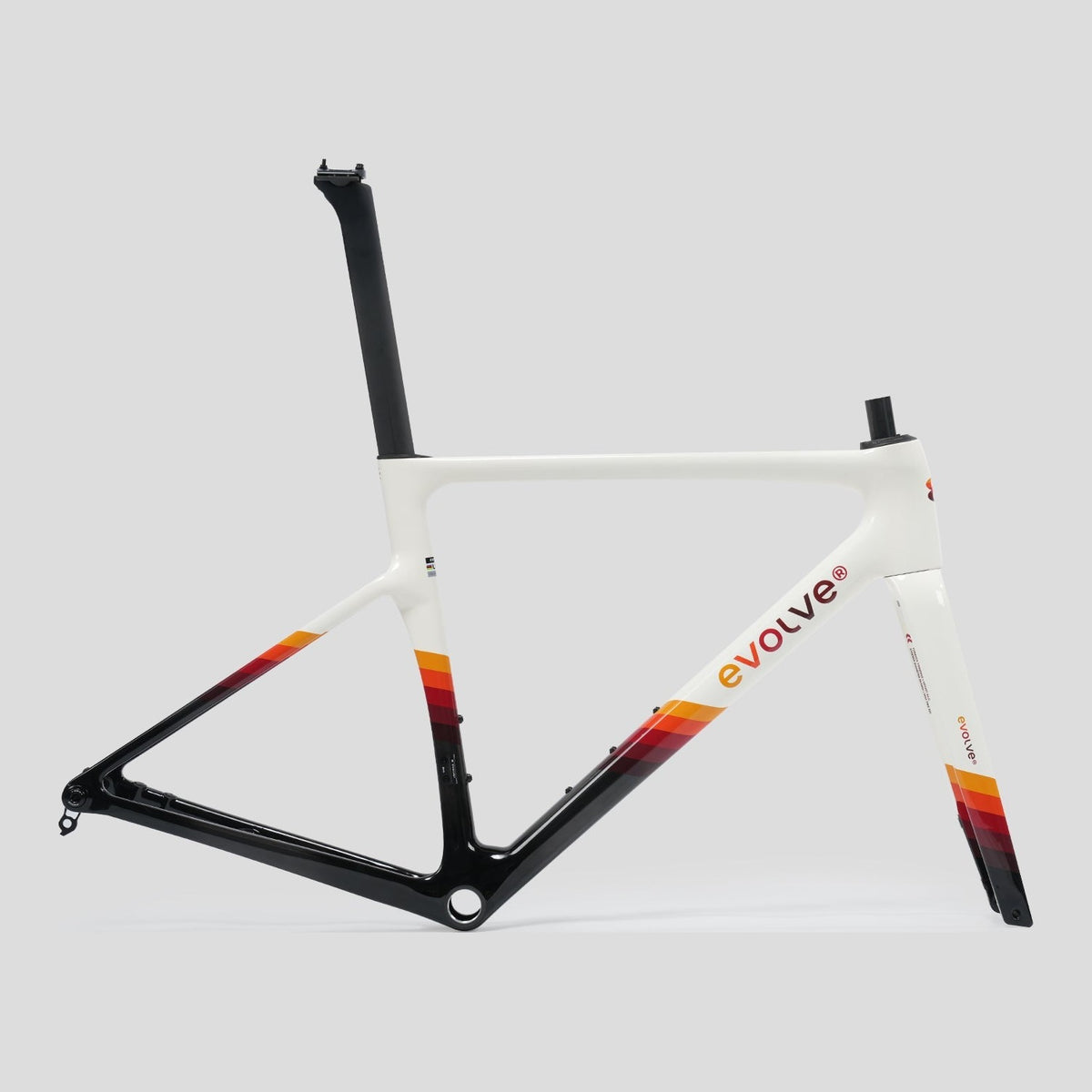

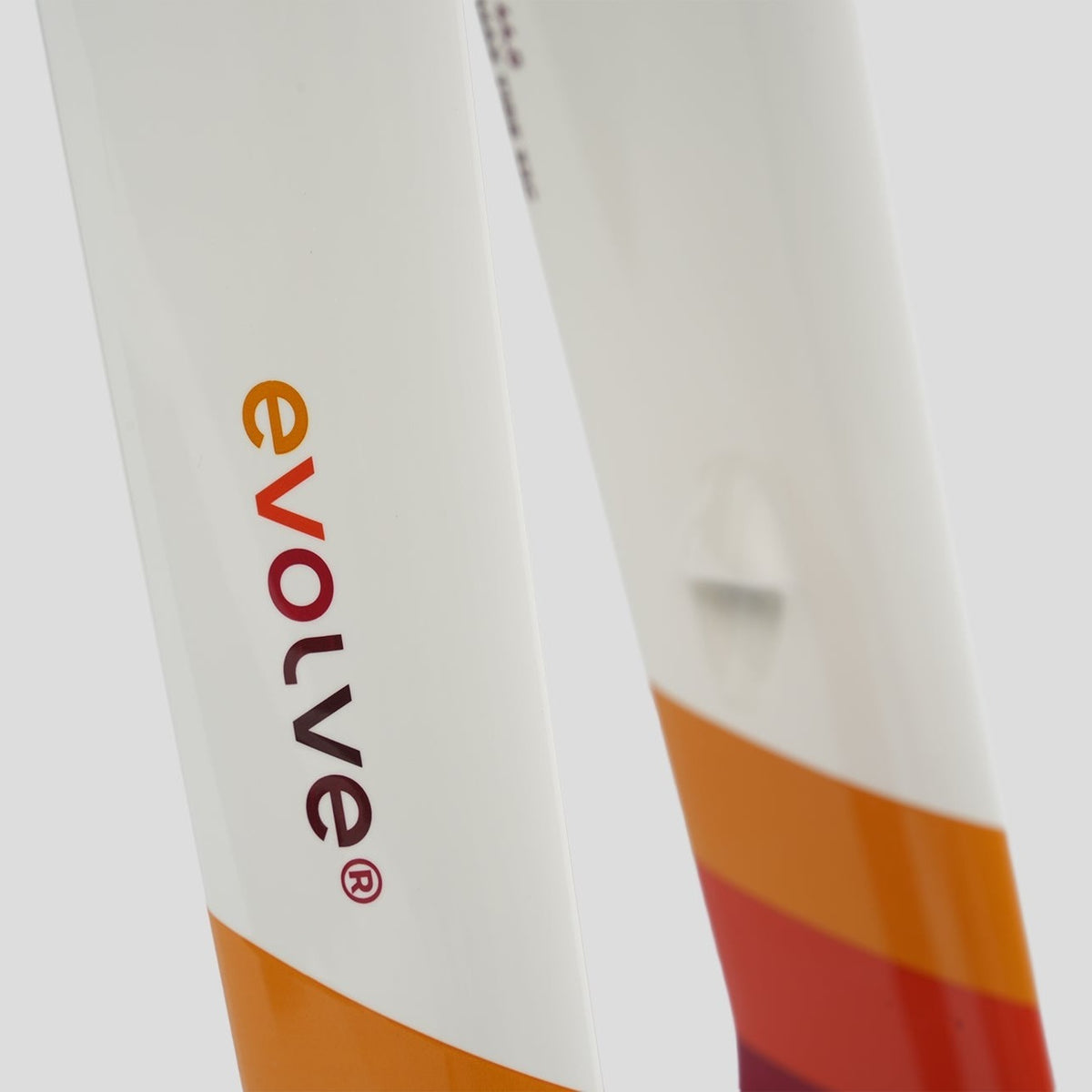

Rewind: frame 721 g in M (710–790 g from XS to XL) · fork 375 g

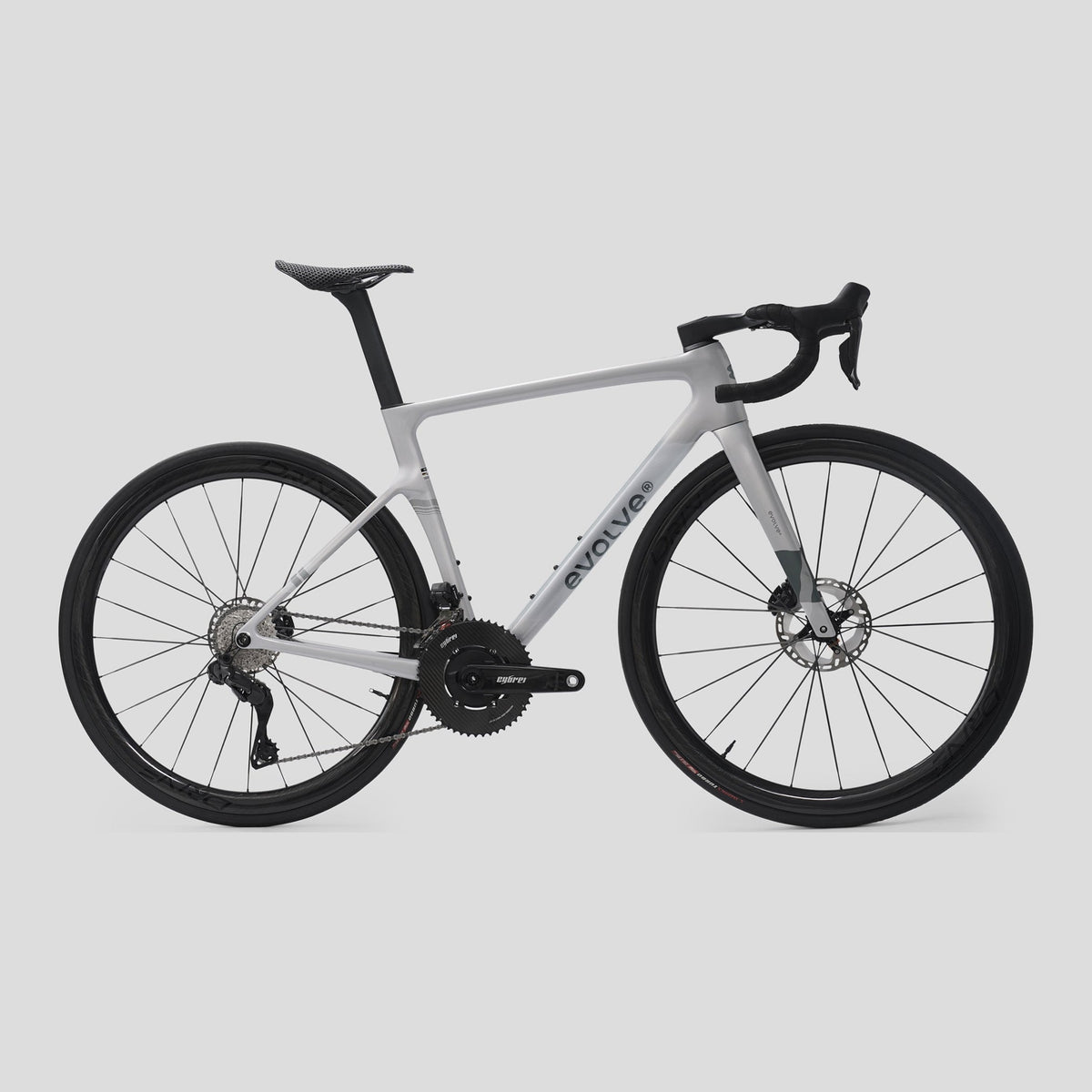

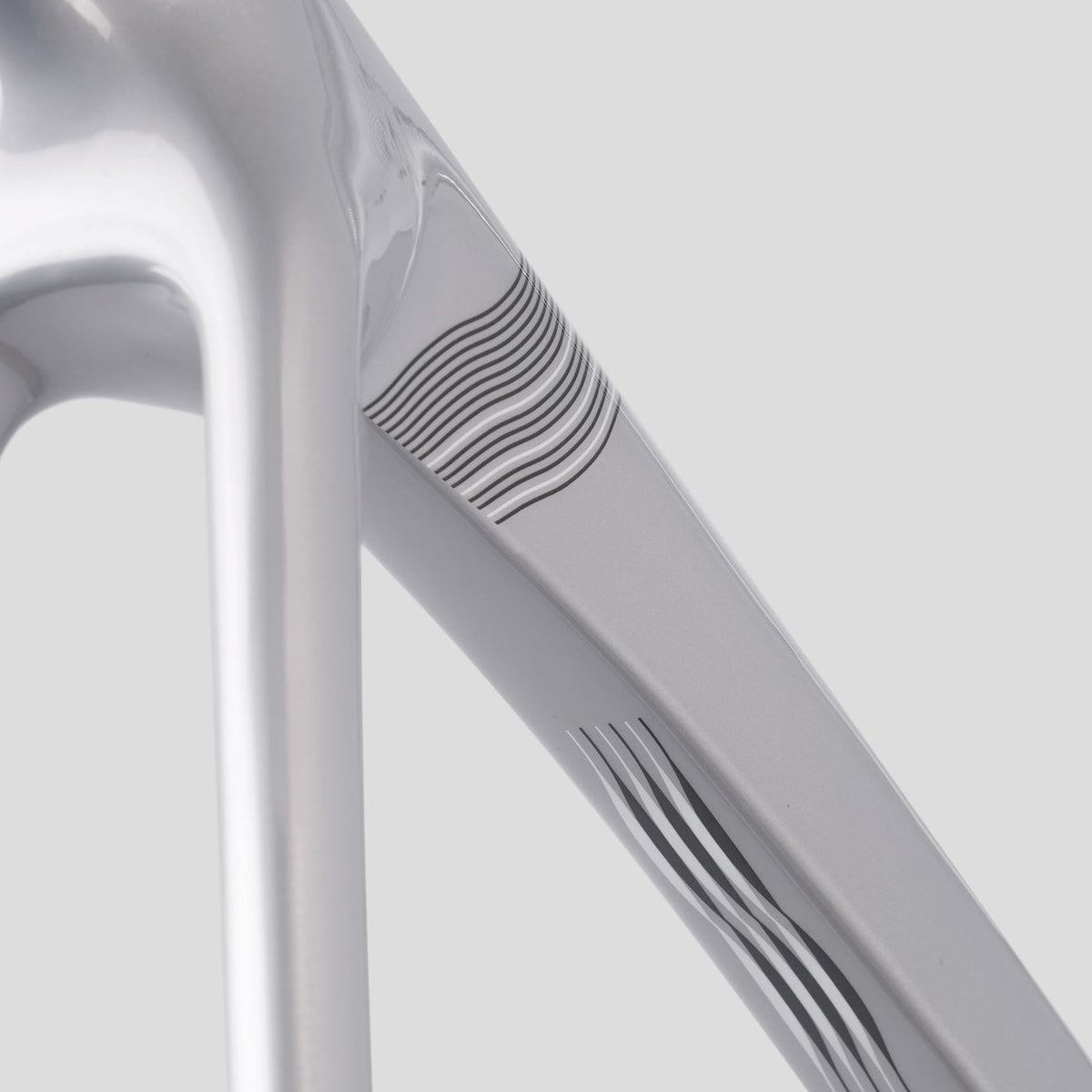

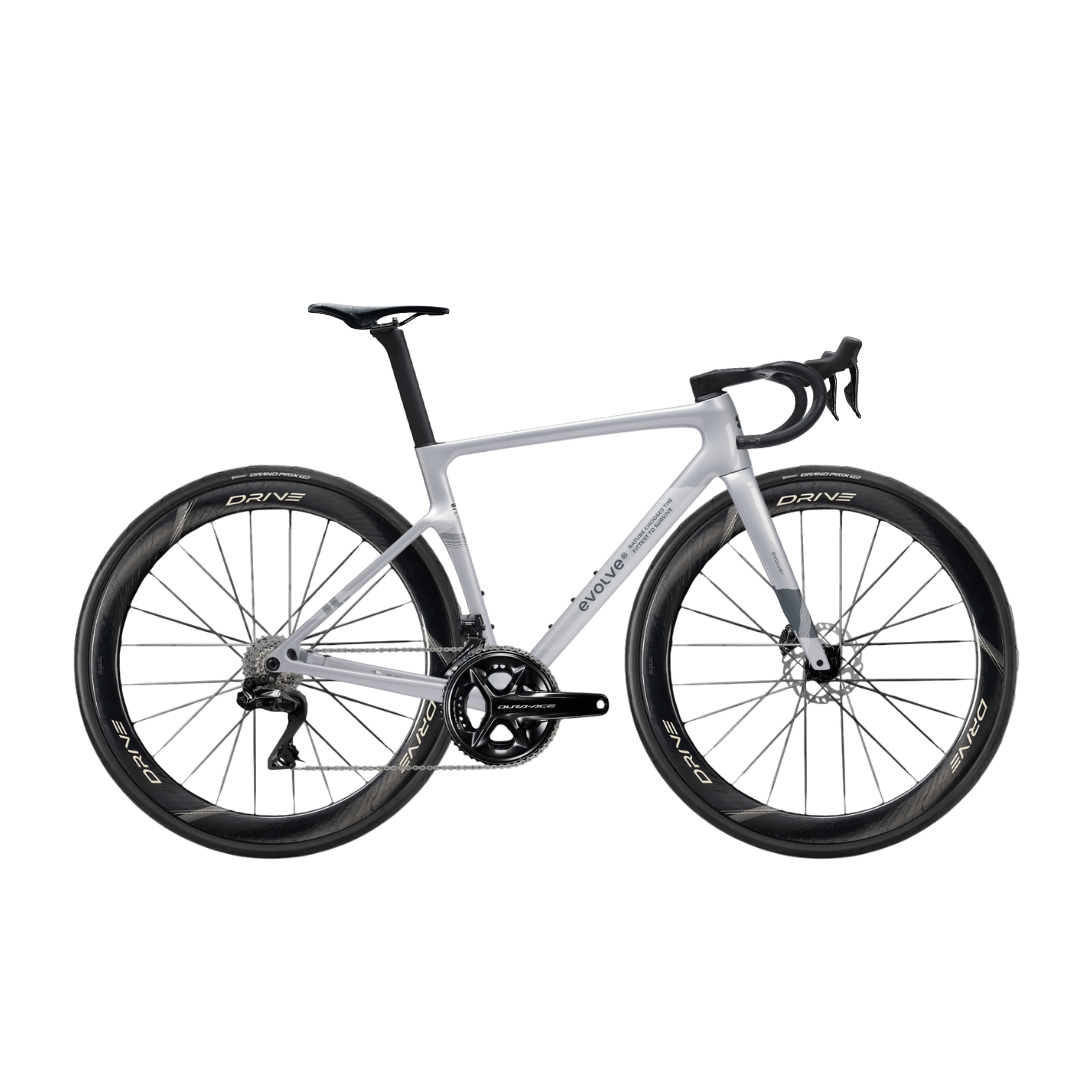

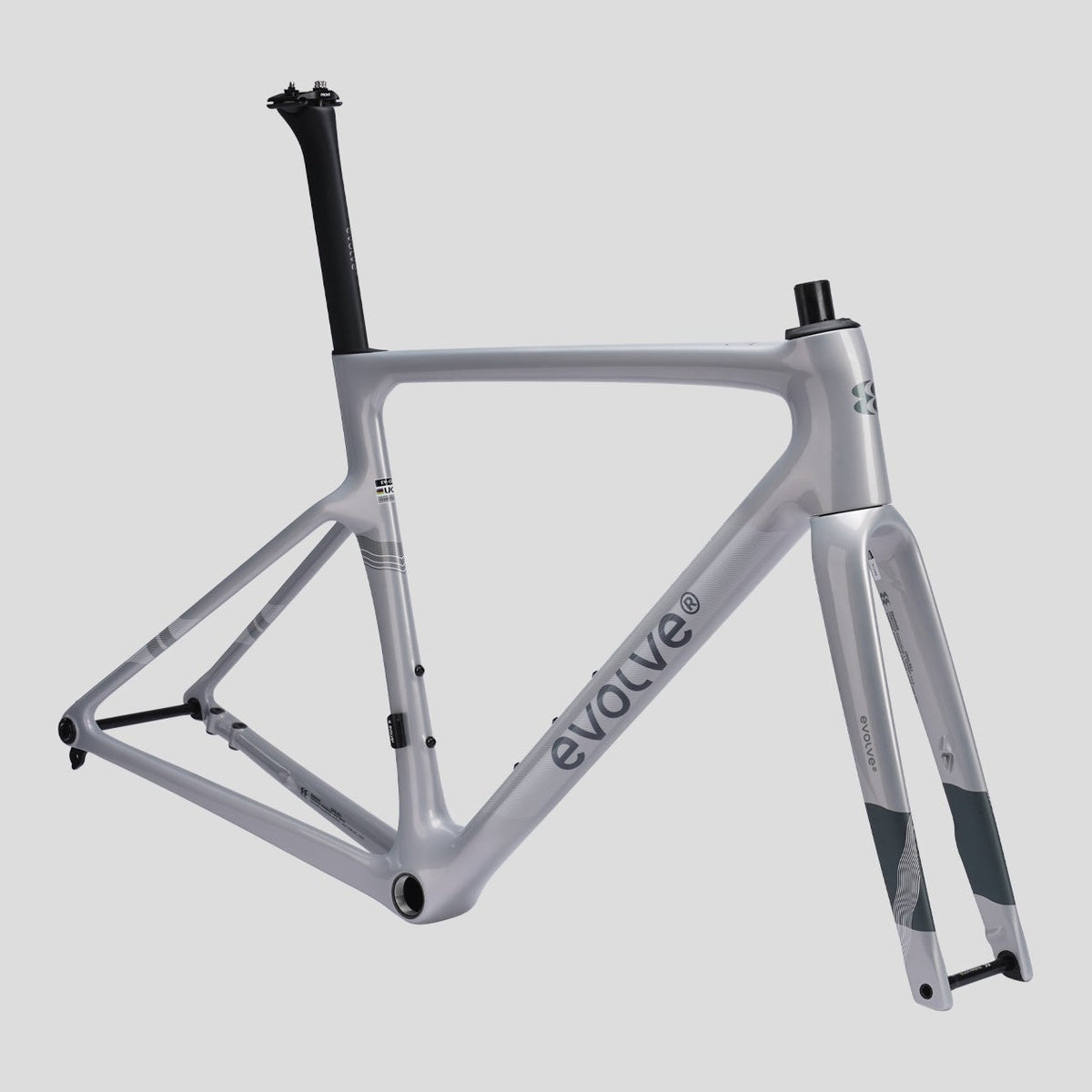

Streams: frame 726 g in M (715–795 g from XS to XL) · fork 375 g

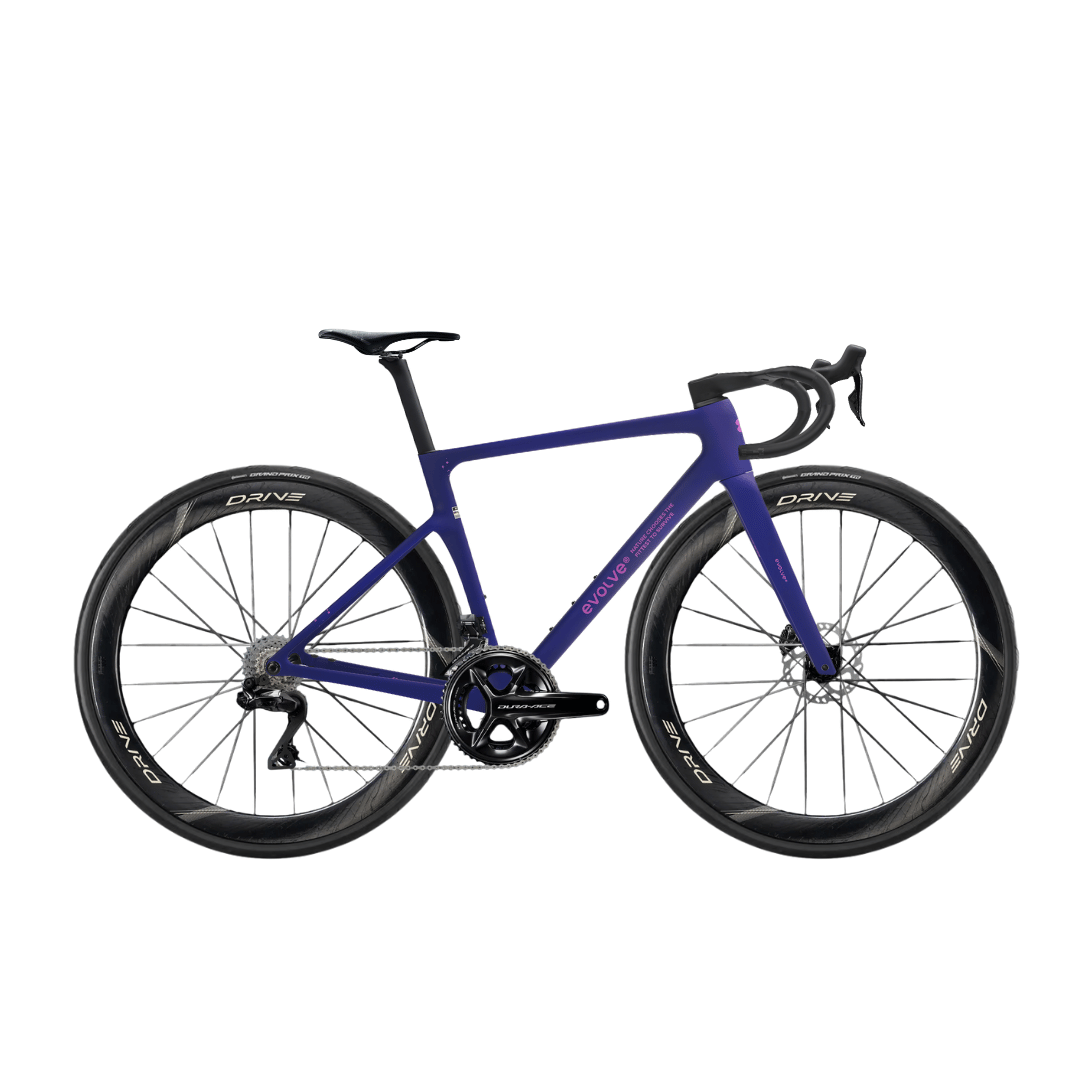

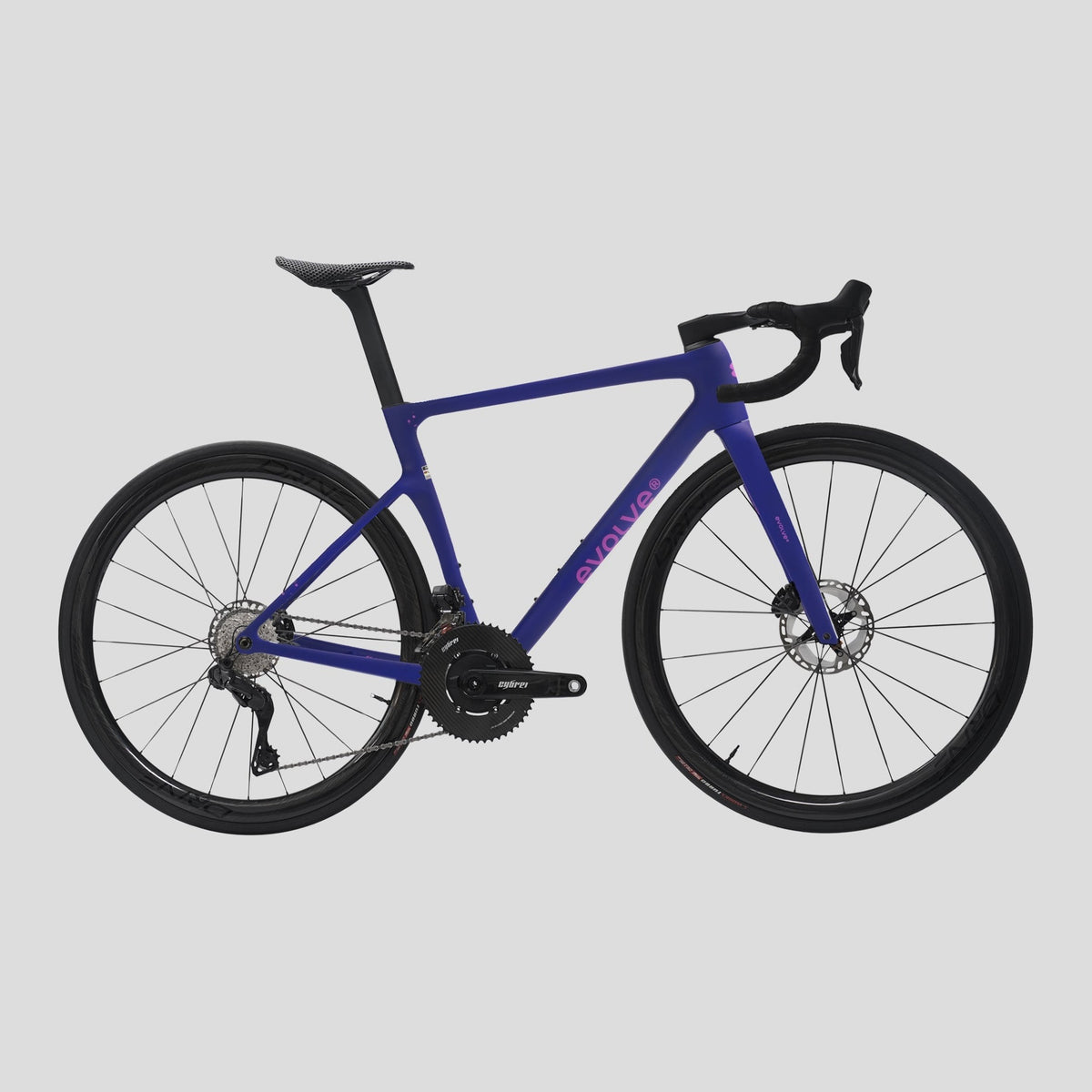

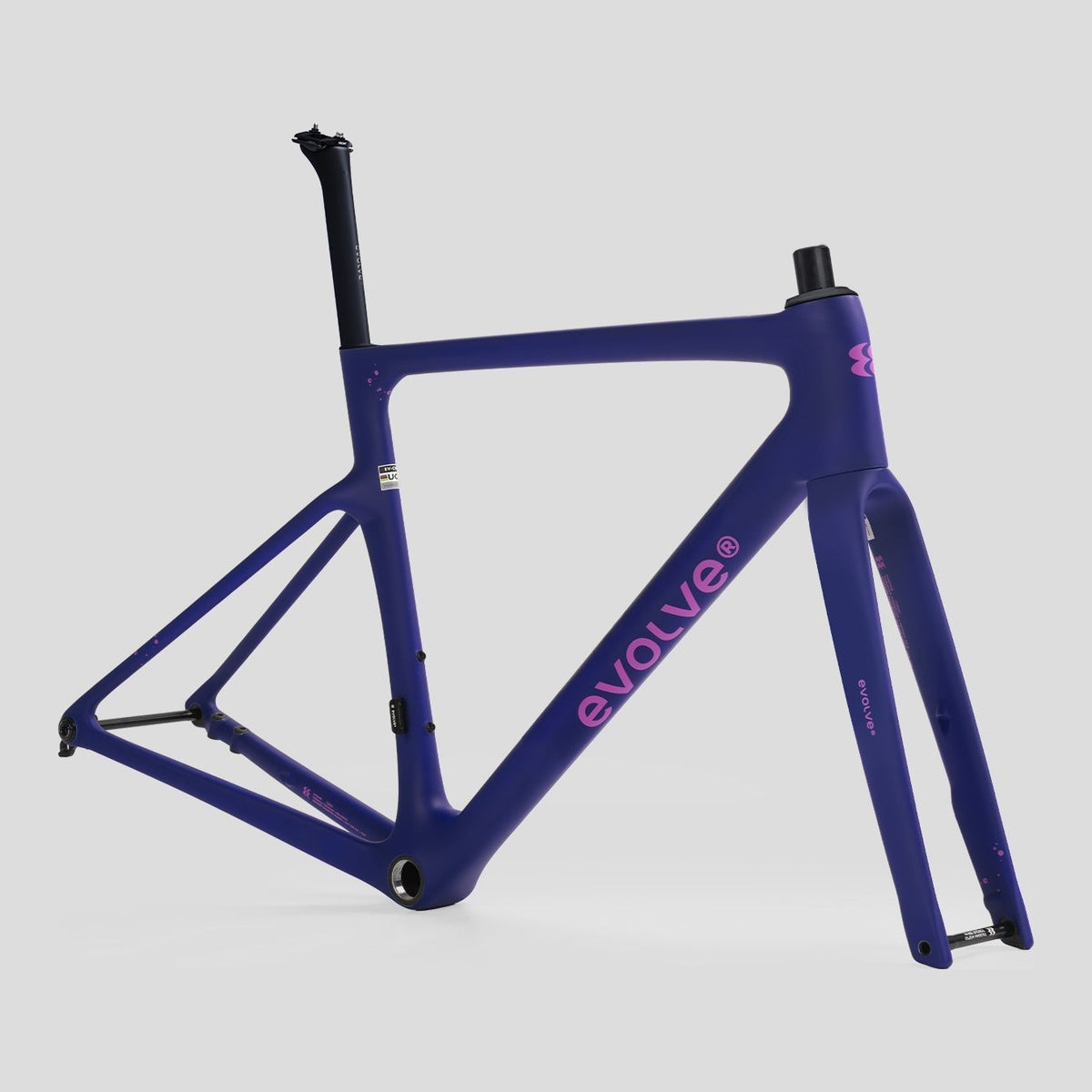

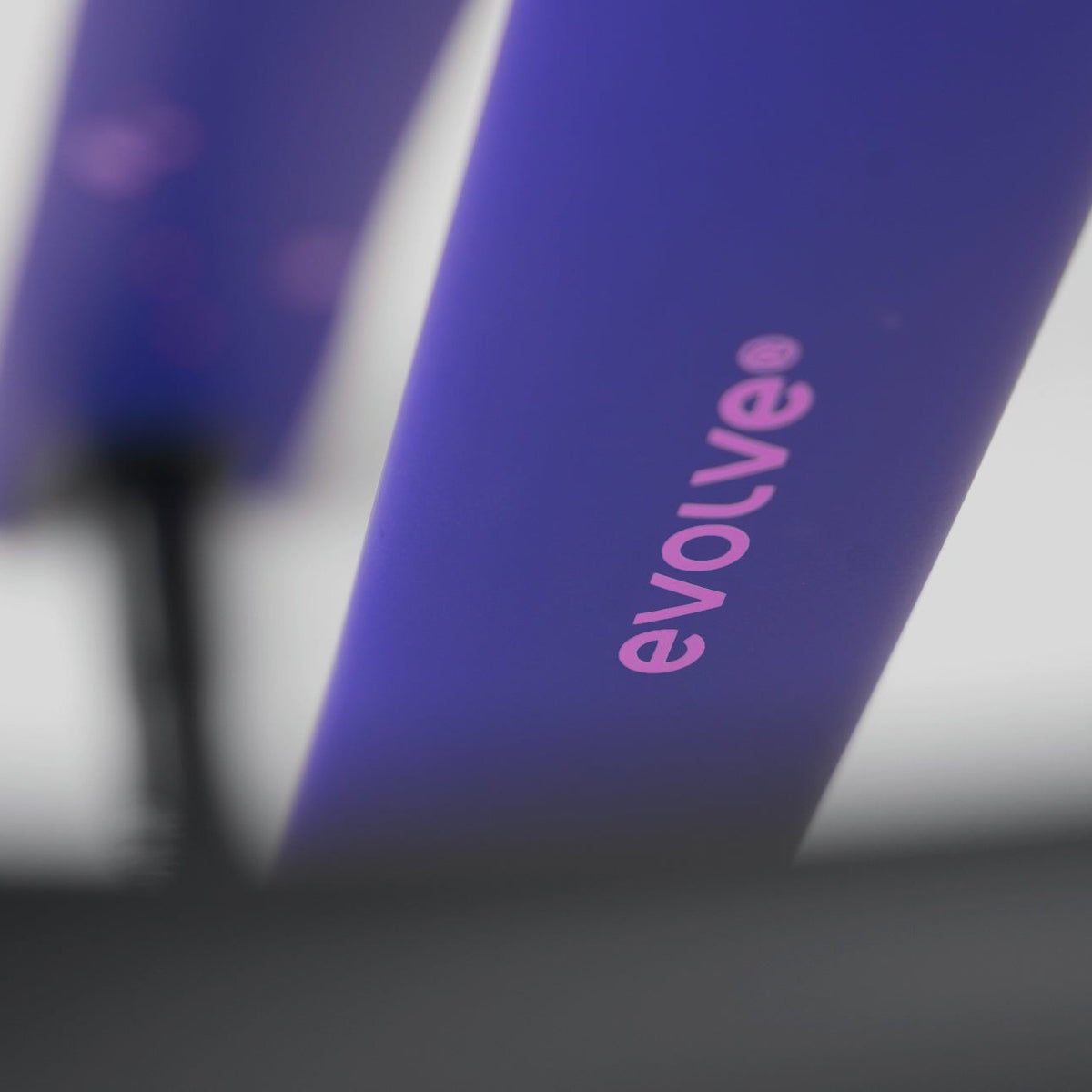

Speed - Adrift: frame 731 g in M (720–800 g from XS to XL) · fork 375 g

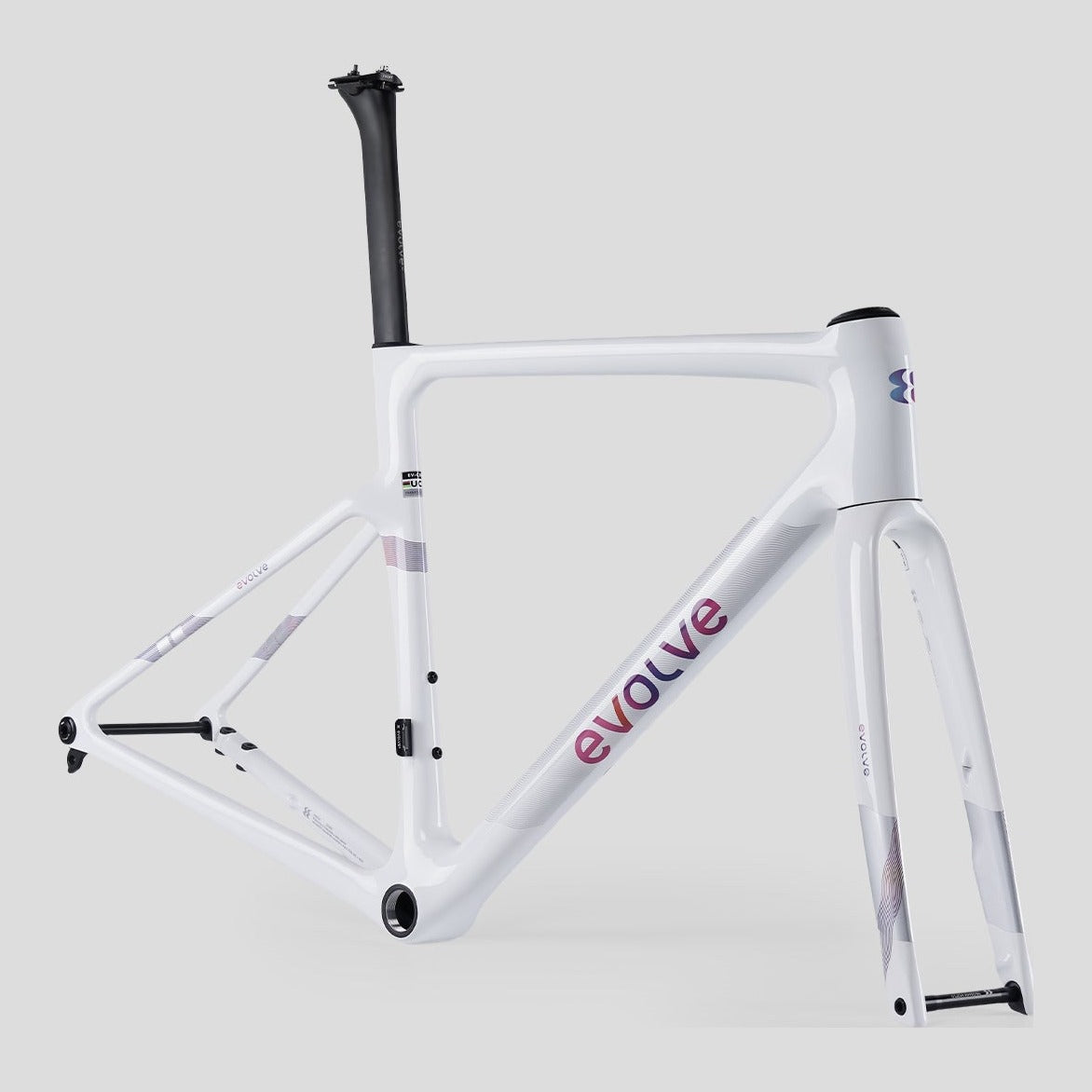

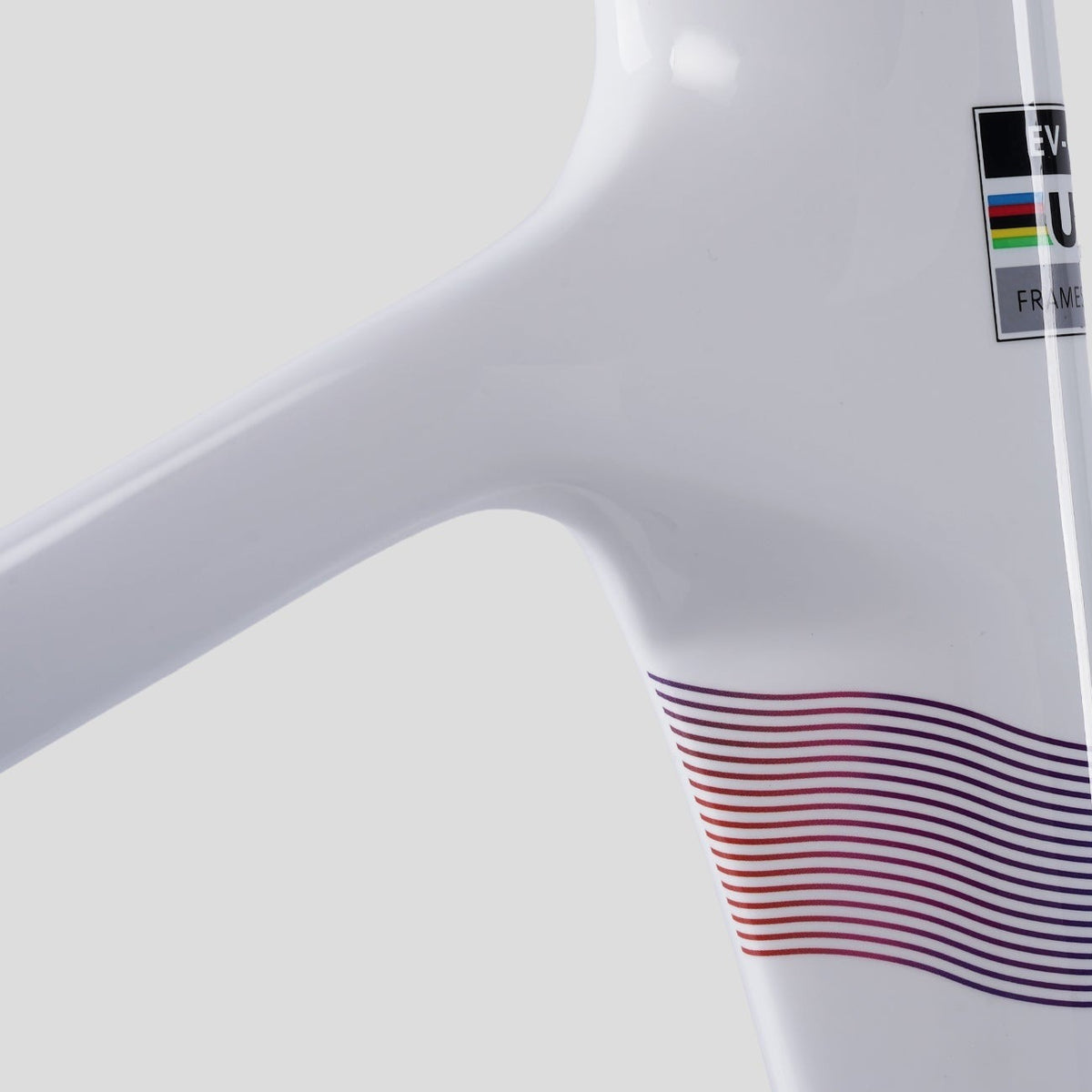

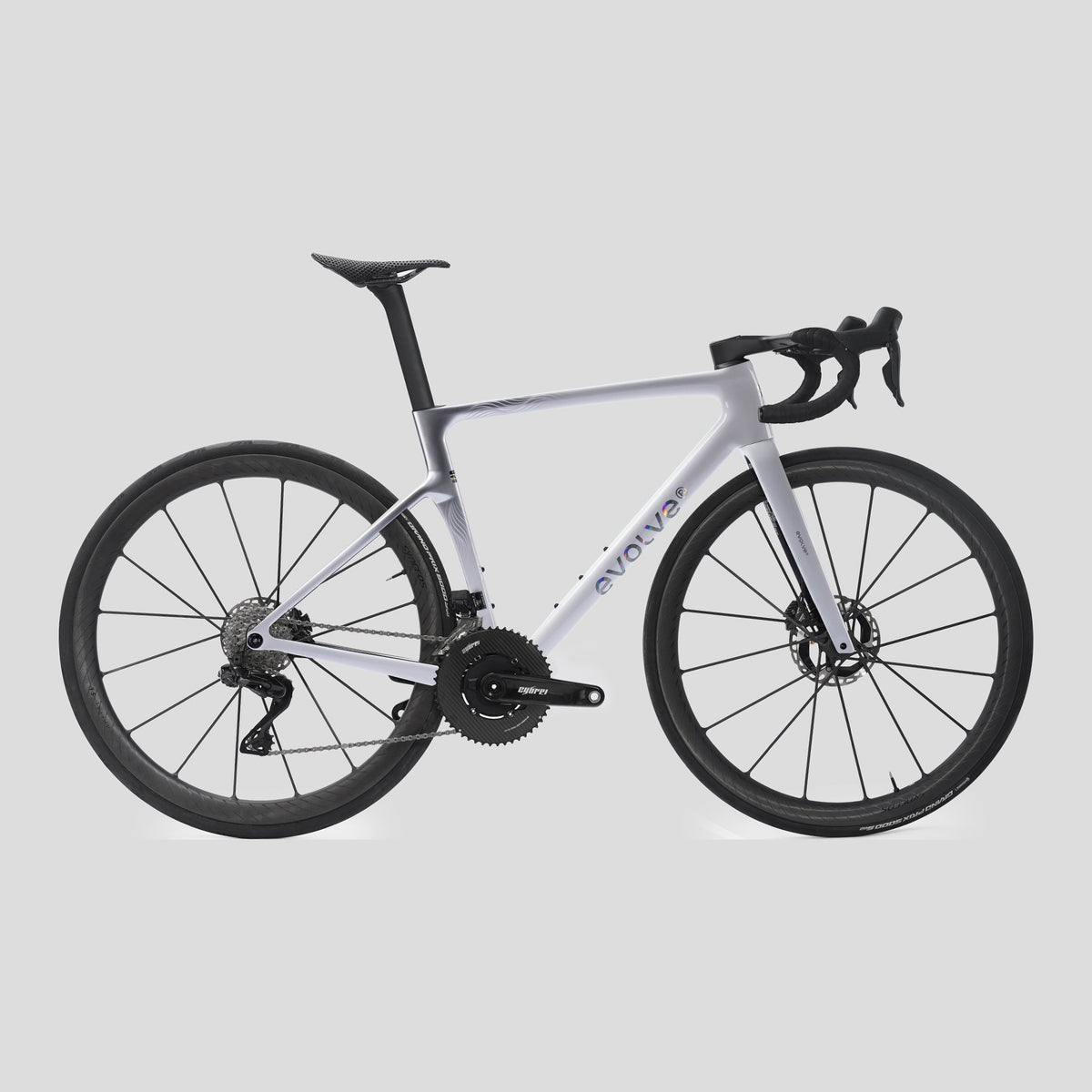

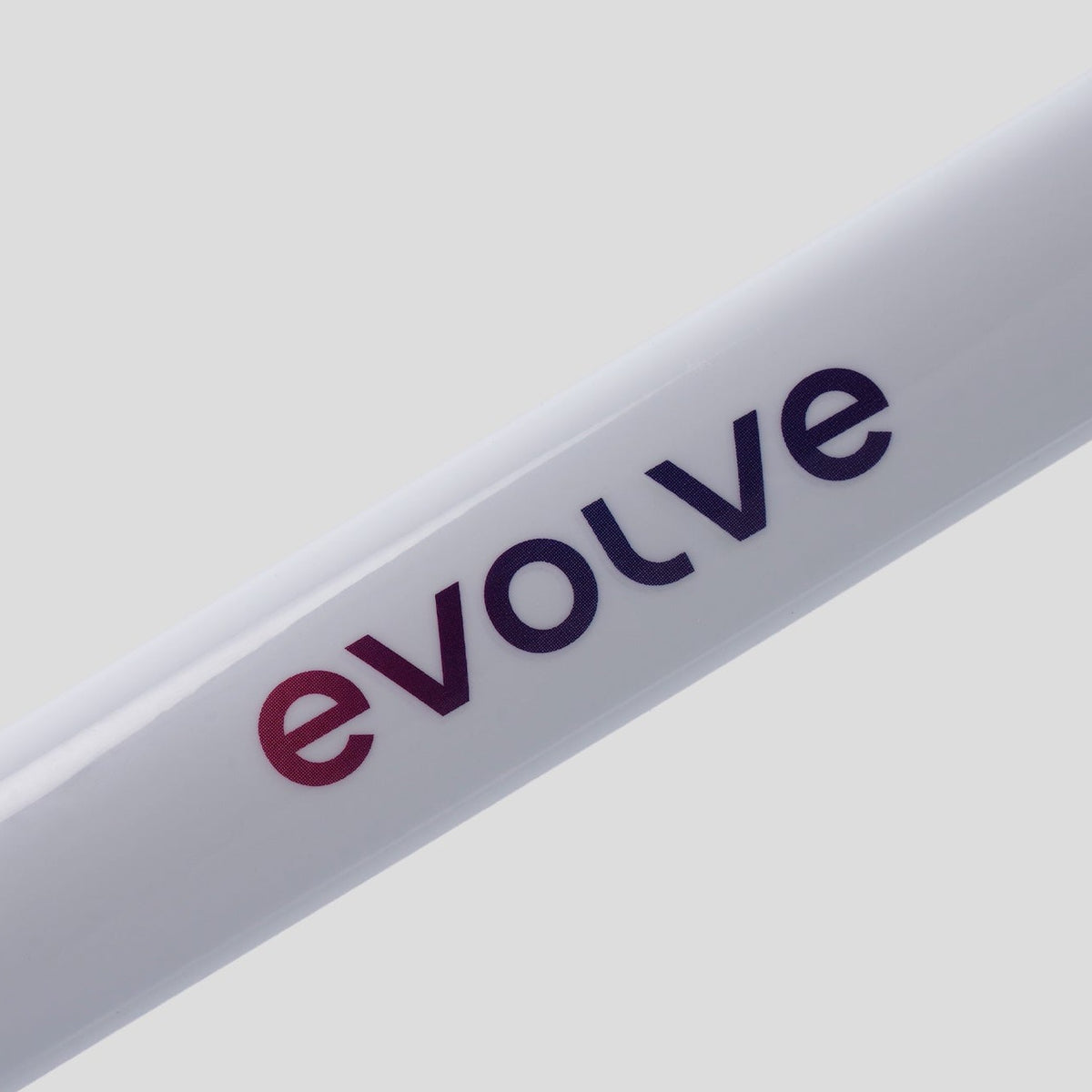

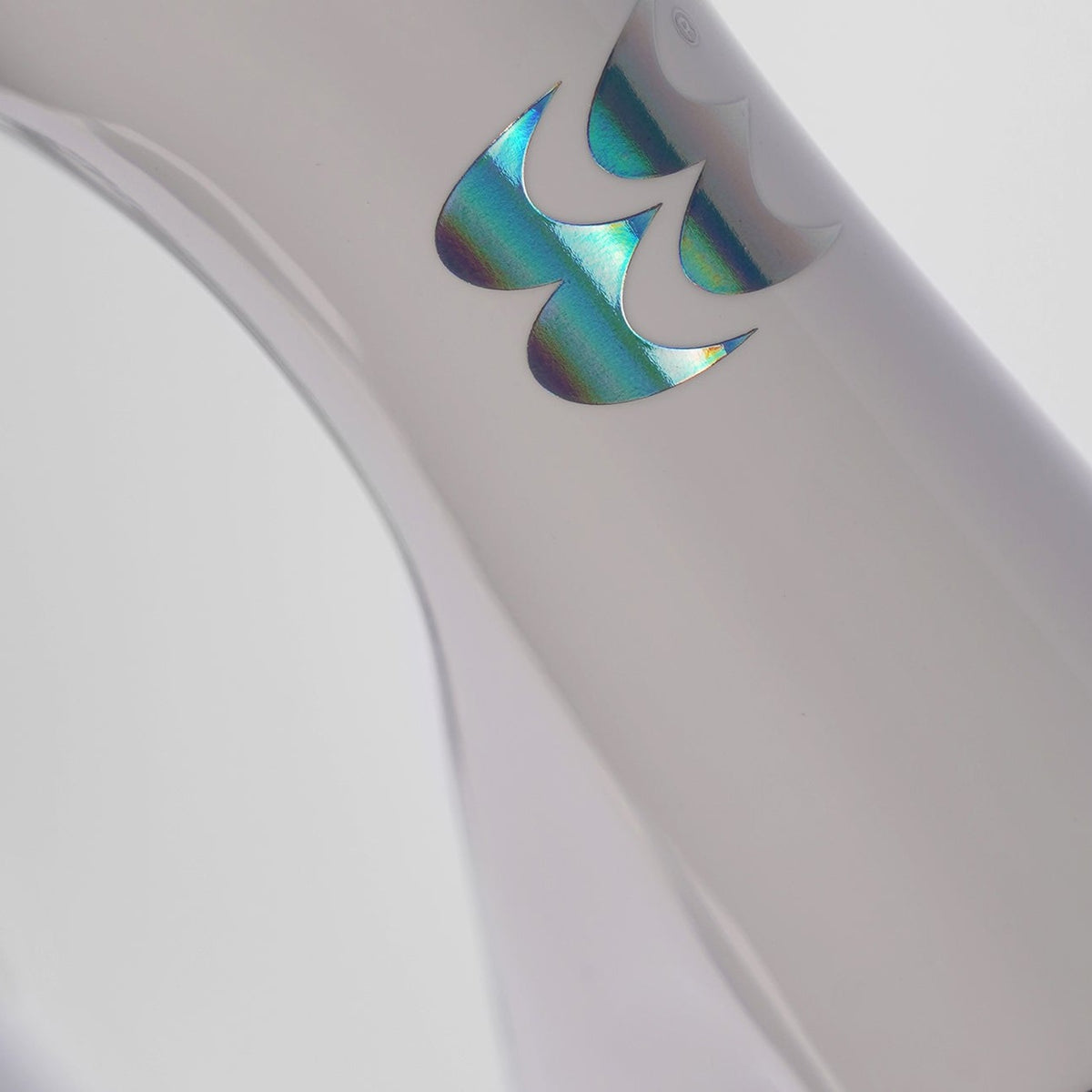

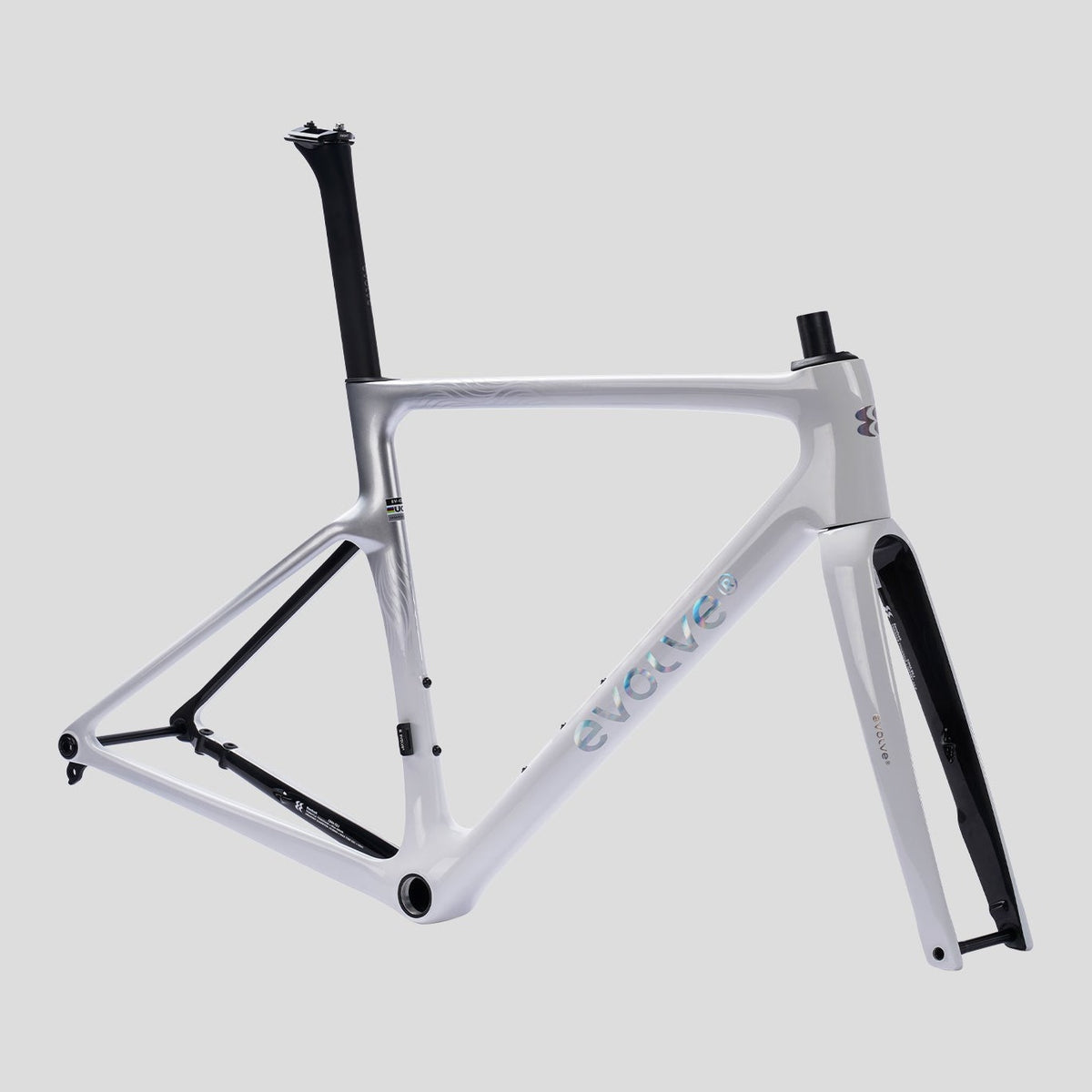

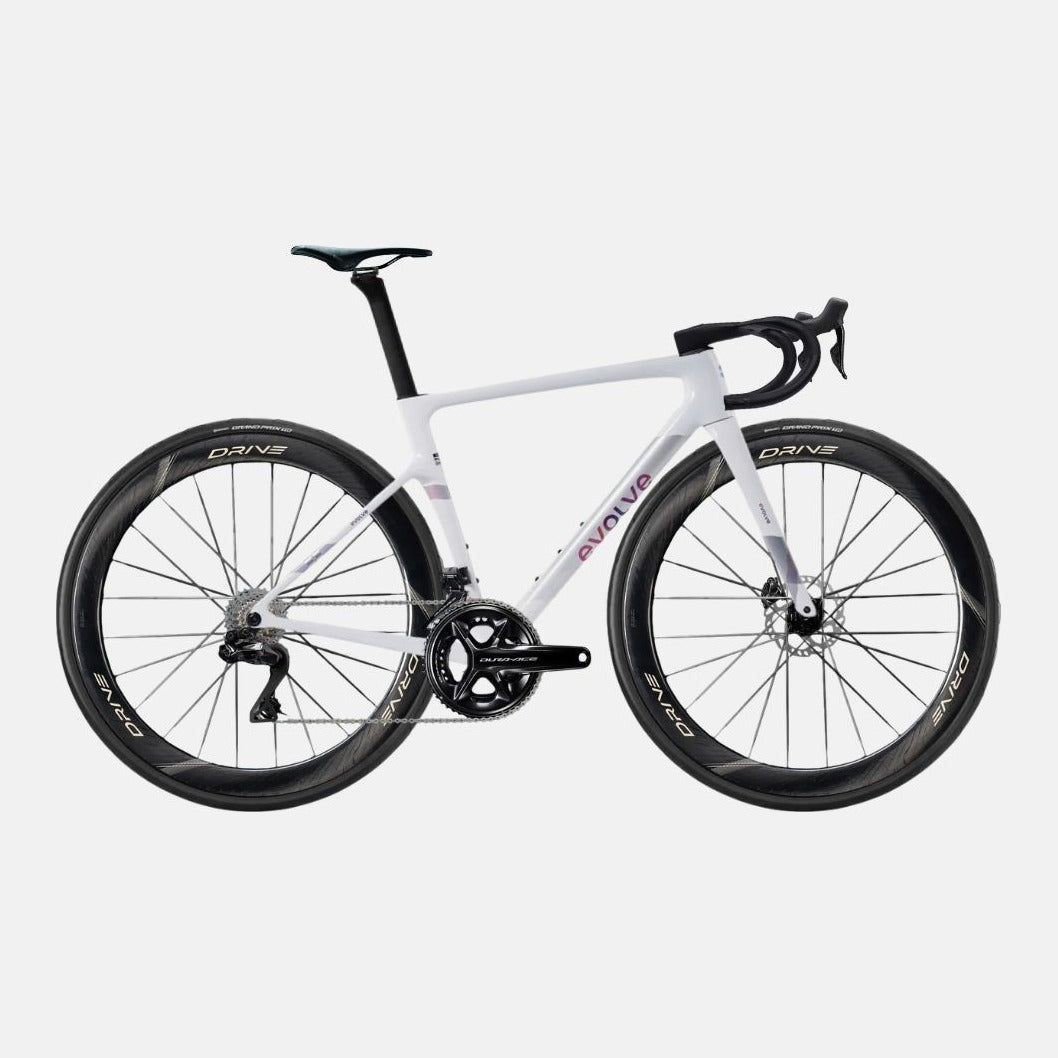

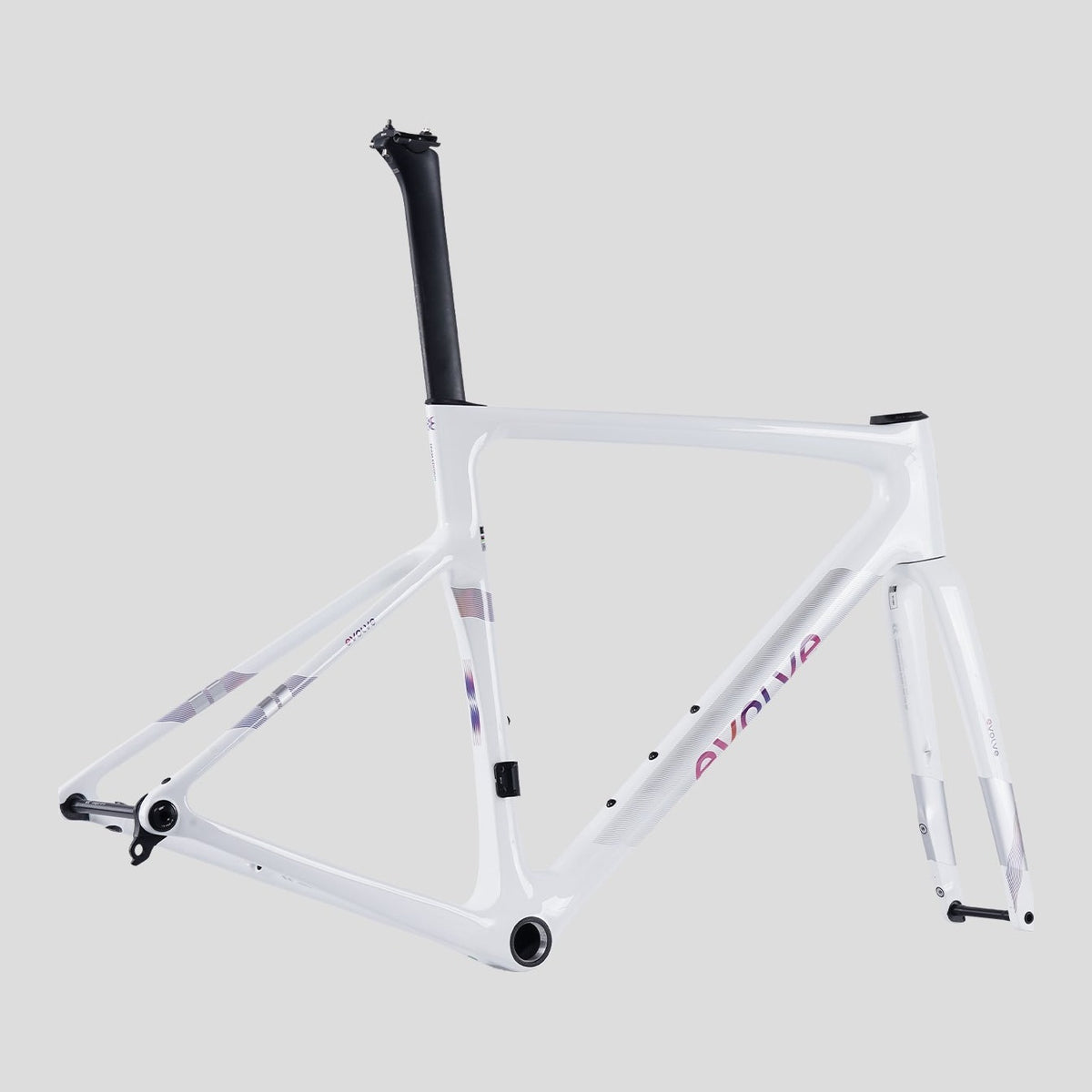

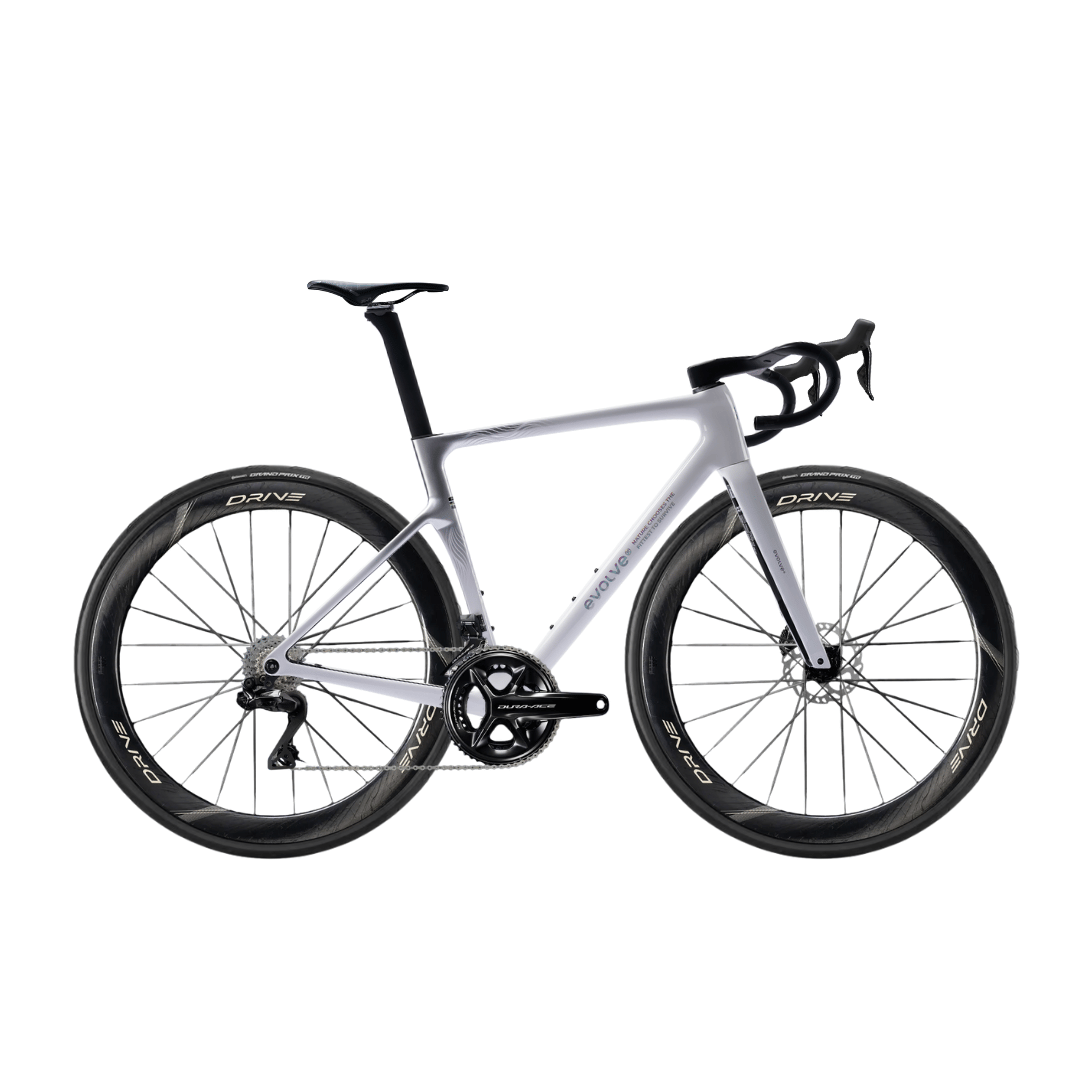

Special Edition - Billow and Team Edition: frame 736 g in M (725–805 g from XS to XL) · fork 370 g

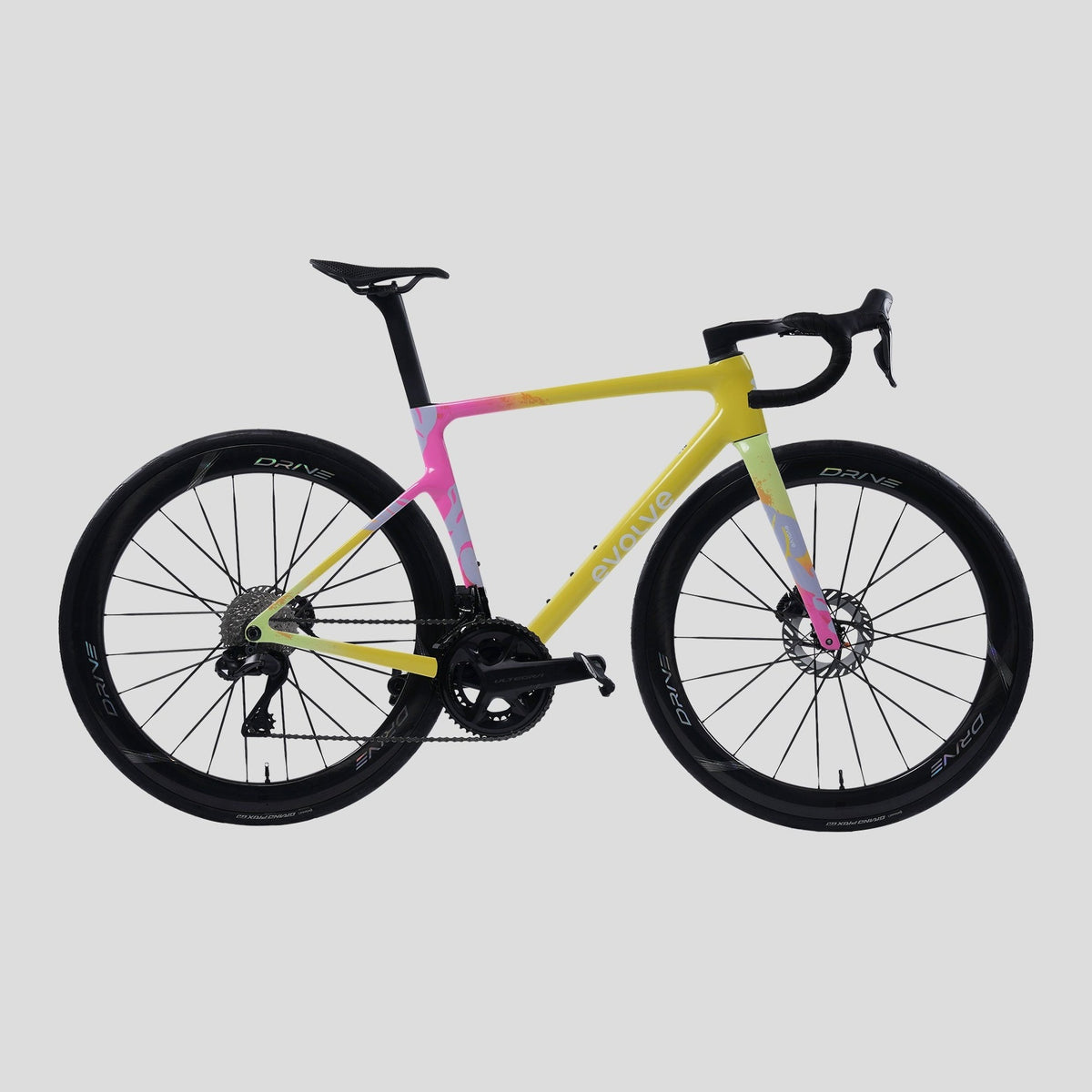

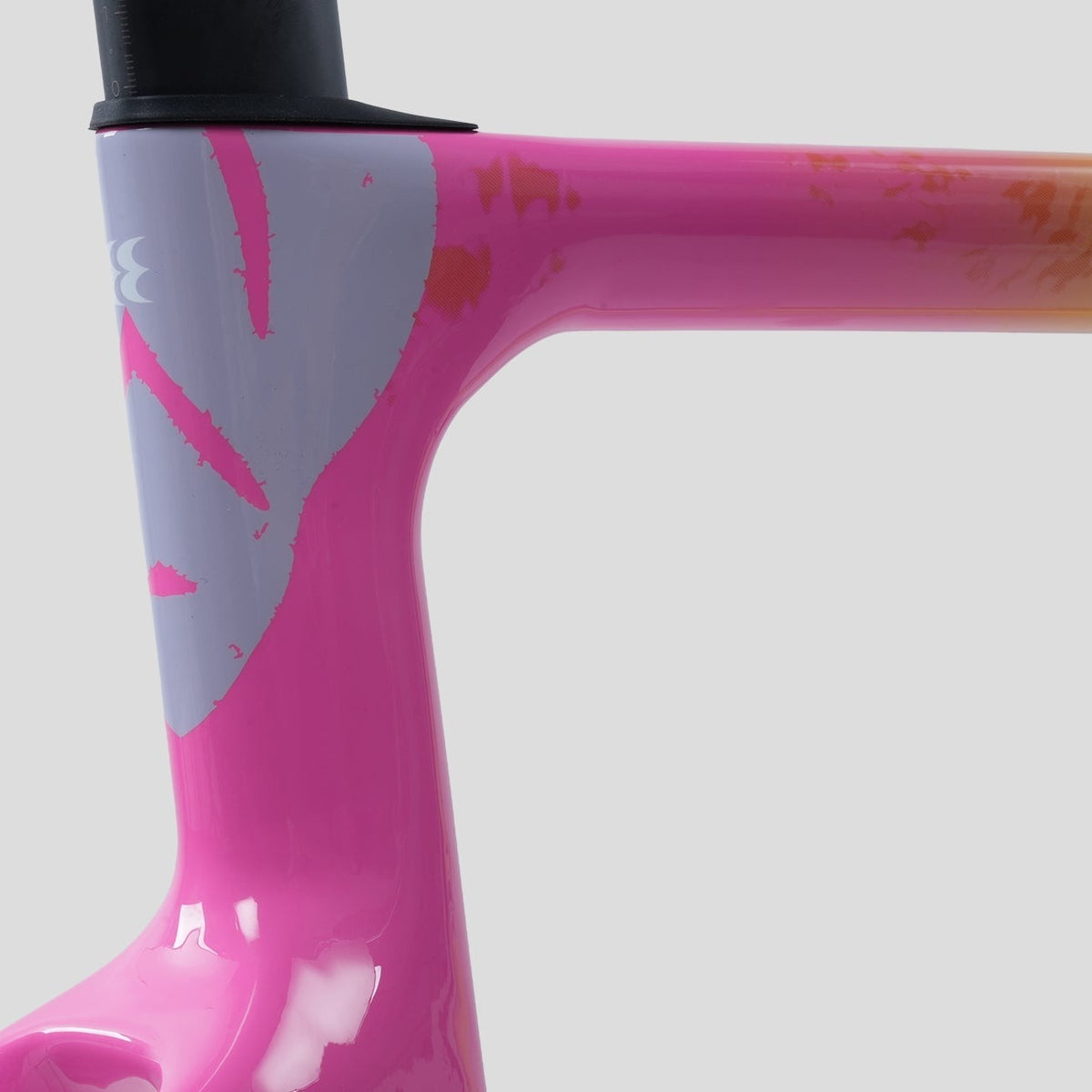

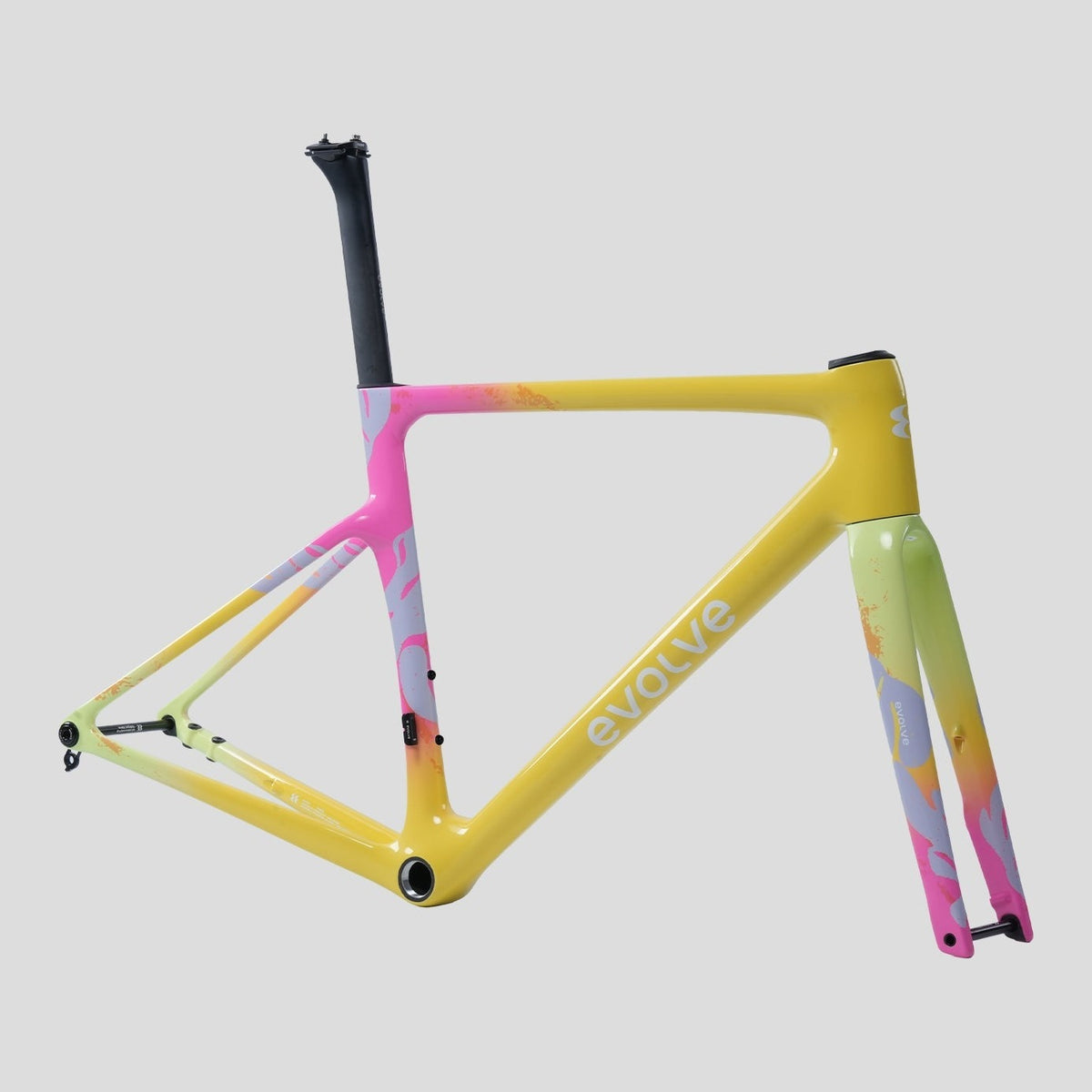

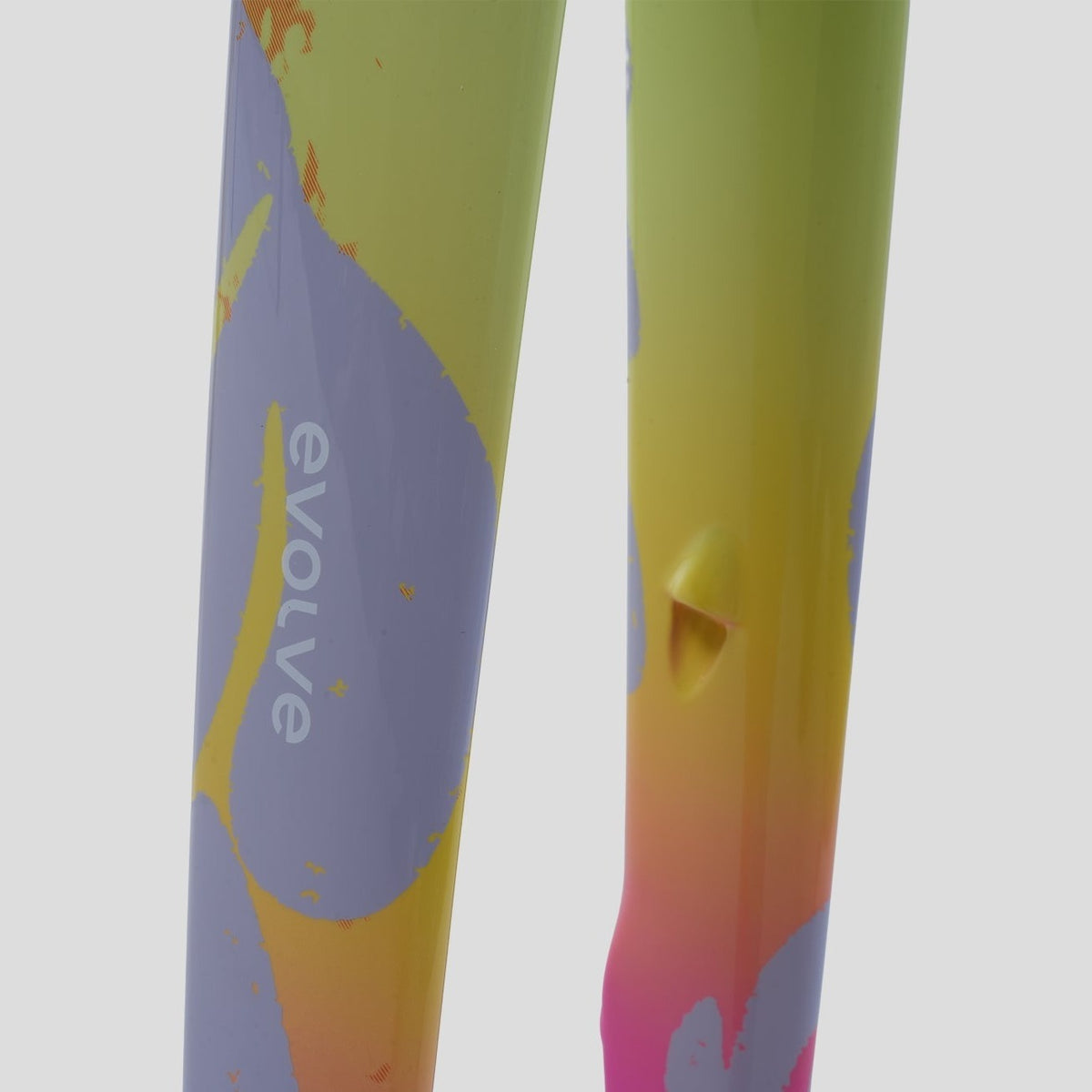

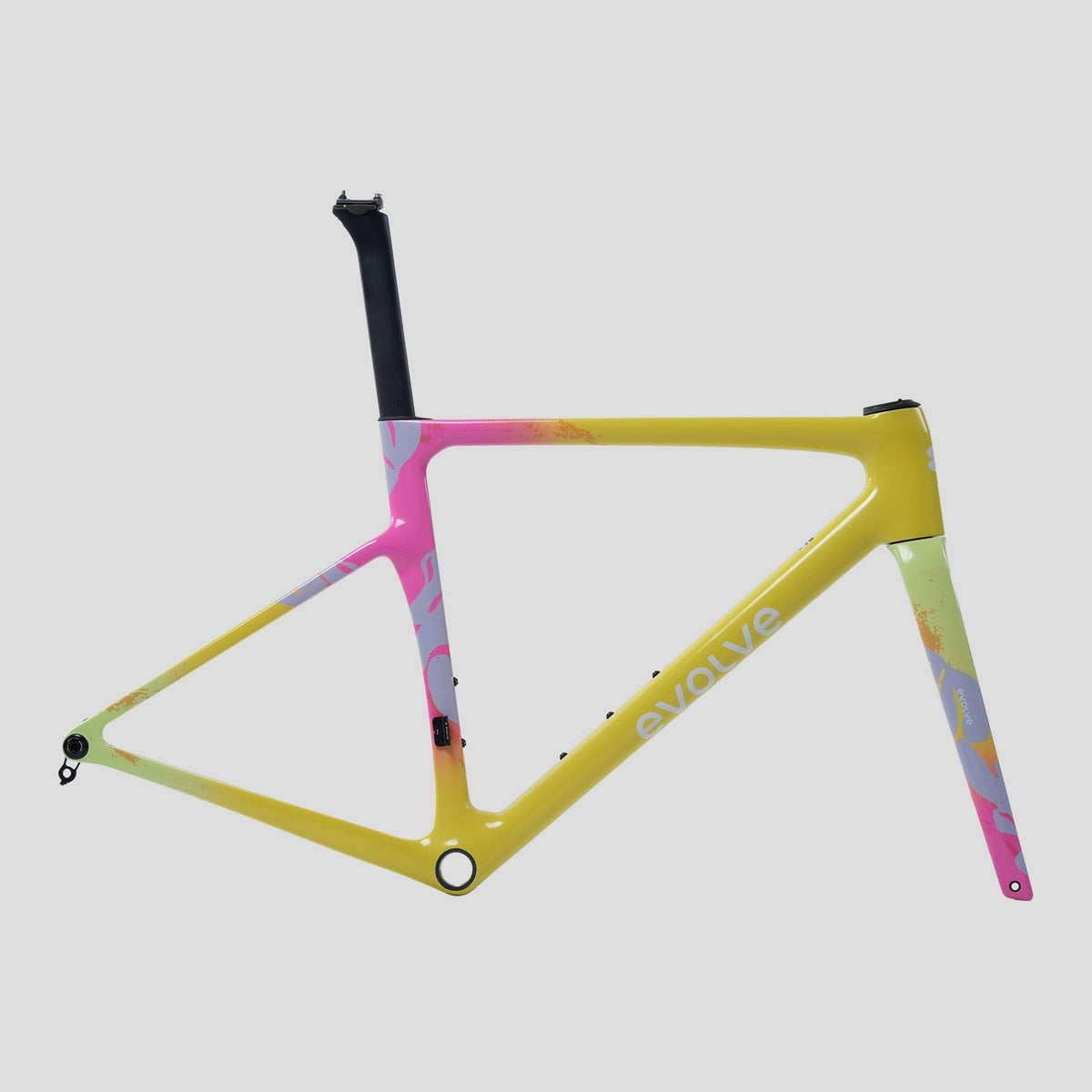

Tropical: frame 741 g in M (730–810 g from XS to XL) · fork 375 g

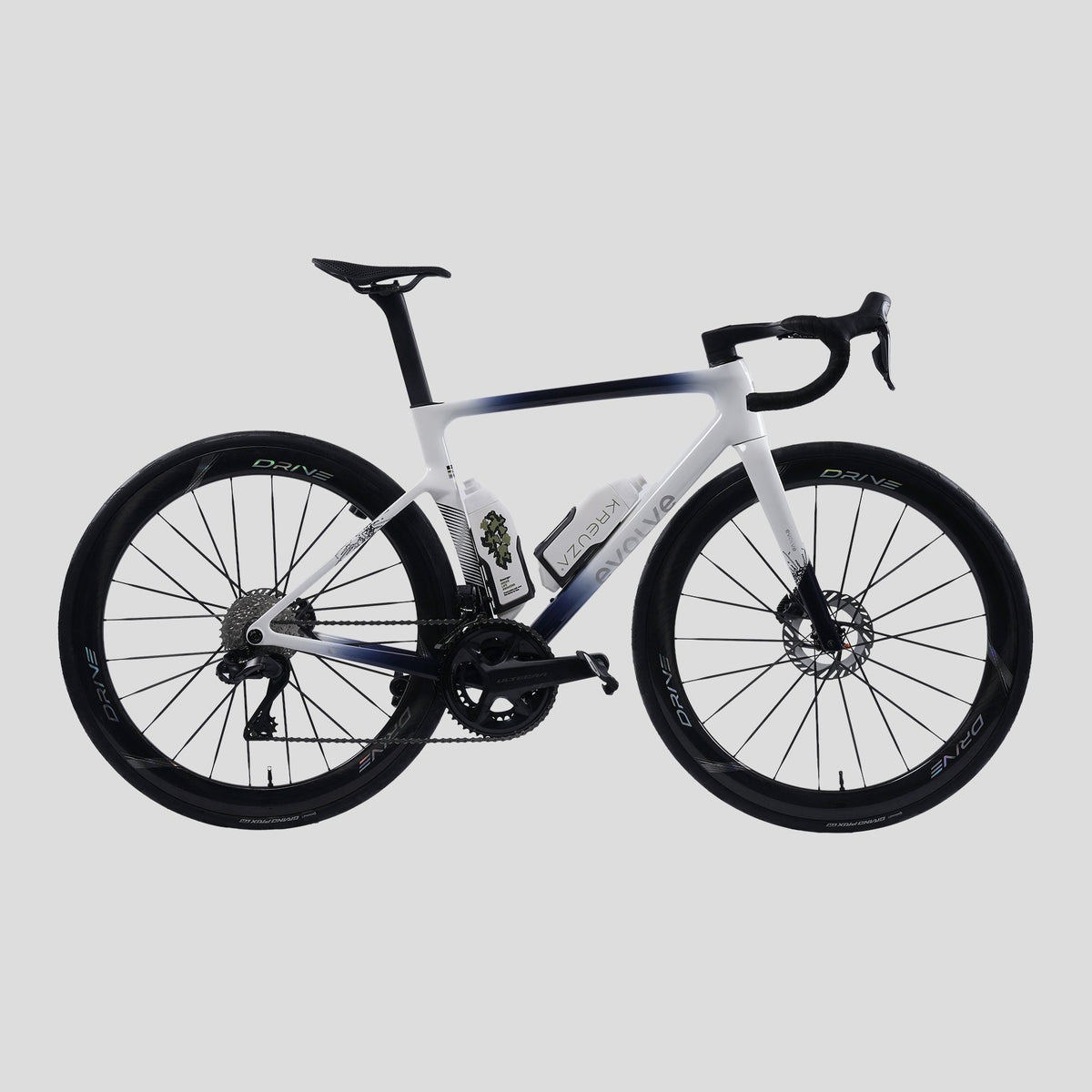

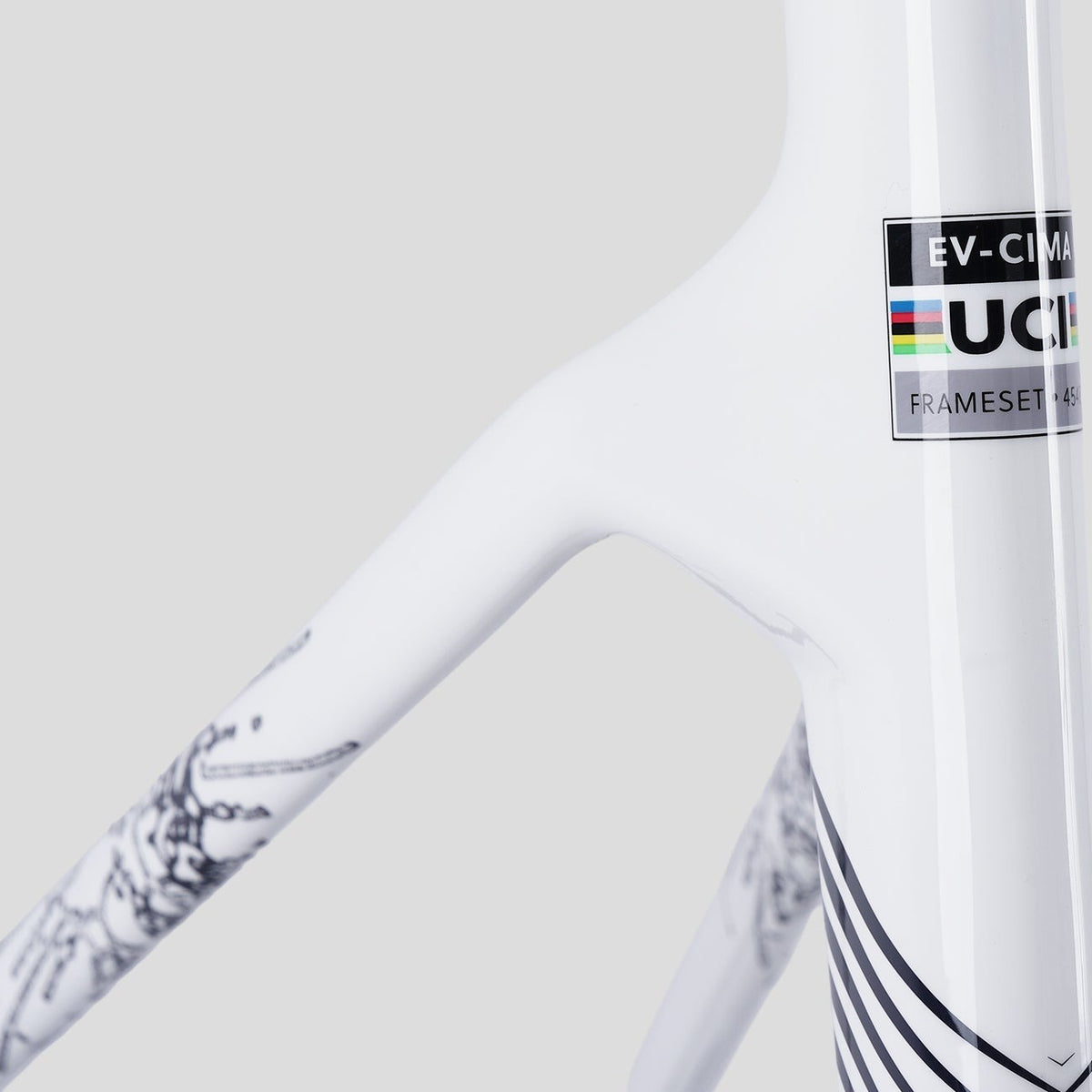

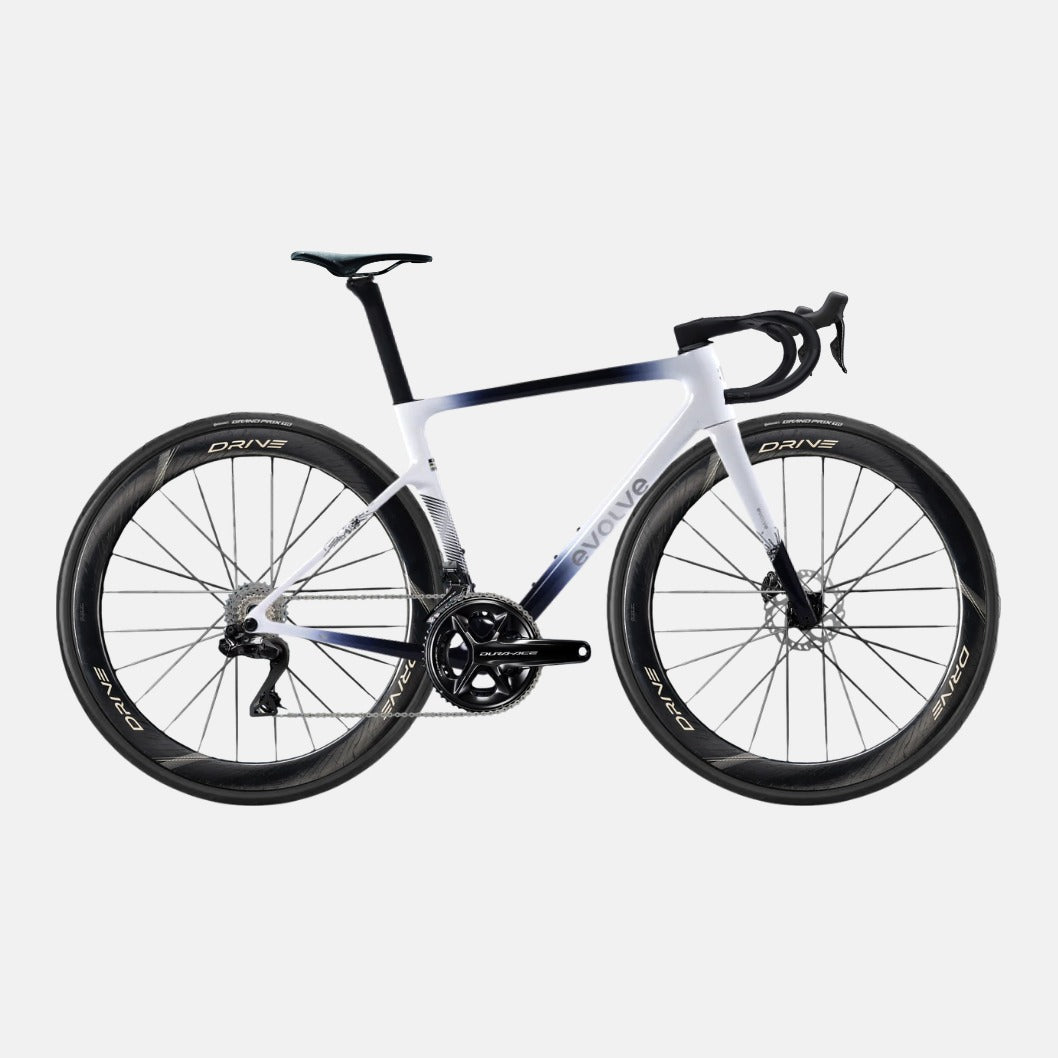

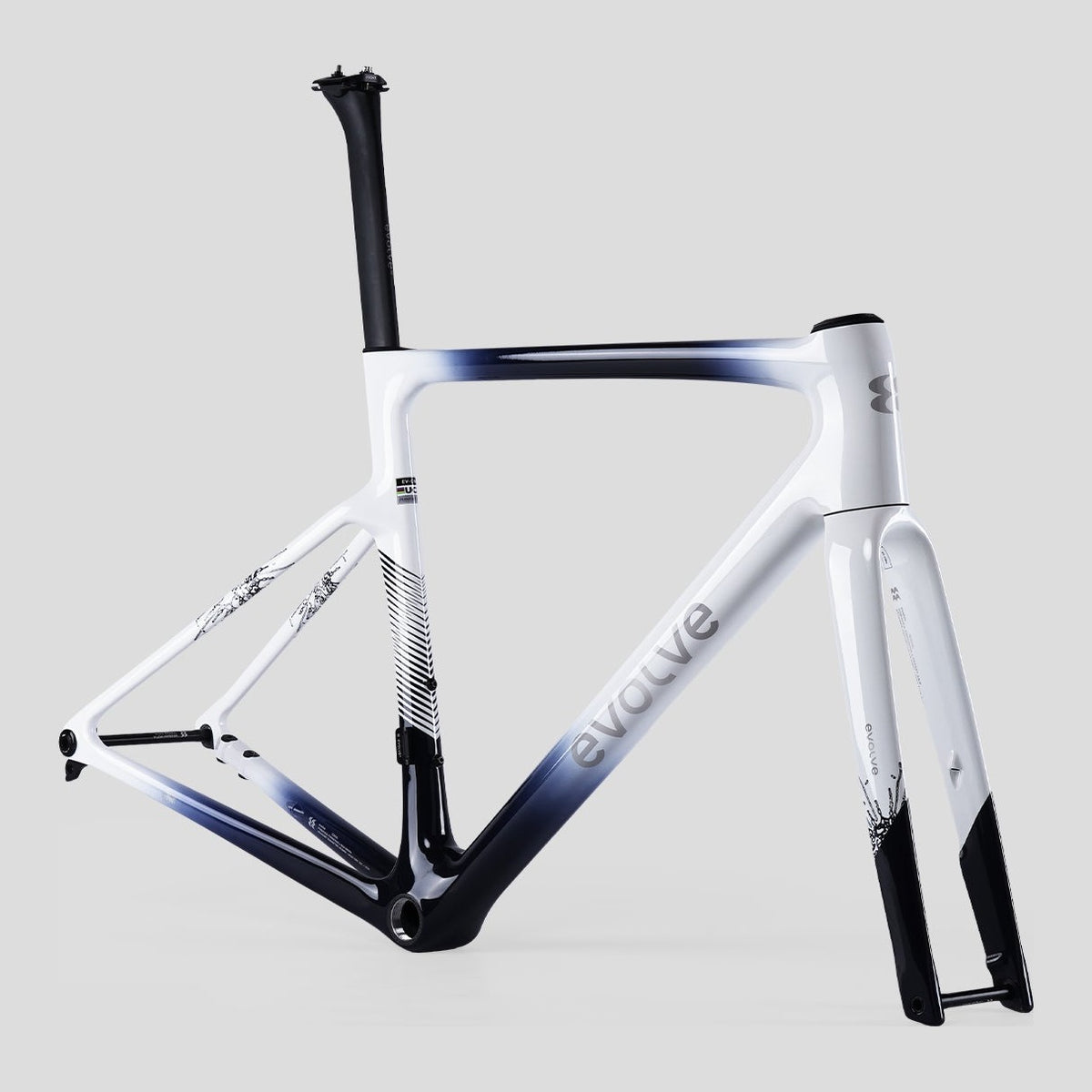

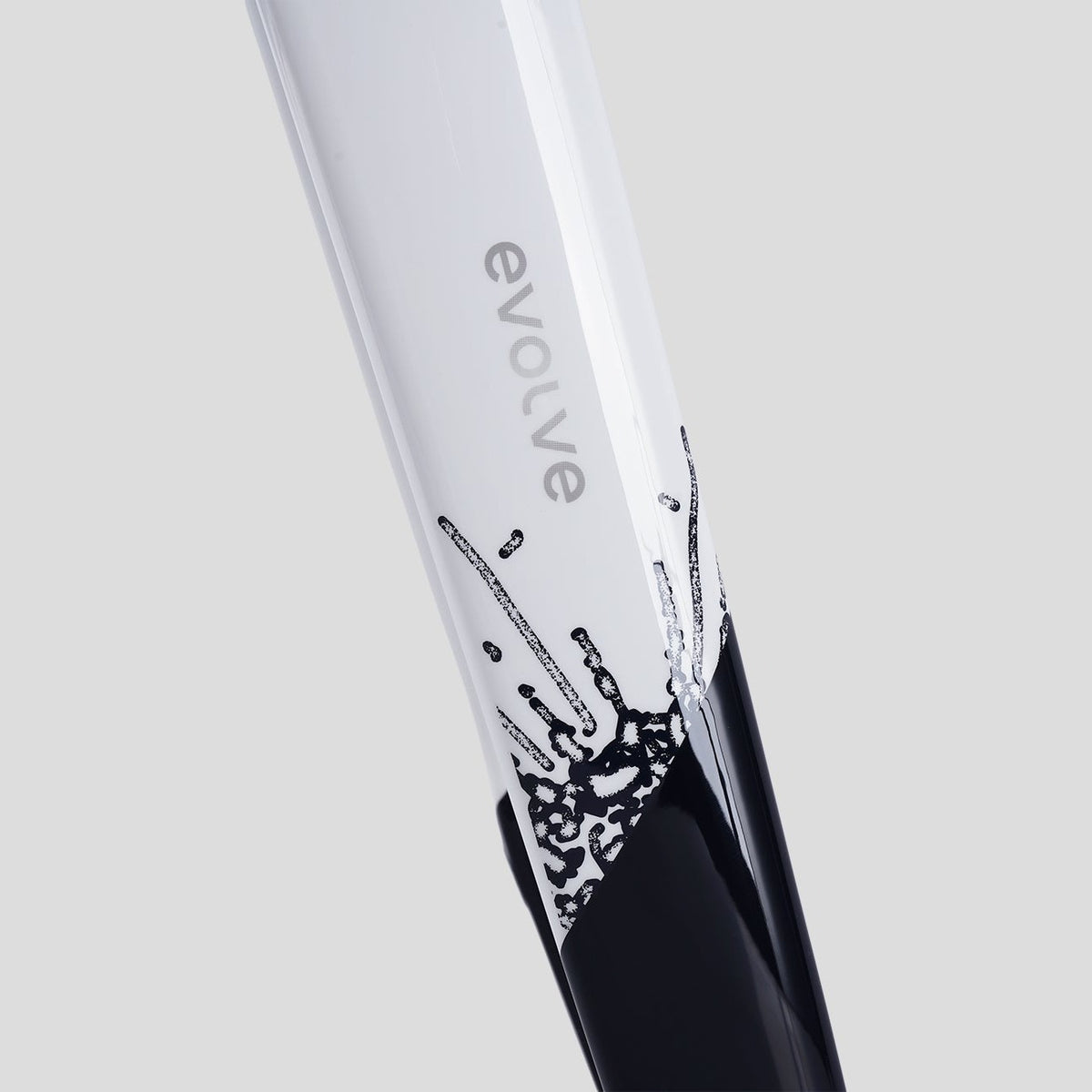

Navy White: frame 751 g in M (740–820 g from XS to XL) · fork 370 g

Aero seatpost: 138 to 165 g with clamp and hardware, depending on length and offset

Kreuza Apex cockpit: 331 to 355 g with cover and mounts, depending on measurements

Frame hardware: 180.2 g (derailleur hangers, axles, headset and bolts)

EliteWheels Drive 50D II wheels: 1,300 ±30 g per pair, without tubeless valves or rim tape

3-year legal conformity guarantee from delivery for new goods sold to consumers in Spain. Evolve offers the original buyer a limited commercial warranty against defects in materials or workmanship: frame and fork, lifetime; Evolve seatpost and Kreuza handlebar included with the frame set, 2 years; paint and finish, 2 years (excluding wear); other Evolve components, 1 year. This coverage is subject to Evolve’s terms and exclusions. Components from other brands are covered by their manufacturer’s commercial warranty, without limiting the consumer’s statutory rights.
