Evolve Cima GR

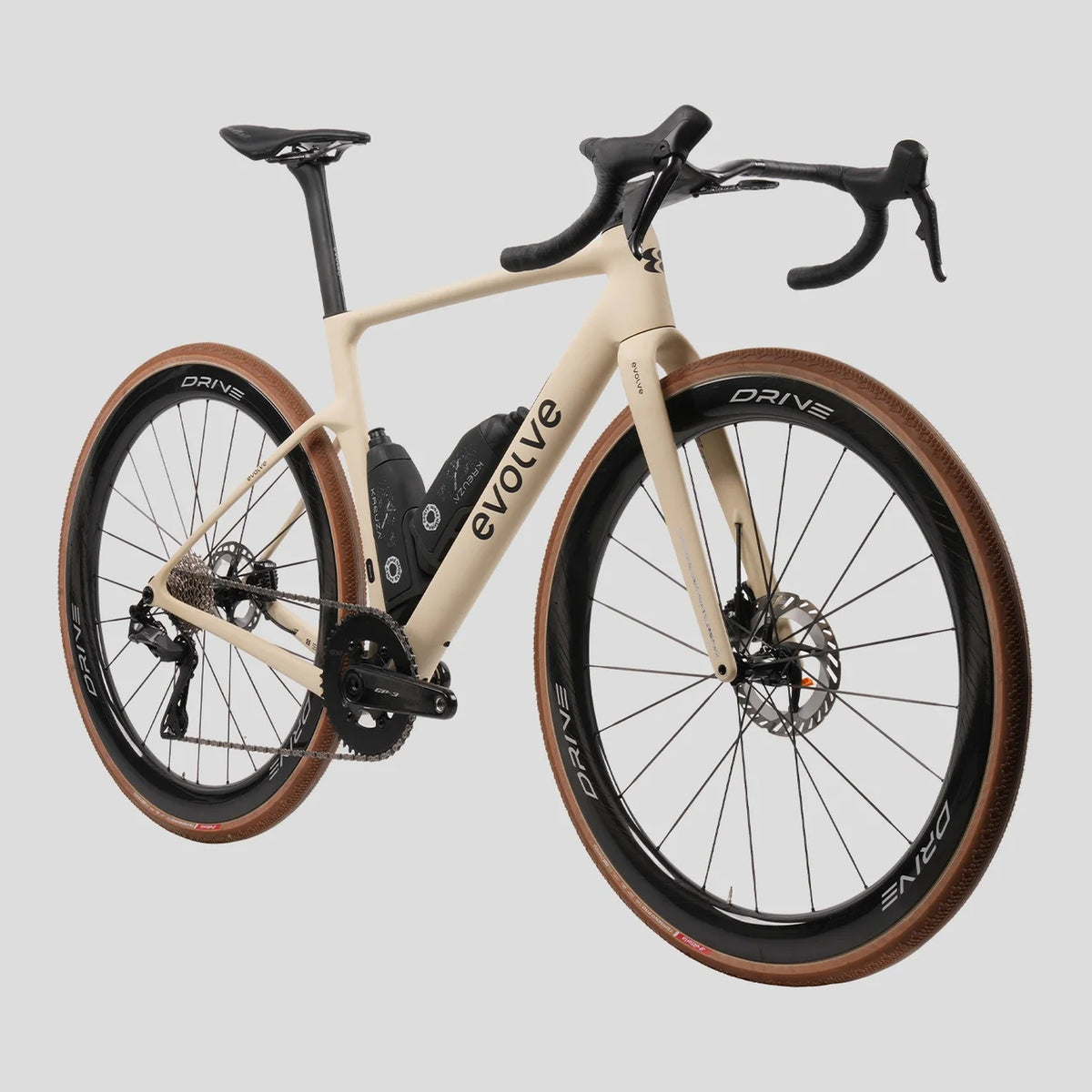

The Evolve Cima GR is a competition gravel bike built around the 750 g Cima GR frame (size M, unpainted), with a SRAM XPLR groupset and Drive G42 wheels, for pure gravel racing.

• 750 g frame (size M, unpainted) — ultralight, aero TORAYCA T1100/T800/M40 carbon.
• Up to 17.28 W at 35 km/h — savings measured by Evolve at Silverstone compared with other gravel frames.
• SRAM XPLR builds — choose Rival, Force or Red XPLR, wireless and with a wide-range 1× setup.
• Drive G42 carbon wheels — with nominal frame clearance up to 50 mm with 1× and a SRAM UDH dropout.

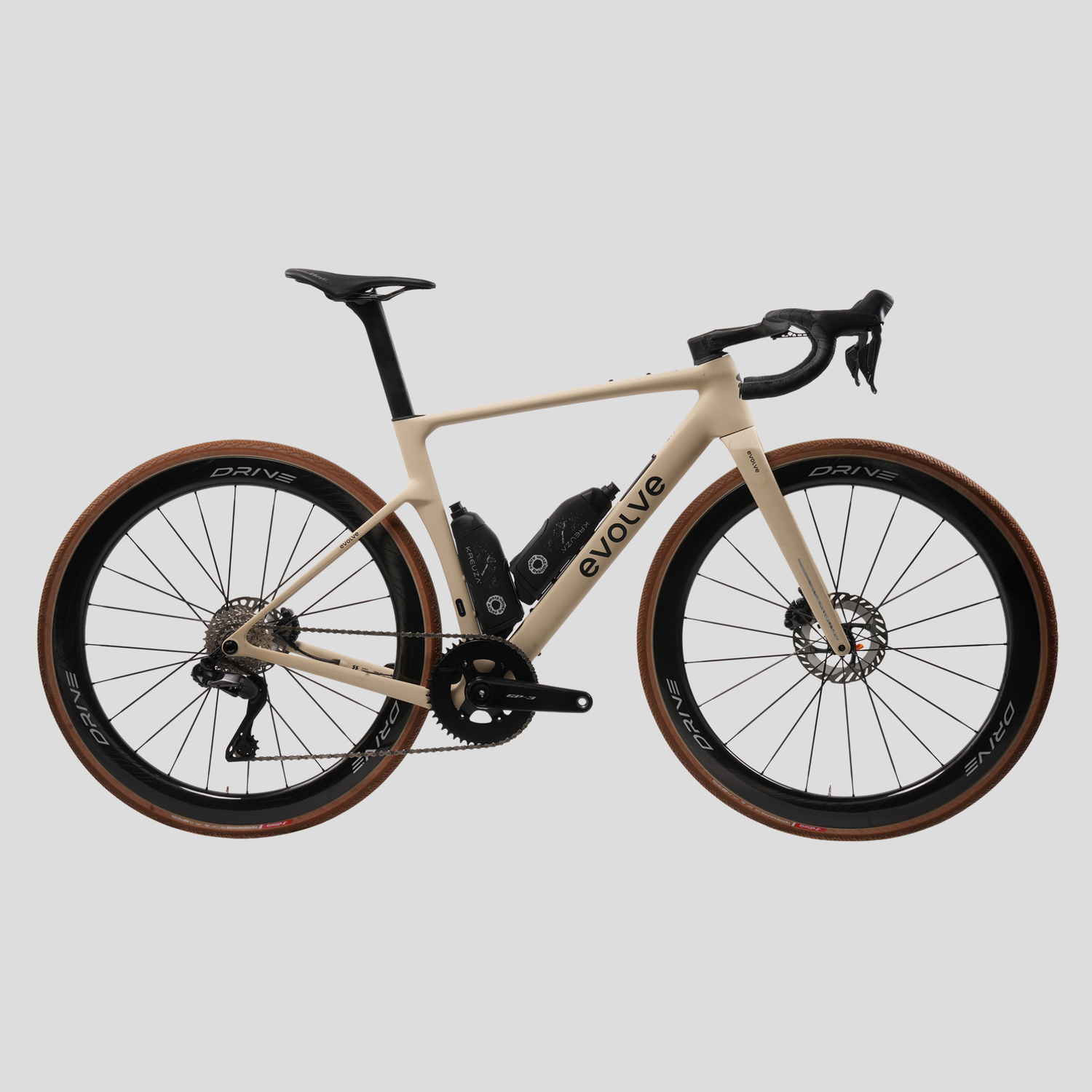

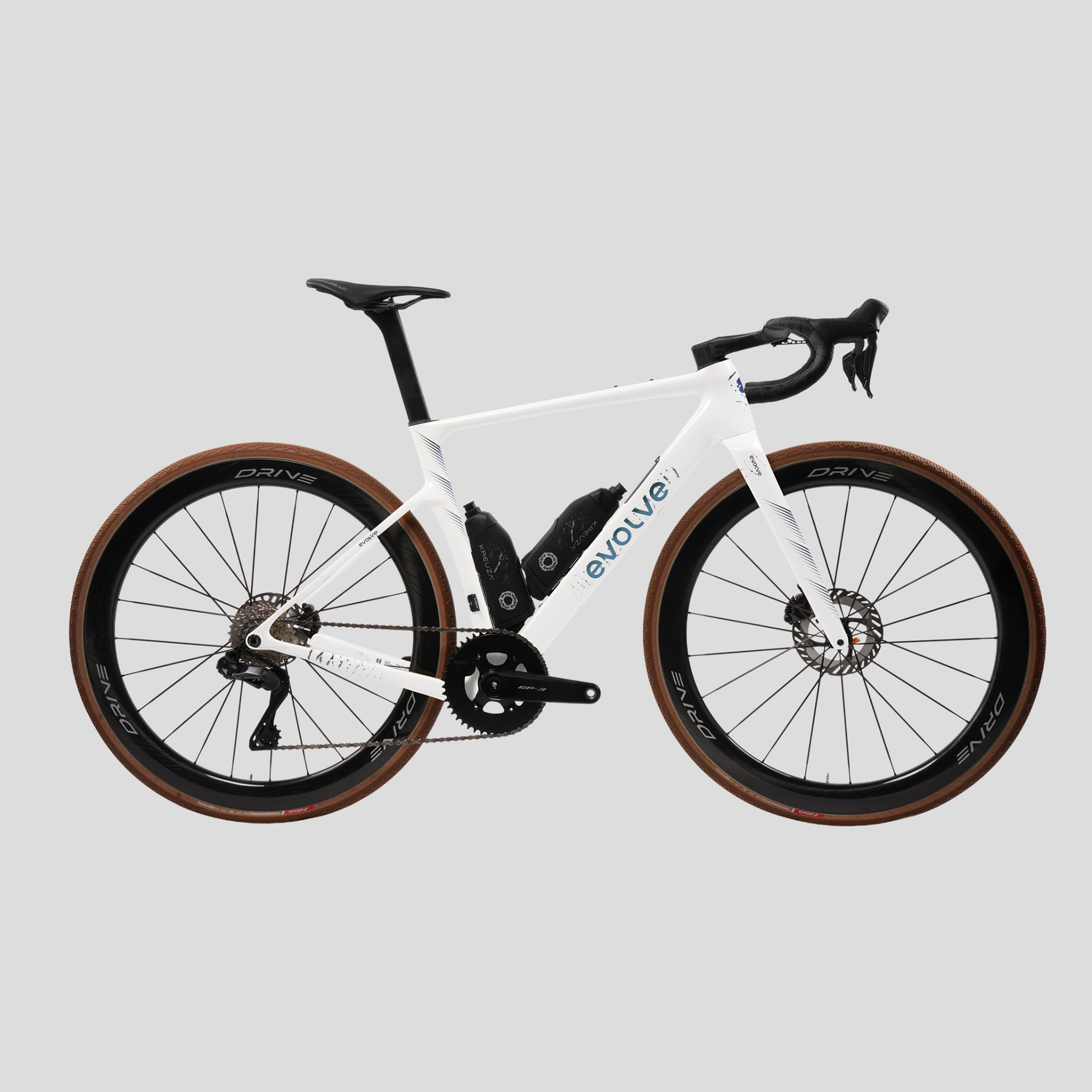

Available in White or Sahara, sizes XS–XL. UCI approved.

• Material: TORAYCA® T1100 + T800 + M40 carbon
• Frame: Evolve Cima gravel GR
• Fork: 54 mm offset on XS, S and M; 50 mm on ML, L and XL; OD1 steerer tube, 28.6 mm
• Aerodynamics: up to 17.28 W at 35 km/h, according to Evolve's test at Silverstone against other gravel frames
• Stiffness: +7.5% at the bottom bracket and +1.2% at the head tube, according to Evolve's internal tests against another gravel model
• Builds: SRAM Rival XPLR, Force XPLR or Red XPLR
• Wheels: EliteWheels Drive G42
• Cable routing: fully internal
• Axles: 12 × 100 mm front and 12 × 142 mm rear
• Bottom bracket: 68 mm threaded BSA
• Frame tire clearance: 50 mm nominal maximum with 1× and 45 mm with 2×; 35–45 mm recommended
• Derailleur hanger: SRAM UDH

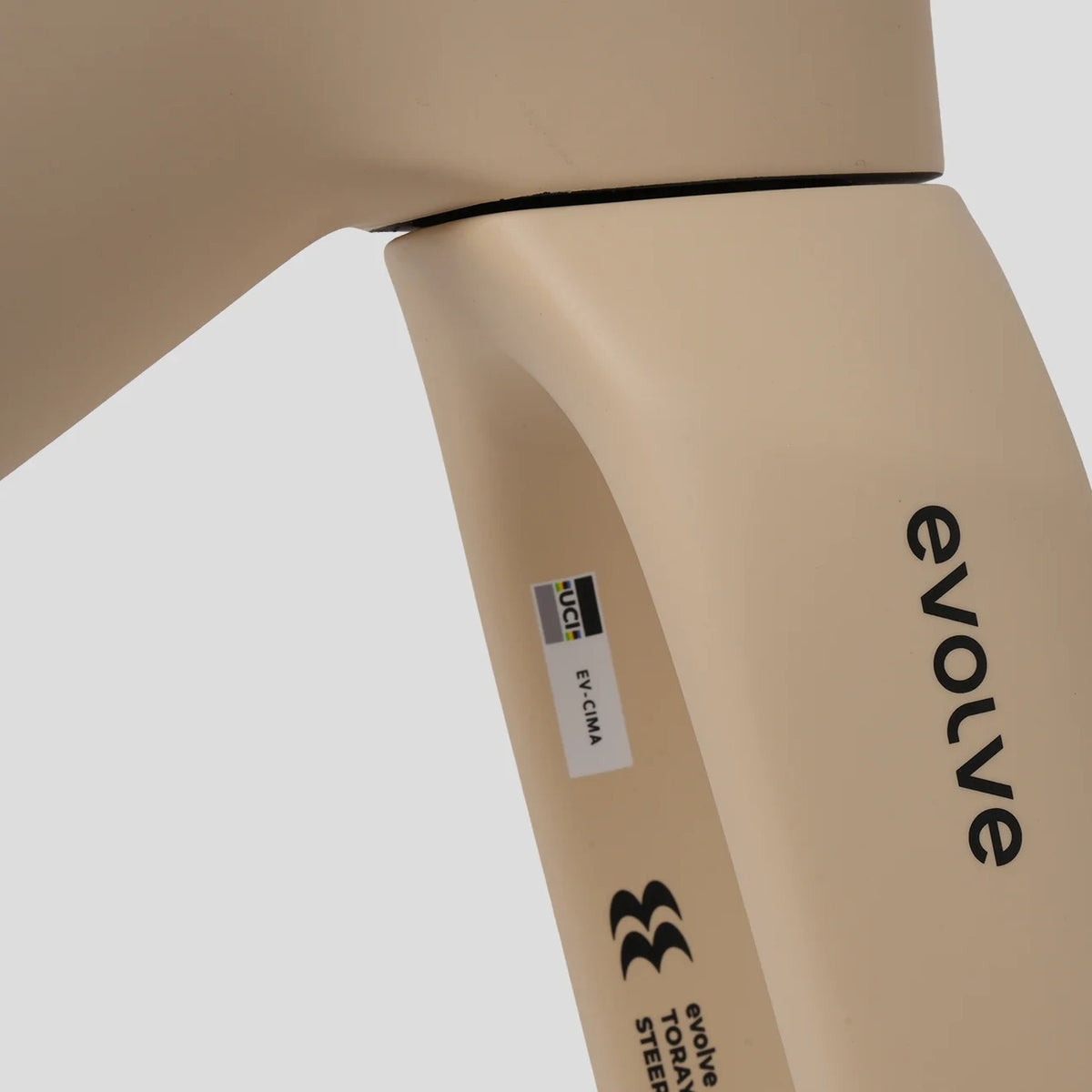

• Certifications: UCI Approved / CE
• Headset: standard steel bearings, 40.5 × 49.5 × 6.5 mm
• Compatible seatpost: 310 or 380 mm; offsets −5, +10 or +25 mm; clamps for 7 × 7, 7 × 9 and 7 × 10 mm rails
• Frame-compatible brakes: flat-mount disc; 160 or 180 mm front and 140 or 160 mm rear
• Frame-compatible drivetrains: 1× mechanical or electronic; 2× electronic only
• Maximum frame chainrings: 1×: 50 teeth; 2×: GRX 48/31T, Shimano 12-speed road 50/34T or SRAM Road 48/35T
• Frame-compatible wheel formats: 650B y 700C
• Rider weight limit: 109 kg
• Sizes: XS, S, M, ML, L and XL

Official Evolve frame weights, painted. The frame weighs 750 g in size M unpainted.

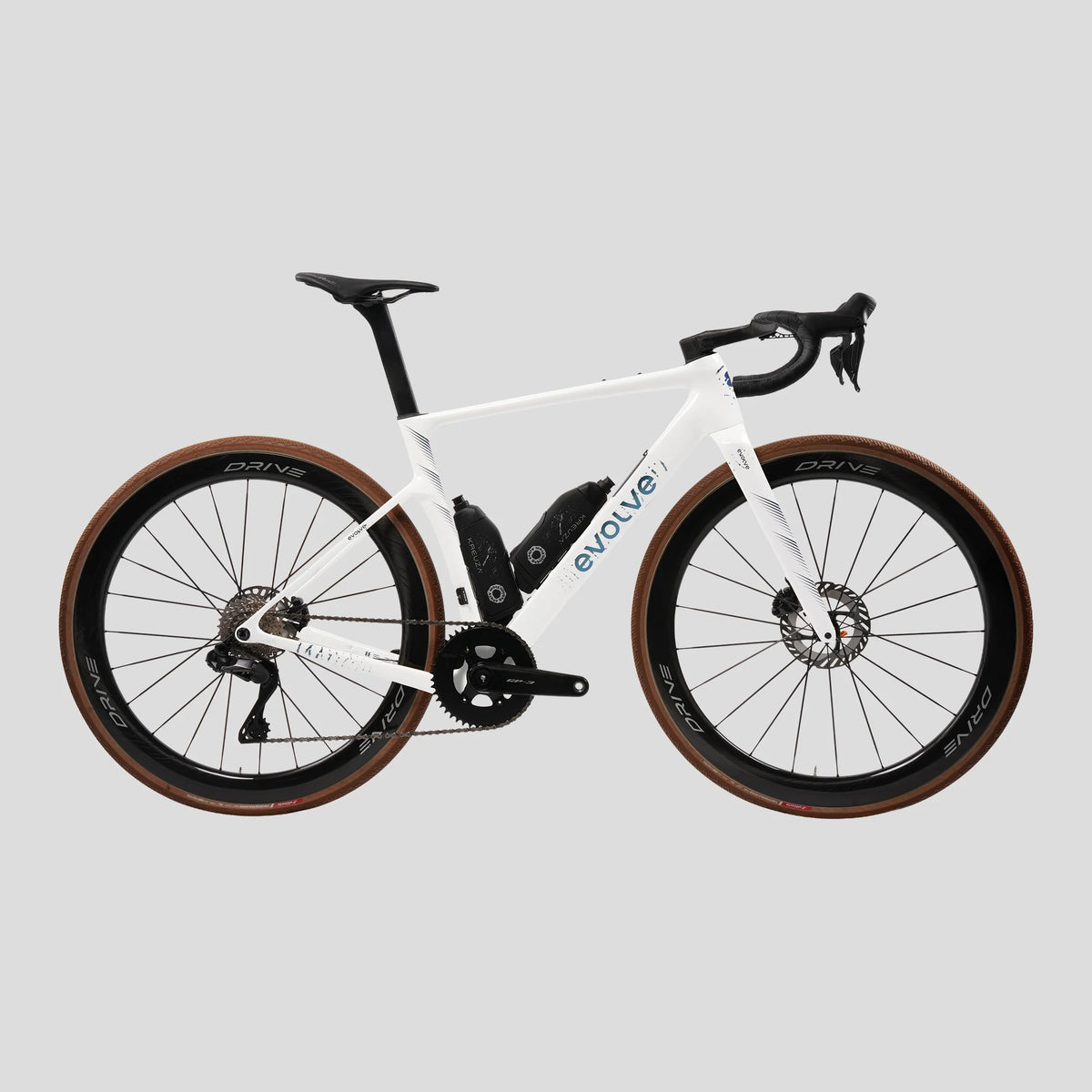

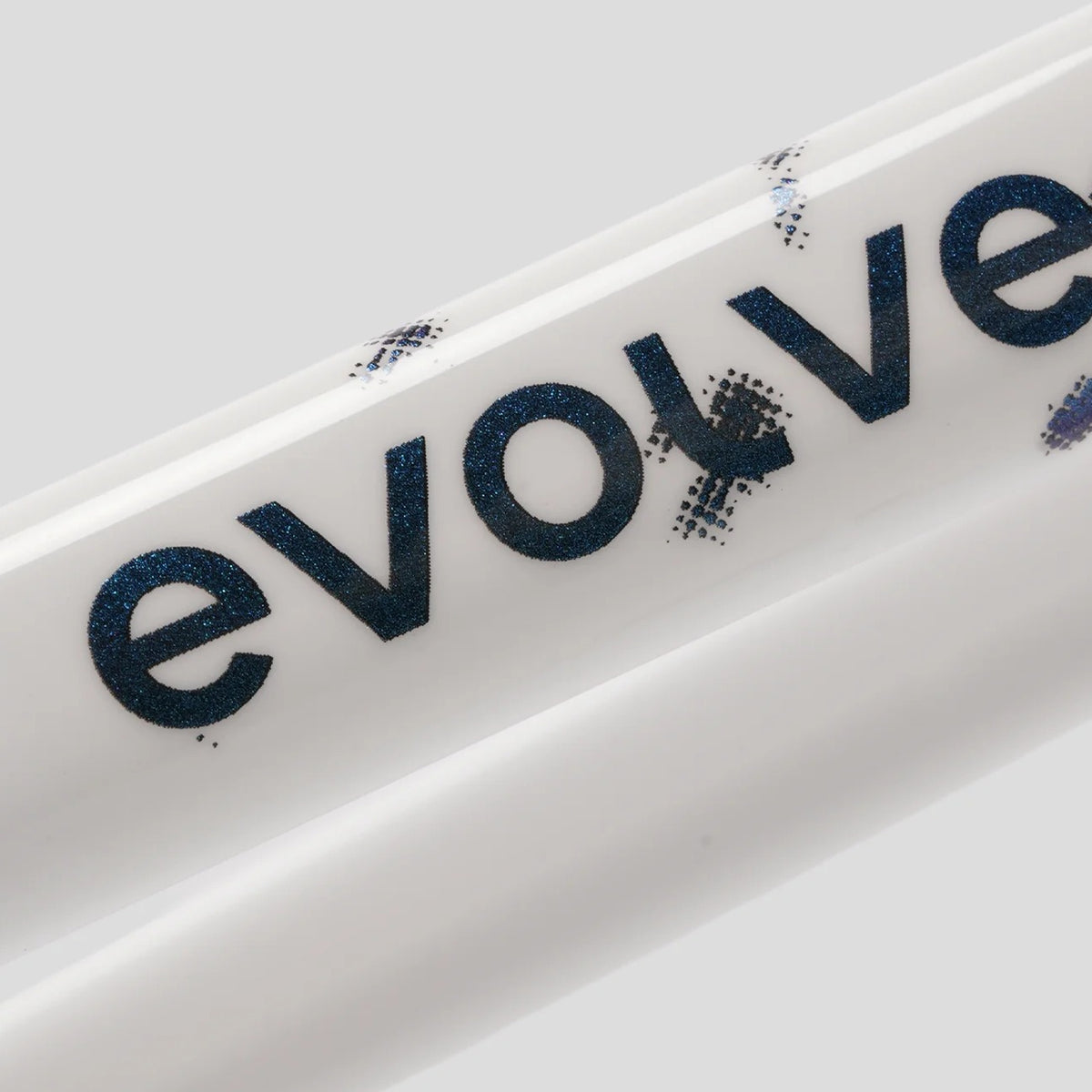

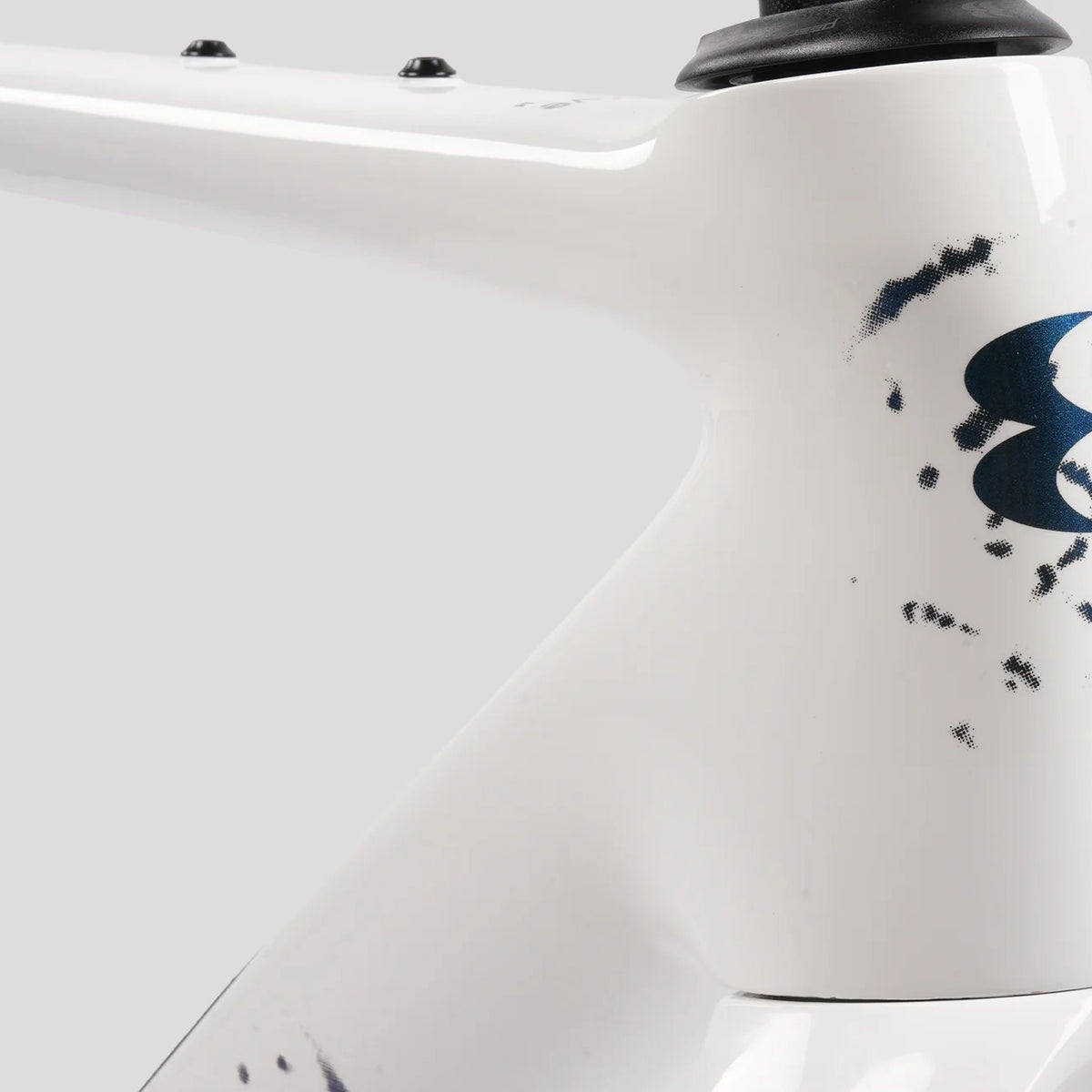

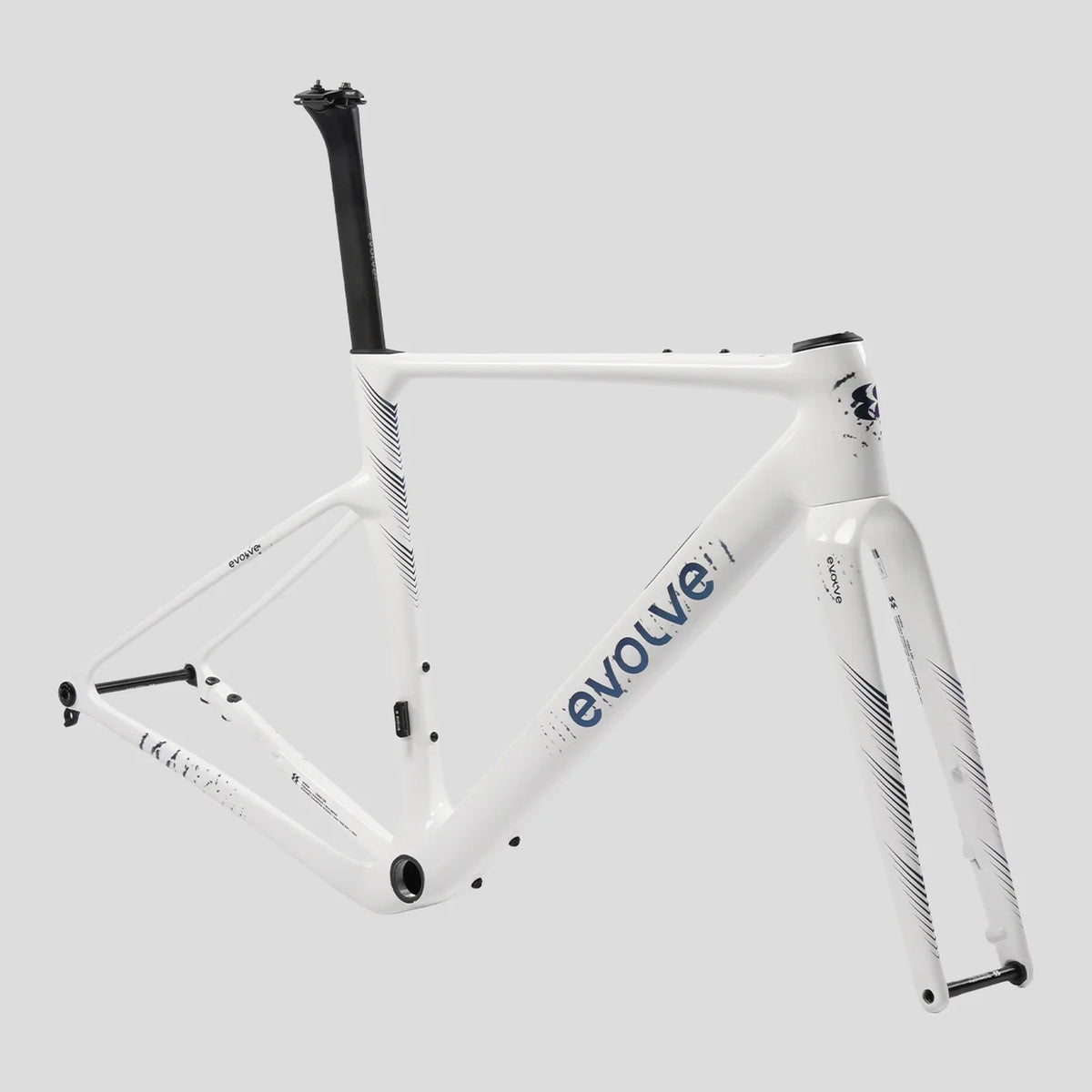

White (Sailfish Pearl): frame 835 g in M (810–955 g from XS to XL) · fork 390 g

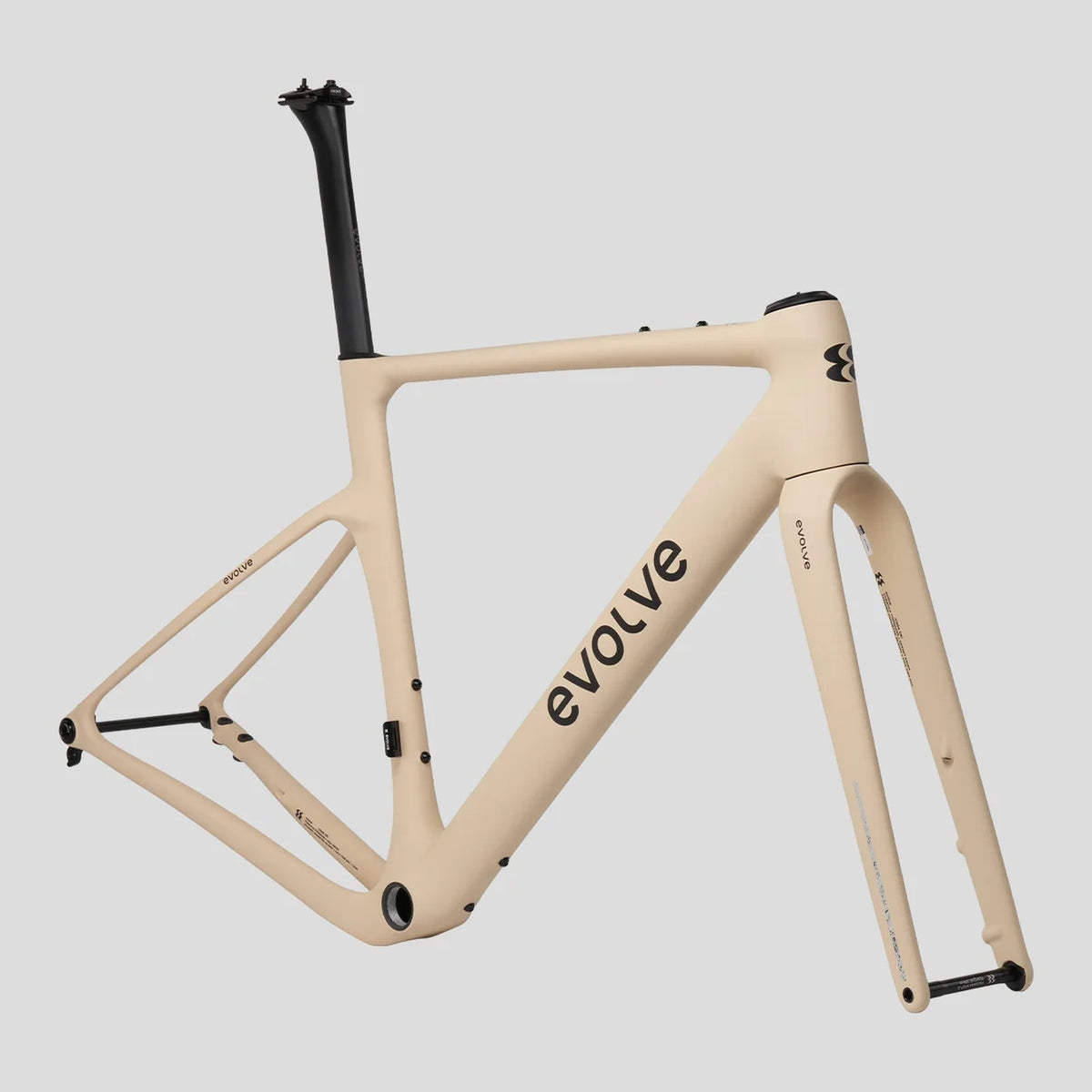

Sahara (Sahara Nude): frame 830 g in M (805–950 g from XS to XL) · fork 390 g

Aero seatpost: from 96 to 123 g depending on length and offset, plus 45 g for the seatpost hardware

Frame hardware: 180.2 g (dropouts, axles, headset and bolts)

3-year statutory warranty in Spain against lack of conformity, from delivery, for consumer purchases from RACEIT.CC.

Evolve commercial warranty for the first owner: frame and fork for life against material or manufacturing defects; seatpost and paintwork for 2 years; other Evolve parts for 1 year. Excludes wear, accidents, misuse, and modifications, according to the official policy.

SRAM components have a 2-year commercial warranty for the original purchaser; EliteWheels wheels, 3 years under their terms. Other components are covered by their manufacturer's warranty. These commercial warranties do not limit the consumer's statutory rights against the seller.
