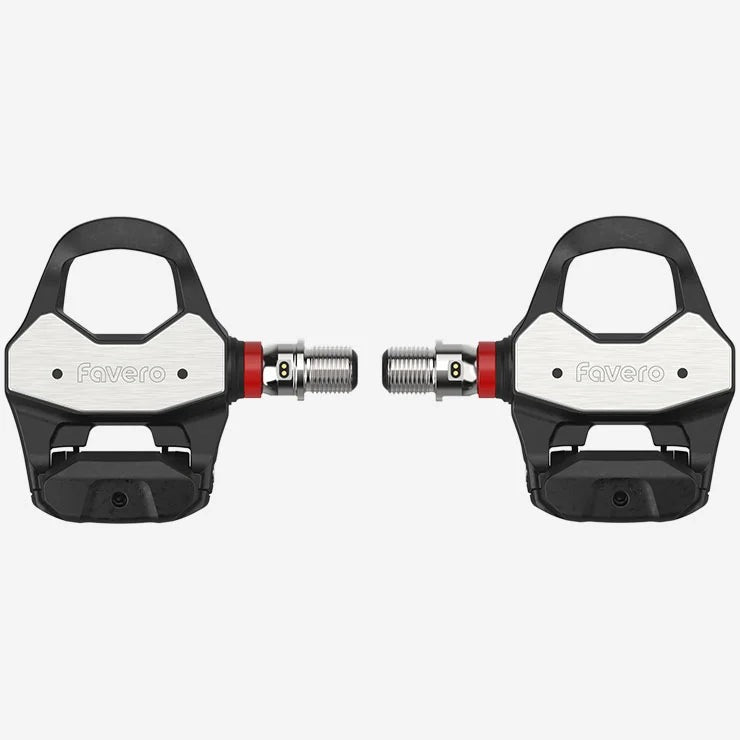

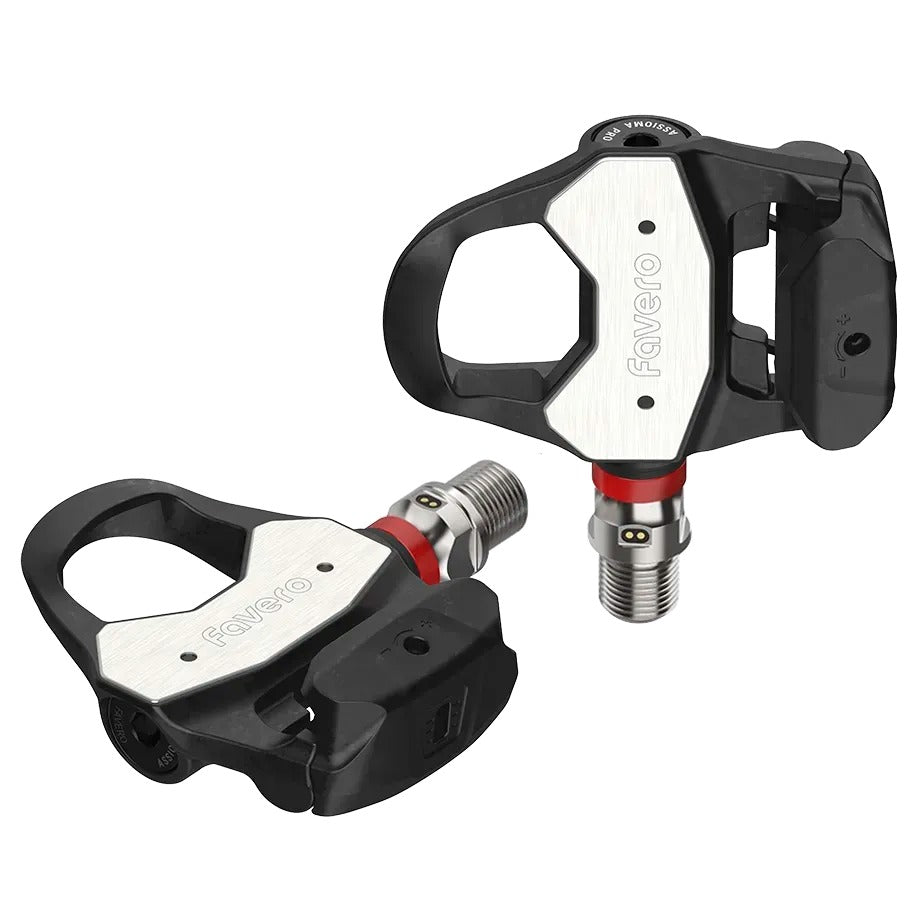

Favero Assioma Pro RL-2

The Favero Assioma Pro RL-2 are dual-sensor road power-meter pedals with Look Keo cleats: precise power measurement in both legs for those who prefer the Keo standard.

• Dual sensor (L/R) — left/right balance and comprehensive pedaling analysis.
• Look Keo cleats — compatible with the Keo standard and equivalents.
• IAV System — precise power measurement with an integrated gyroscope.
• 130 g per pedal — lightweight and easy to switch between bikes.

ANT+ and Bluetooth (up to 3 connections). Up to 160 hours of battery life per charge.

• Type: Dual-sided power meter pedals (both sides)
• Measurement system: IAV (Instantaneous Angular Velocity) system with strain gauges integrated into the spindle
• Power measurement: Total power with independent left/right analysis (L/R balance)
• Power range: 0–3,000 W
• Bluetooth data: Power, cadence, and left/right balance
• ANT+ data: Power, cadence, left/right balance, platform center offset (PCO), power phase (PP), seated/standing position (RP), torque effectiveness (TE), and pedal smoothness (PS); requires a compatible device
• App data: Power, cadence, left/right balance, PCO, PP, TE, and PS; seated/standing position (RP) is not displayed in the Favero Assioma app
• Cadence measurement: Integrated cadence sensor and gyroscope; 10–250 rpm
• Cleat compatibility: Favero cleats 773-00-70, 773-00-71, 773-00-72, 771-40, and 771-42; original Look Keo and Keo Grip cleats
• Included cleats: Favero cleats compatible with Look Keo, with 5° float
• Release tension: Adjustable with a 3 mm Allen key
• Oval chainring compatibility: Yes, fully compatible
• Connectivity: ANT+ PWR and Bluetooth 4.2 (up to 3 simultaneous BLE connections)
• Battery: Rechargeable lithium battery
• Battery life: Up to 160 hours per charge
• Fast charging: Approximately 15 hours of use from 15 minutes of charging
• Full charge: Around 4 hours from empty; magnetic connection
• Accuracy: ±1%
• Temperature compensation: ATC active temperature compensation system
• Stack height: 10.5 mm
• Q-factor: +53 mm
• Contact surface: 755 mm²
• Water resistance: IP67 certified
• Operating temperature: −10–+55 °C
• Recommended charging temperature: +10–+45 °C
• Use: Road cycling / training and racing
• Use category: Paved roads, ASTM F2043 category 1; complies with DIN EN ISO 4210
• Maximum rider weight: 120 kg
• Design: Body made of carbon fiber-reinforced technopolymer, modular design with interchangeable bodies
• Spindle: AISI 630 stainless steel
• Bearings: Two needle bearings and one technopolymer thrust washer
• Modularity: Spindle shared with Assioma PRO RL, PRO RS, and PRO MX; pedal bodies can be changed while keeping the sensor
• Thread: 9/16″-20 TPI
• Crank compatibility: Through-hole and maximum thickness of 15 mm in the threaded area; the plastic end of the spindle must protrude by at least 1 mm
• Installation clearances: More than 4 mm between the spindle cap and the chain and frame; check throughout a full crank revolution
• Installation: Pedals: 30–40 Nm with a 15 mm open-end wrench; cleats: 5–6 Nm. Use Favero washers where applicable; do not use pedal extenders or crank shorteners
• Activation: Required via the free Favero Assioma app for iOS and Android
• Setup: Set the crank length on the bike computer; if it does not allow this, do it in the Favero Assioma app
• Calibration: Automatic during use; manual during first installation and when changing bikes
• Manufacturing: Made in Italy

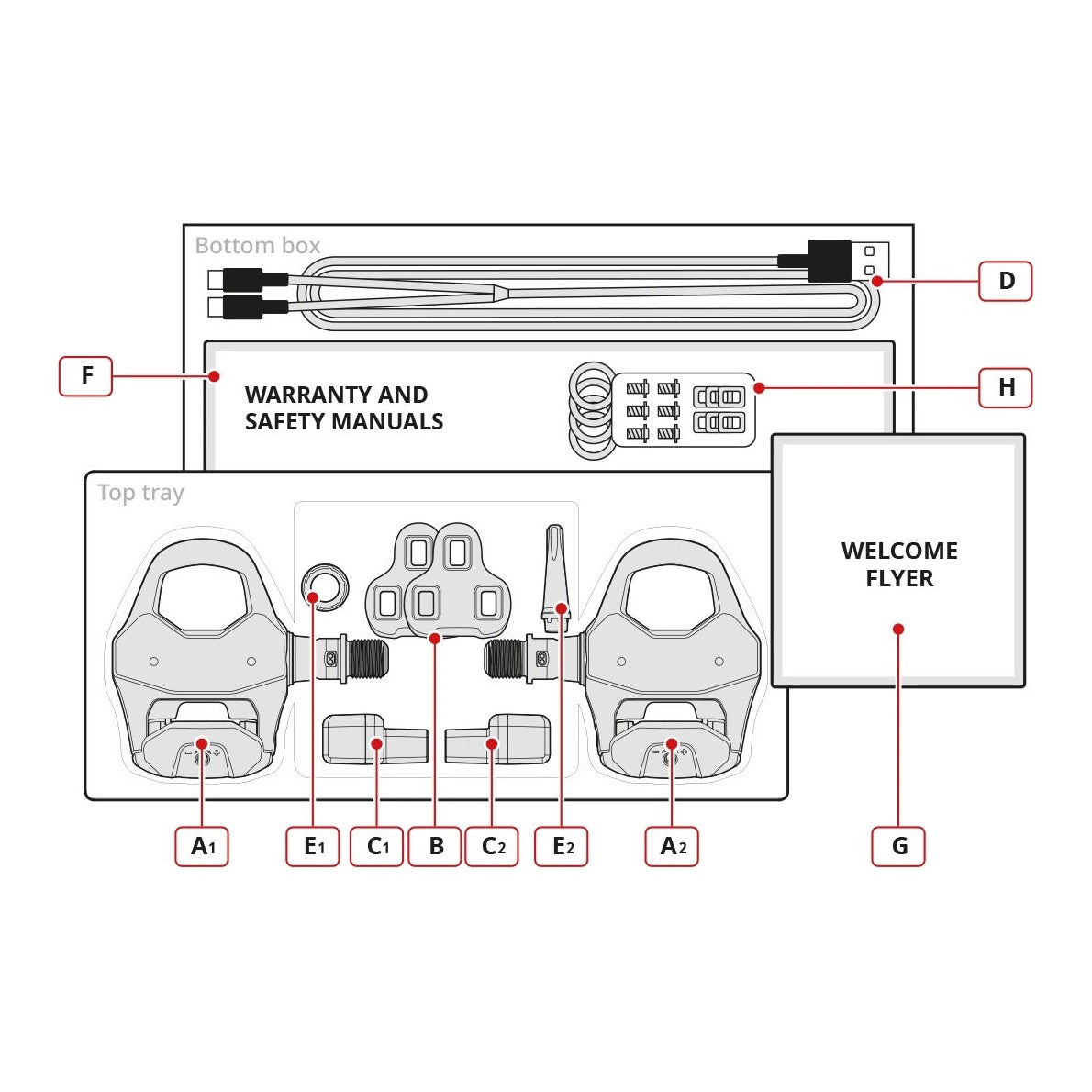

Left pedal with power meter

Right pedal with power meter

Favero cleats compatible with Look Keo, with 5° of float

Two magnetic charging connectors

One dual charging cable

Greasing kit

Six cleat washers, six screws, and four mounting washers

Warranty and safety manual

Welcome booklet

Left pedal: 130 g with integrated sensor and battery

Right pedal: 130 g with integrated sensor and battery

Total weight of the set: 260 g, calculated as 130 + 130 g; pedals only, without cleats or accessories

3-year legal warranty
