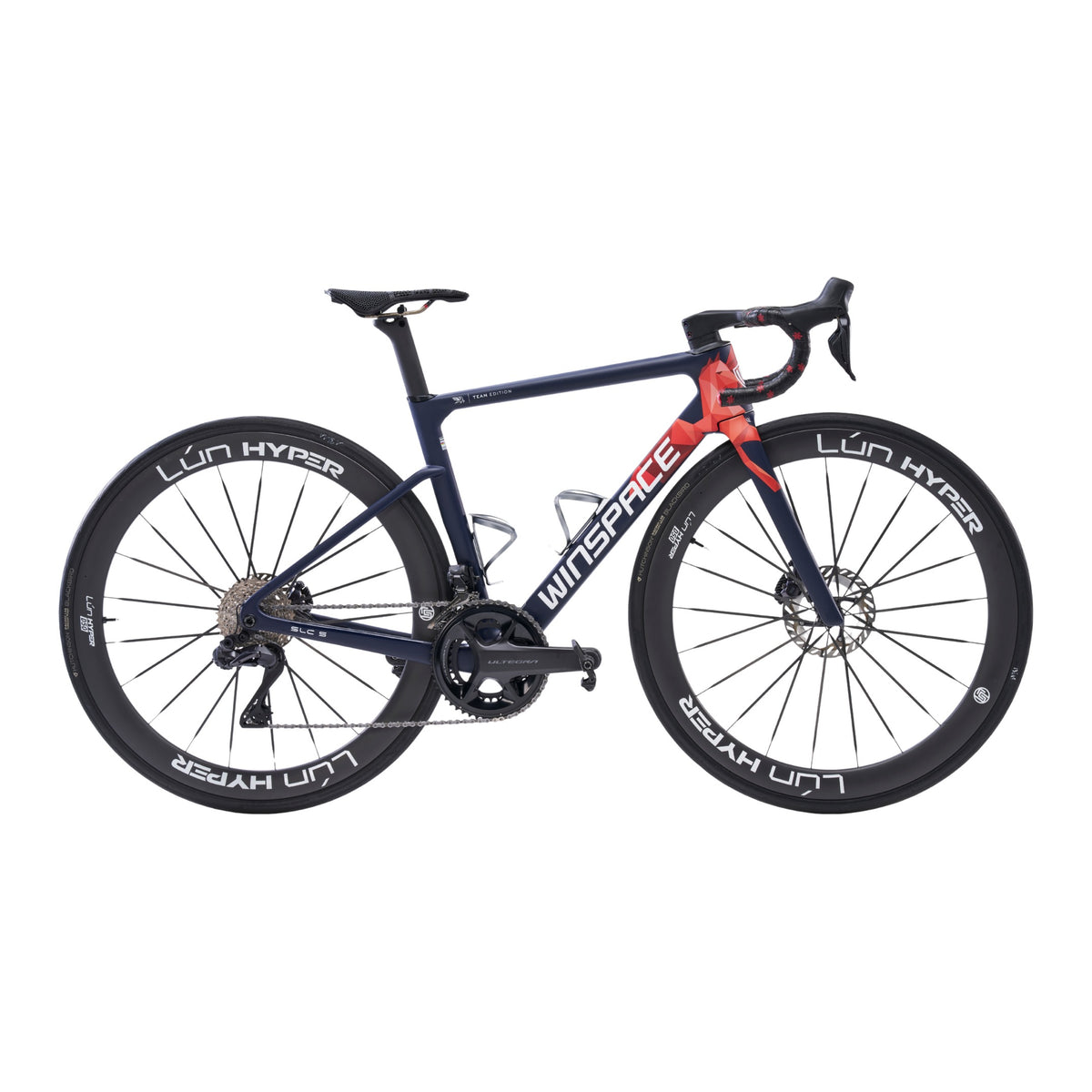

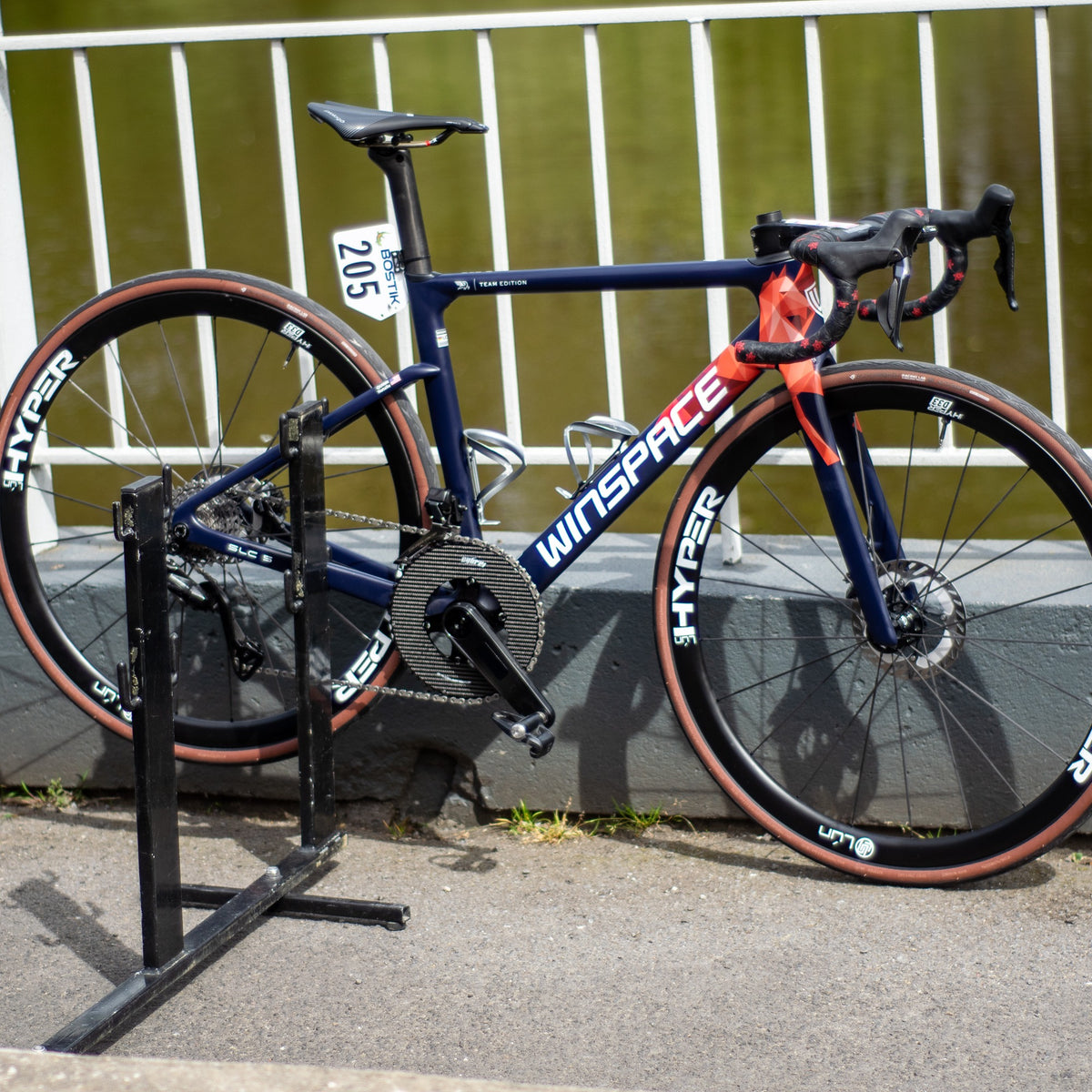

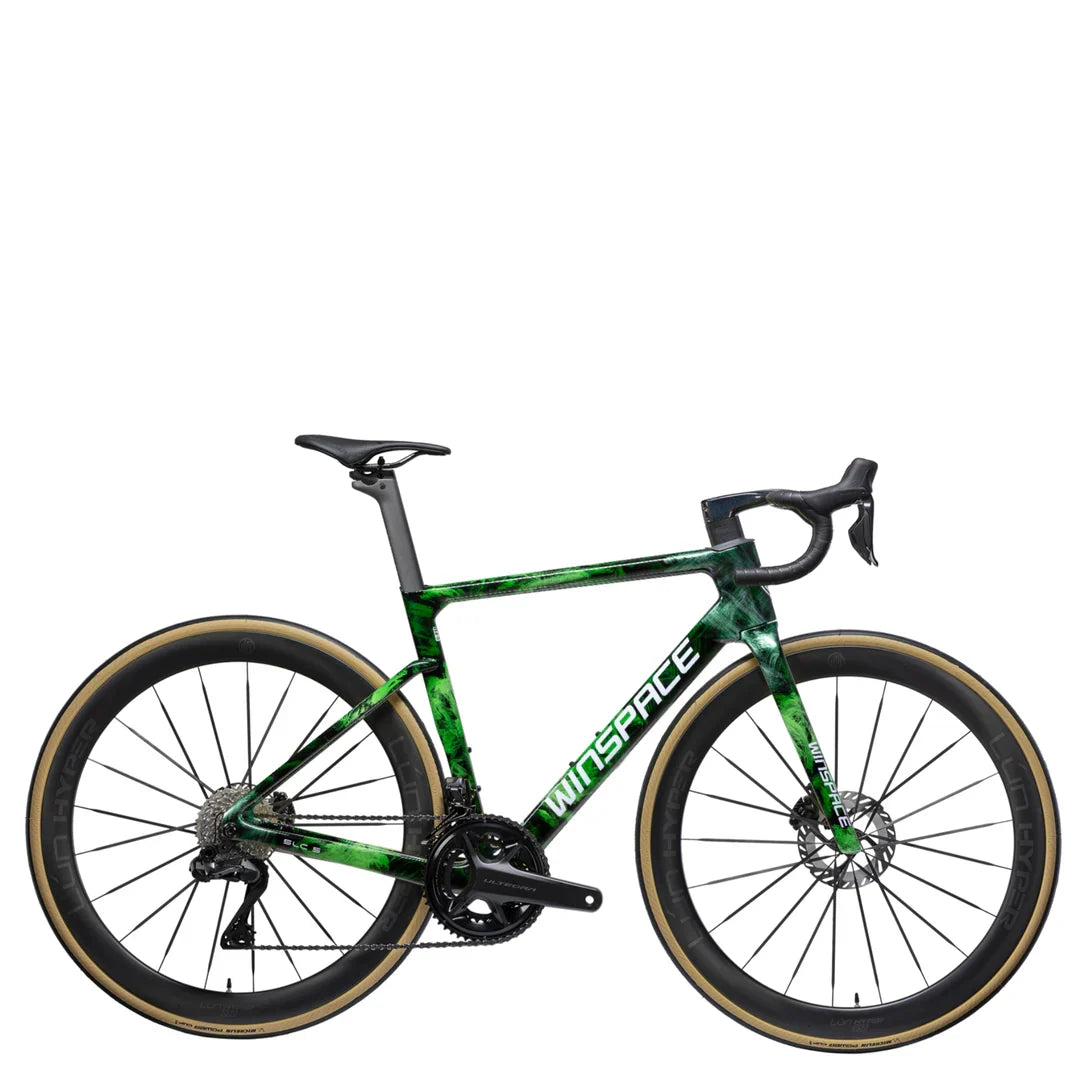

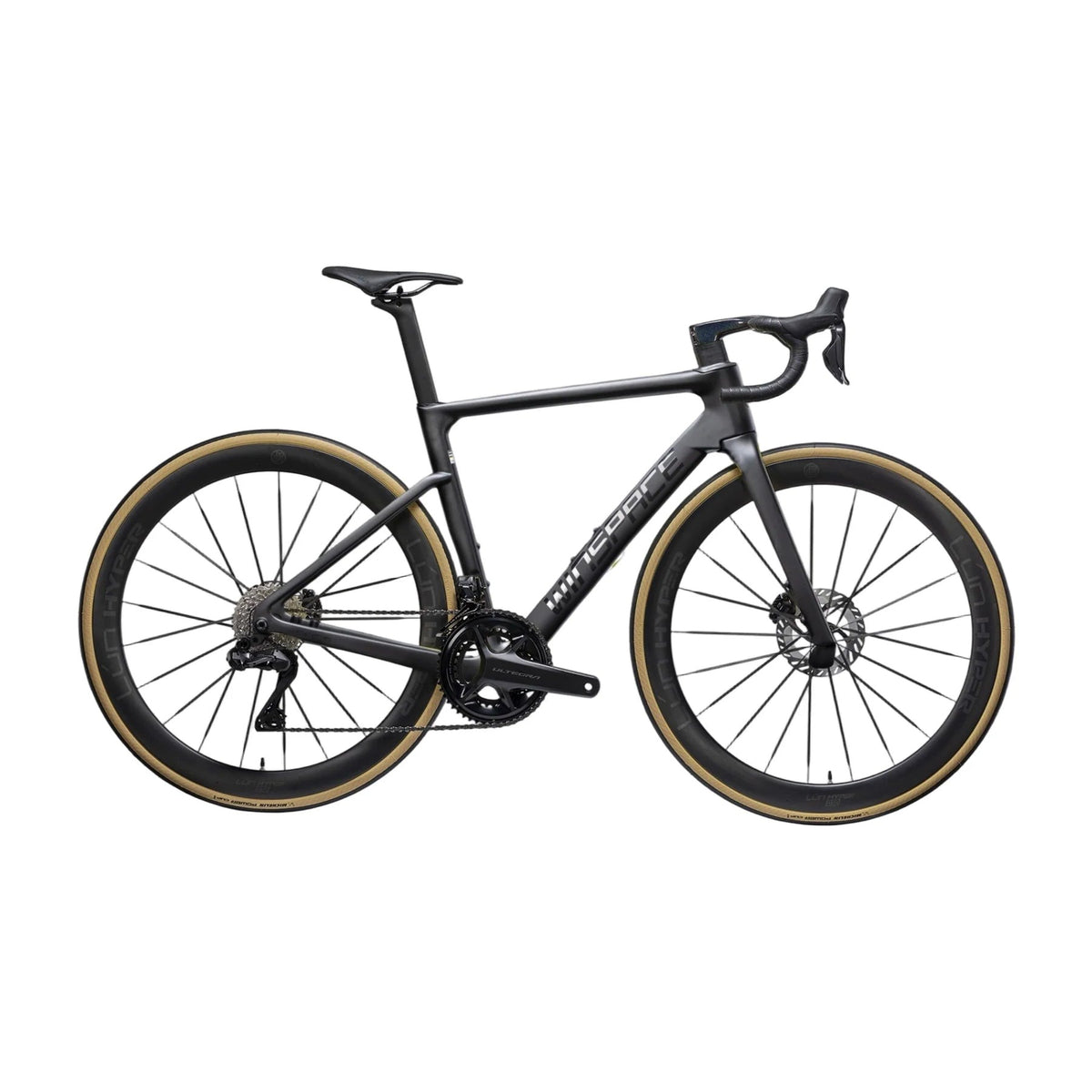

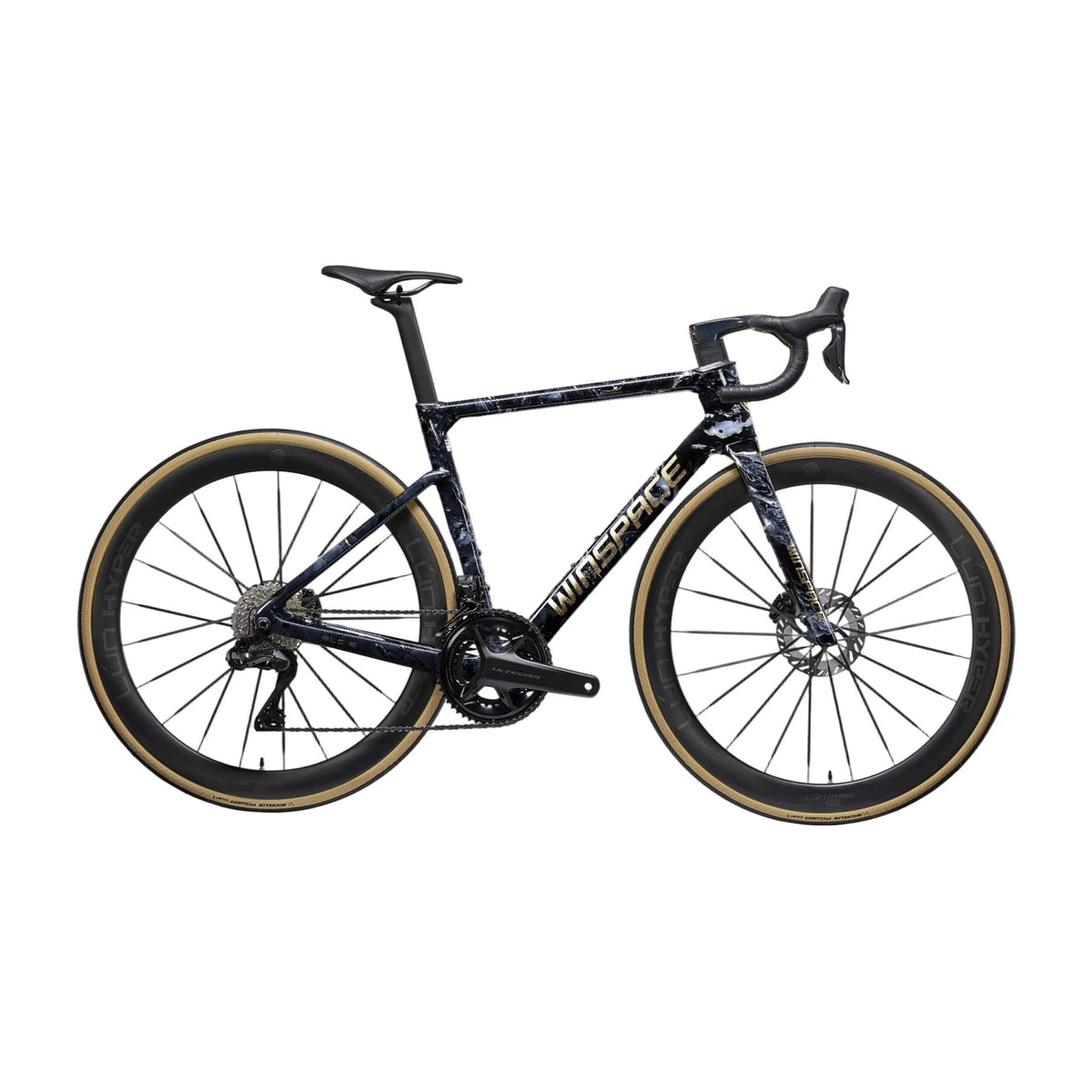

Winspace SLC5.0 Dura-Ace Di2

The Winspace SLC5.0 Dura-Ace Di2 is an all-round, aero, ultralight road bike: a 705 g frame (size M, unpainted) in high-modulus Toray carbon for a fast, precise, balanced ride.

• 705 g frame (size M, unpainted) — Toray T800 + T1100 + M65 + M46 carbon, refined in the Silverstone wind tunnel.
• Aero and lightweight at the same time — stiff when sprinting and stable on descents, with an SL-inspired rear end.
• Shimano Dura-Ace Di2 (12-speed) — Shimano’s top-of-the-line electronic groupset for peak performance.
• Carbon wheels and integrated Winspace cockpit — a fast, aerodynamic setup; see the specification sheet for the exact equipment.

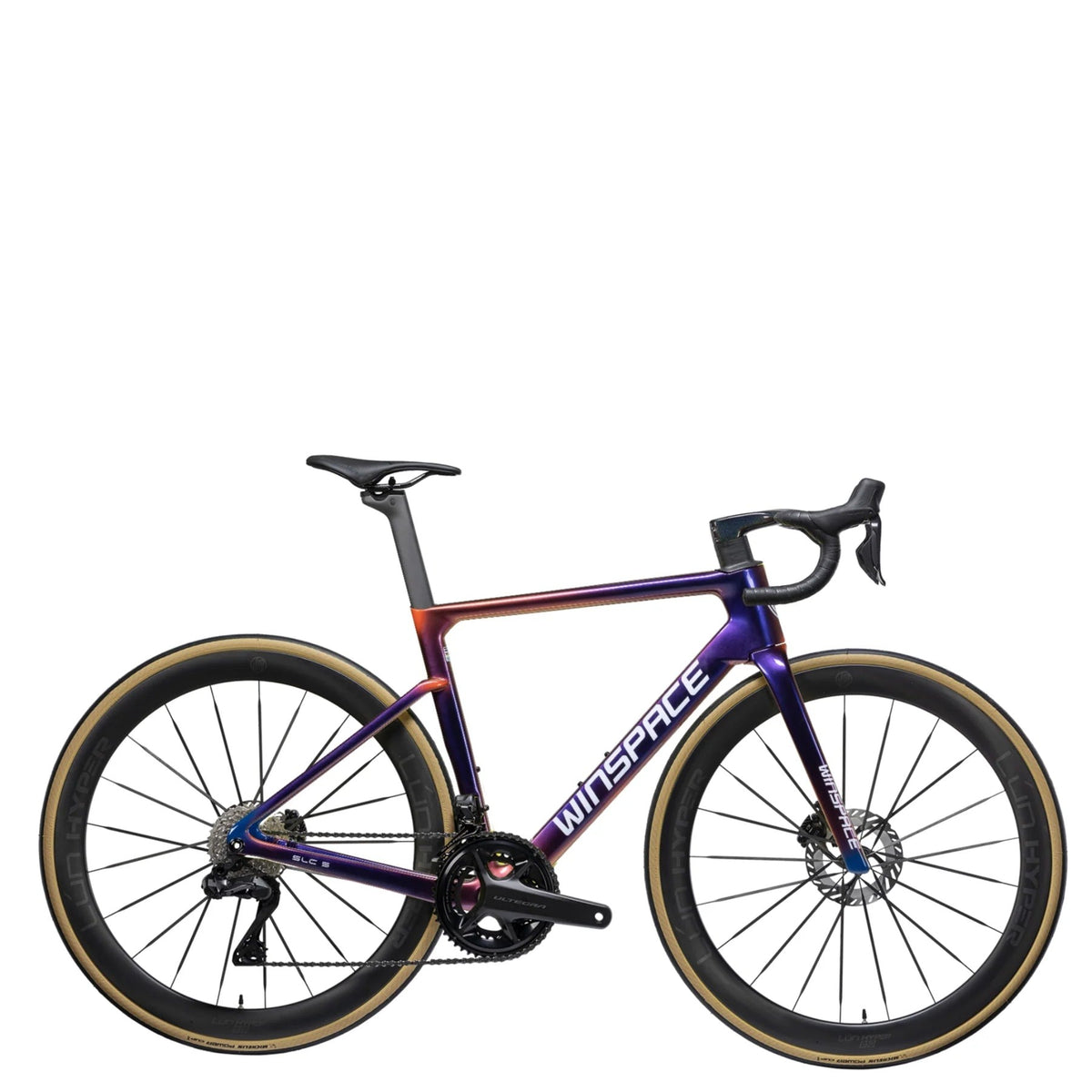

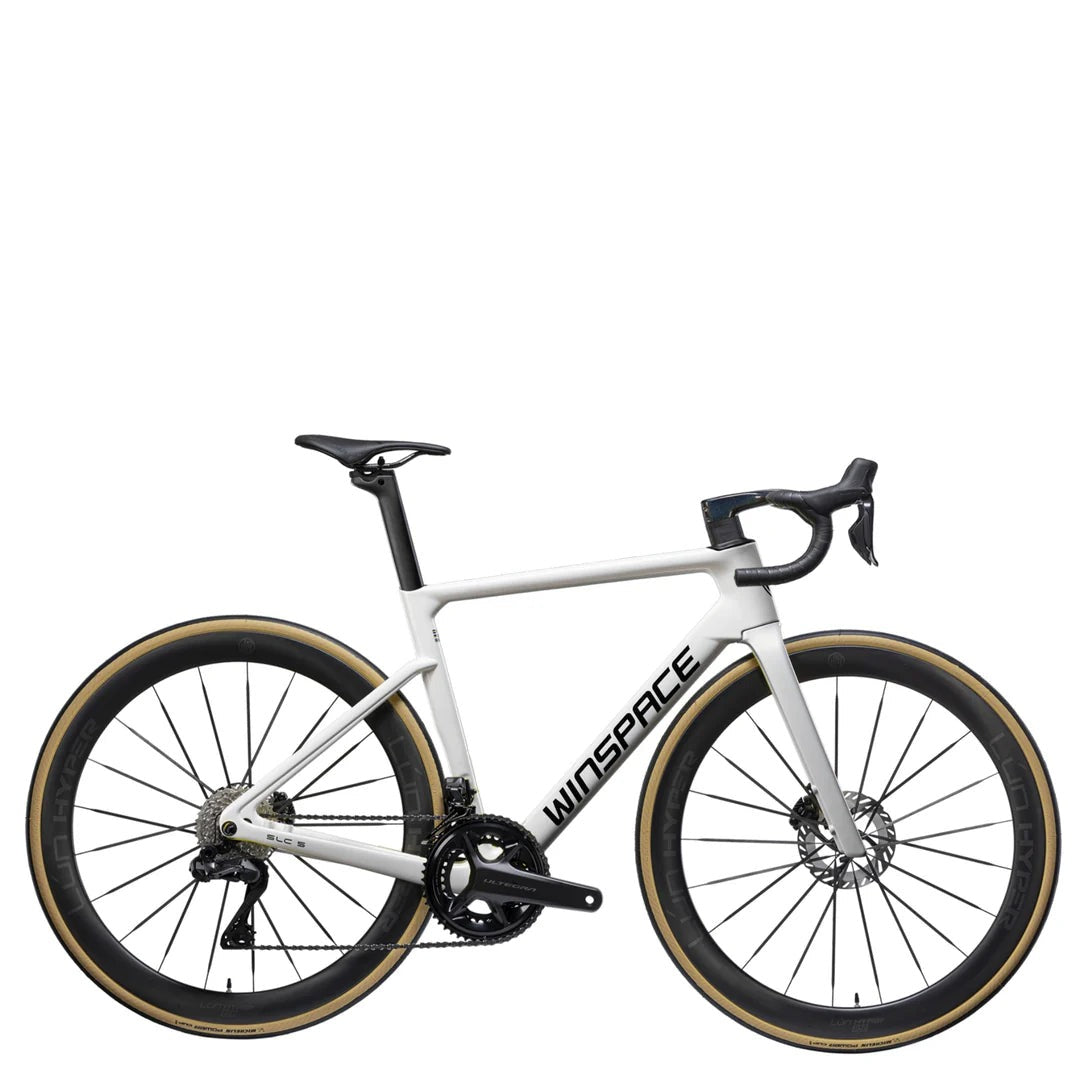

Available in sizes XS–XL and several finishes. Tire clearance up to 700×32C. See specifications for the full equipment details.

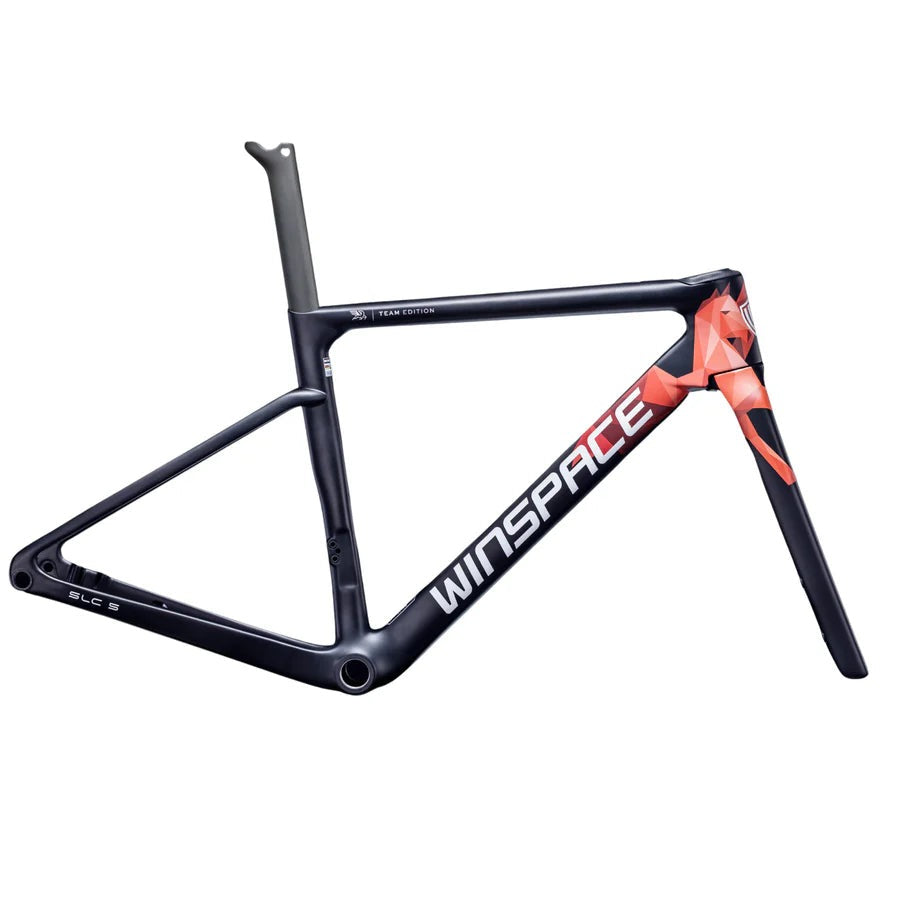

• Frame: high-modulus Toray T800 + T1100 + M65 + M46 carbon
• Cable routing: fully internal

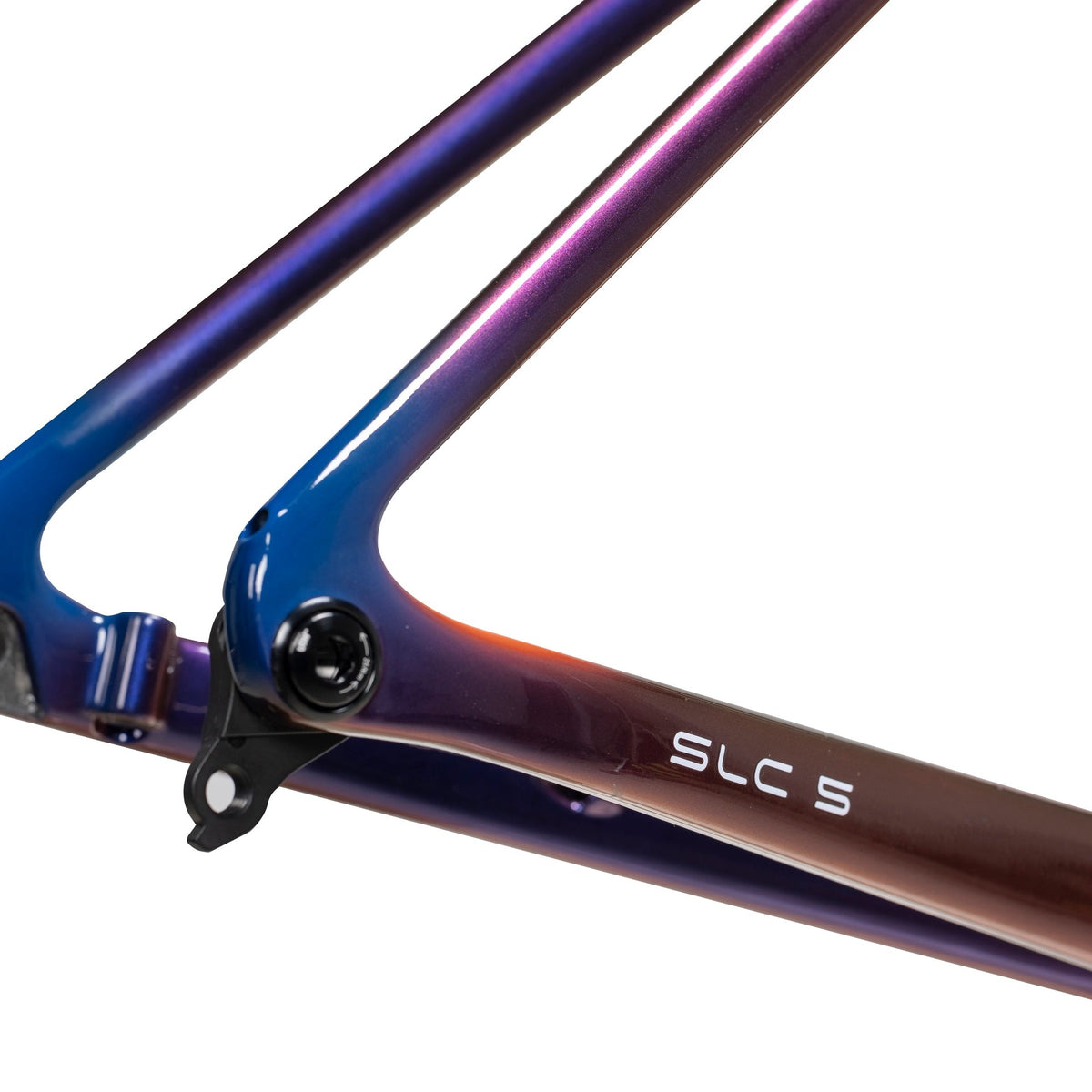

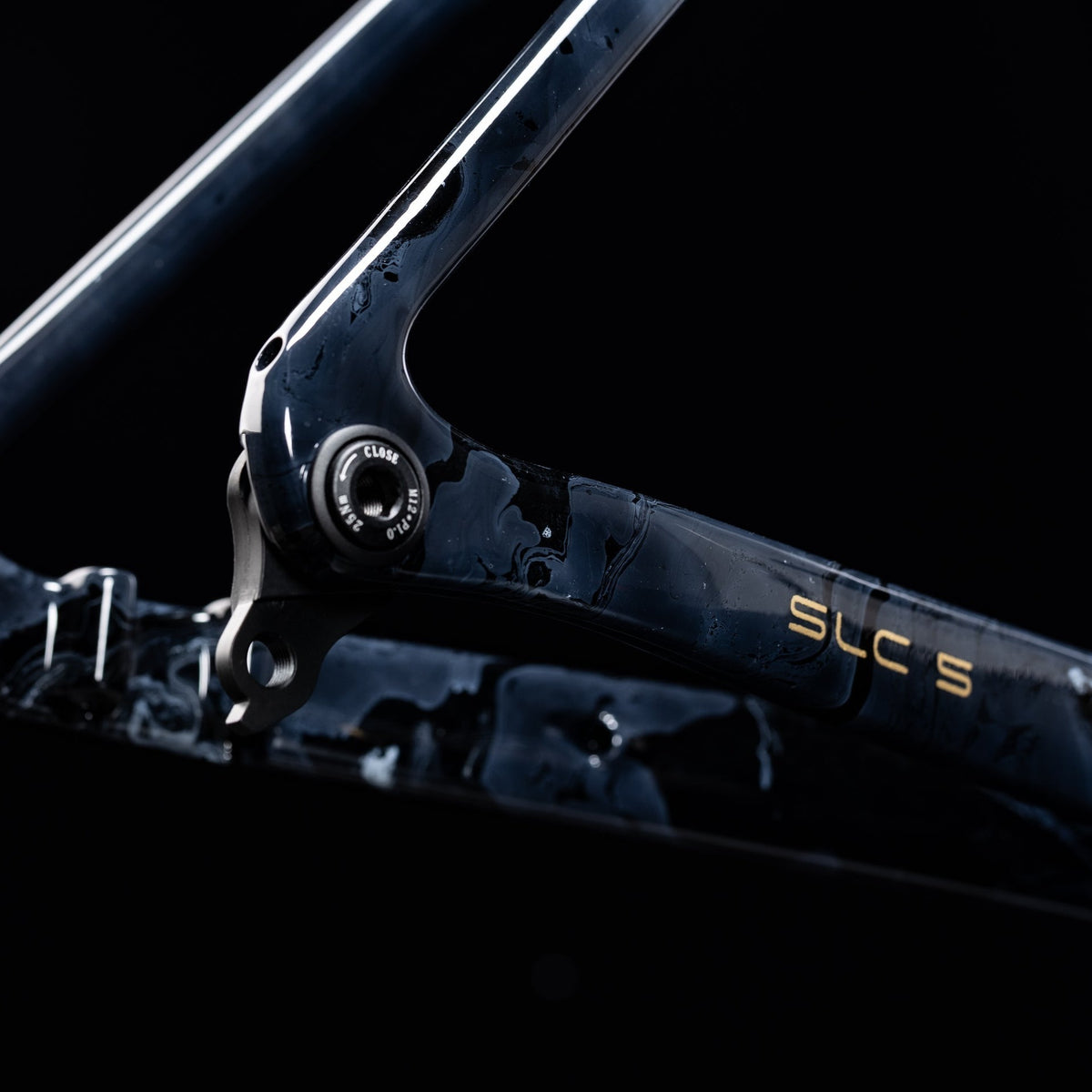

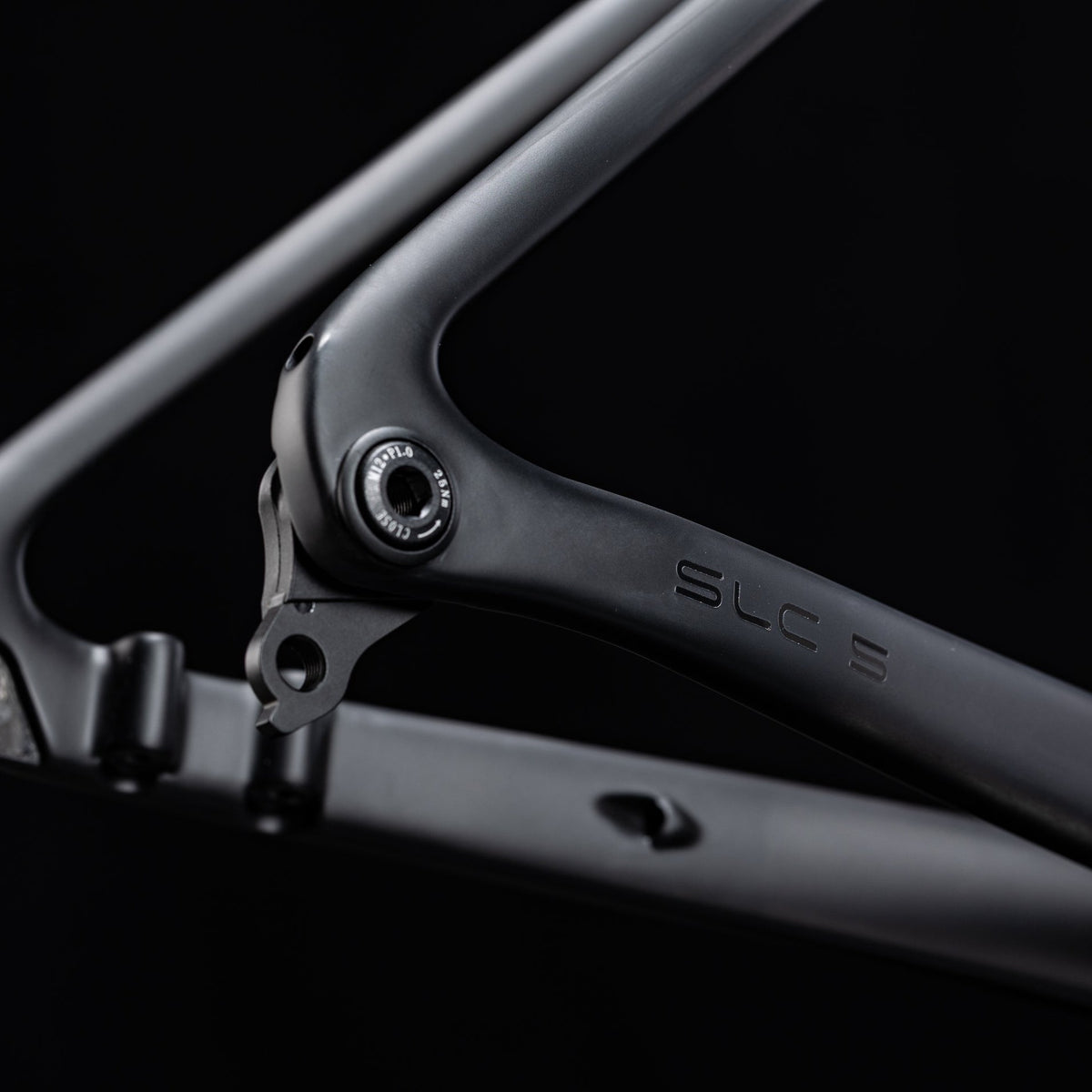

• Derailleur hanger: UDH

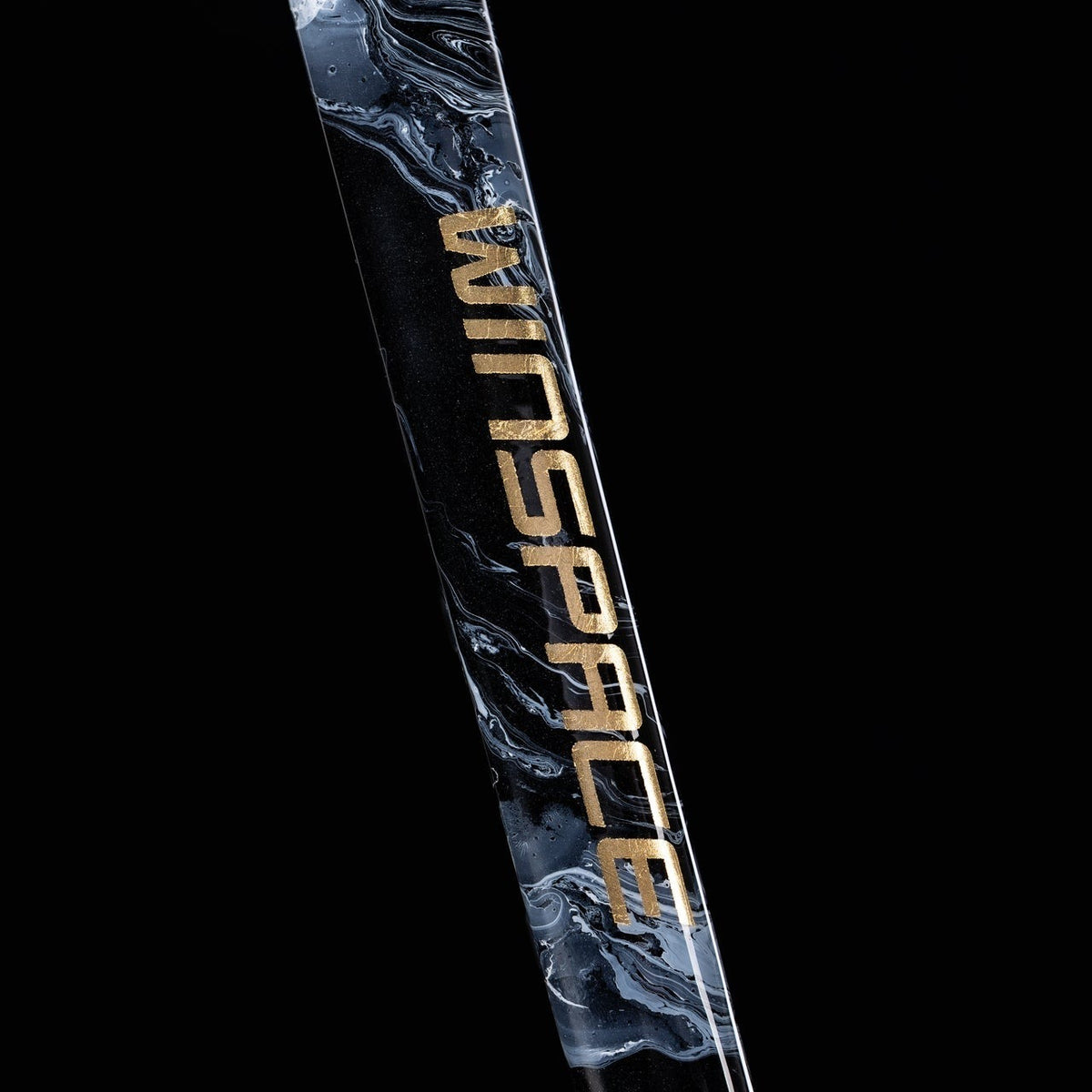

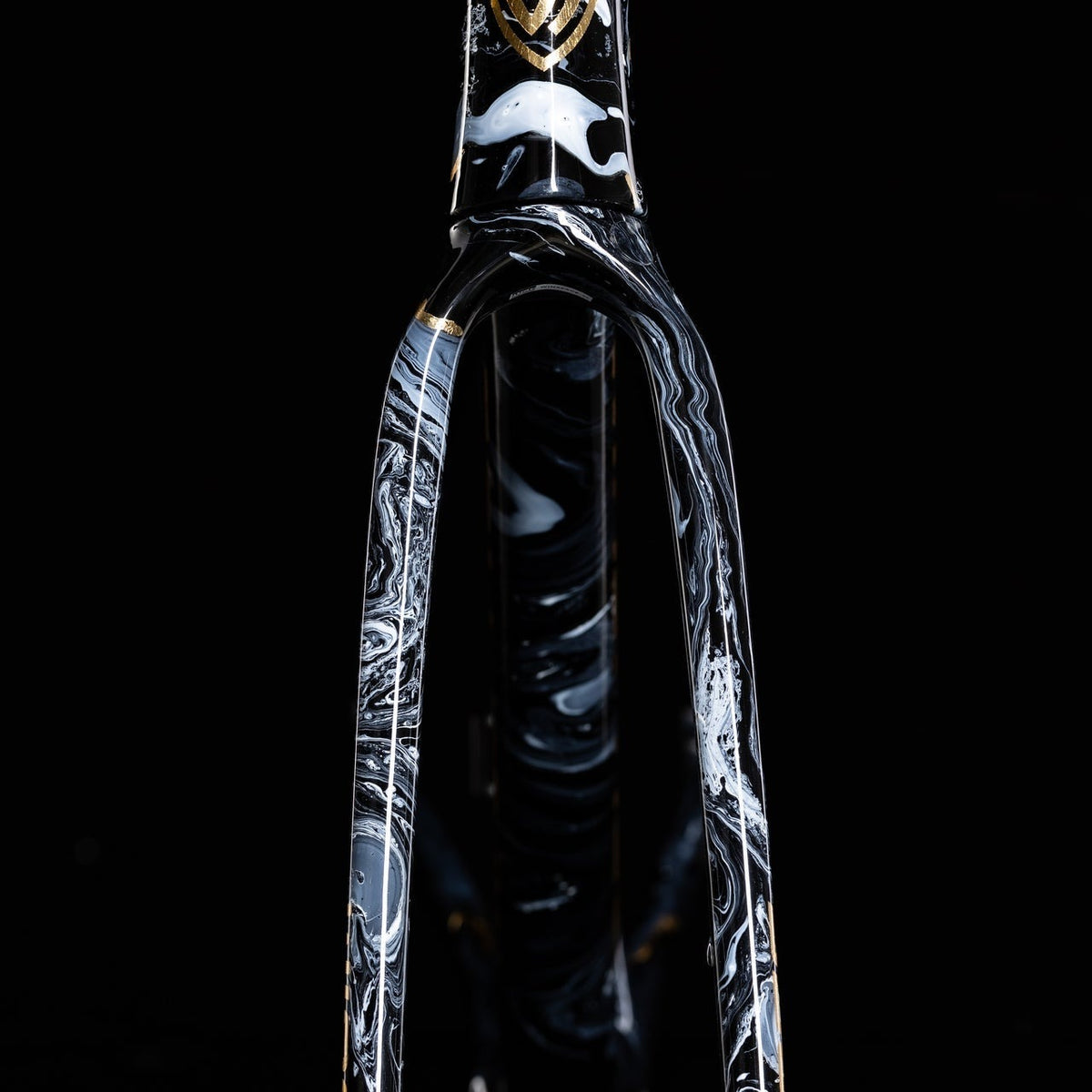

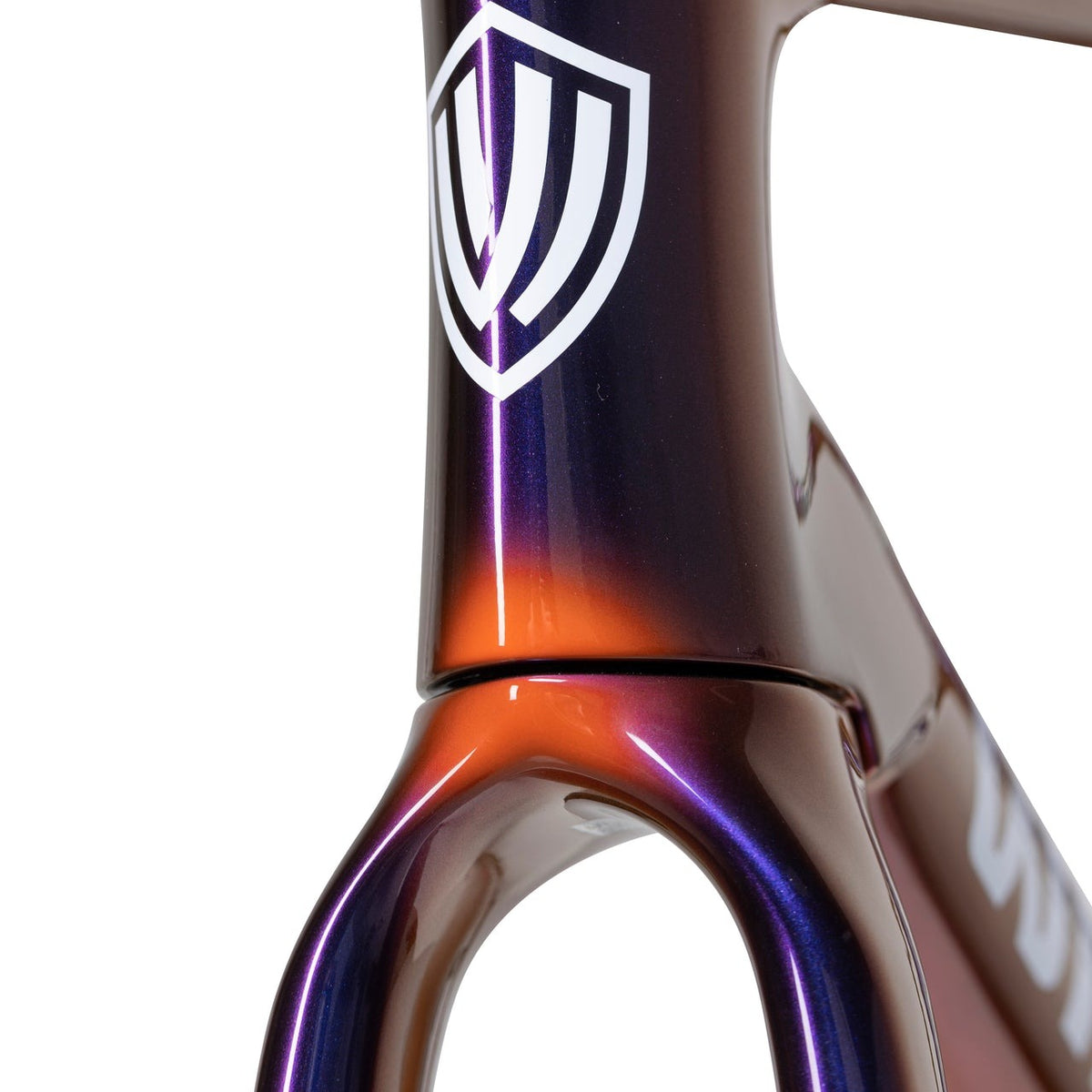

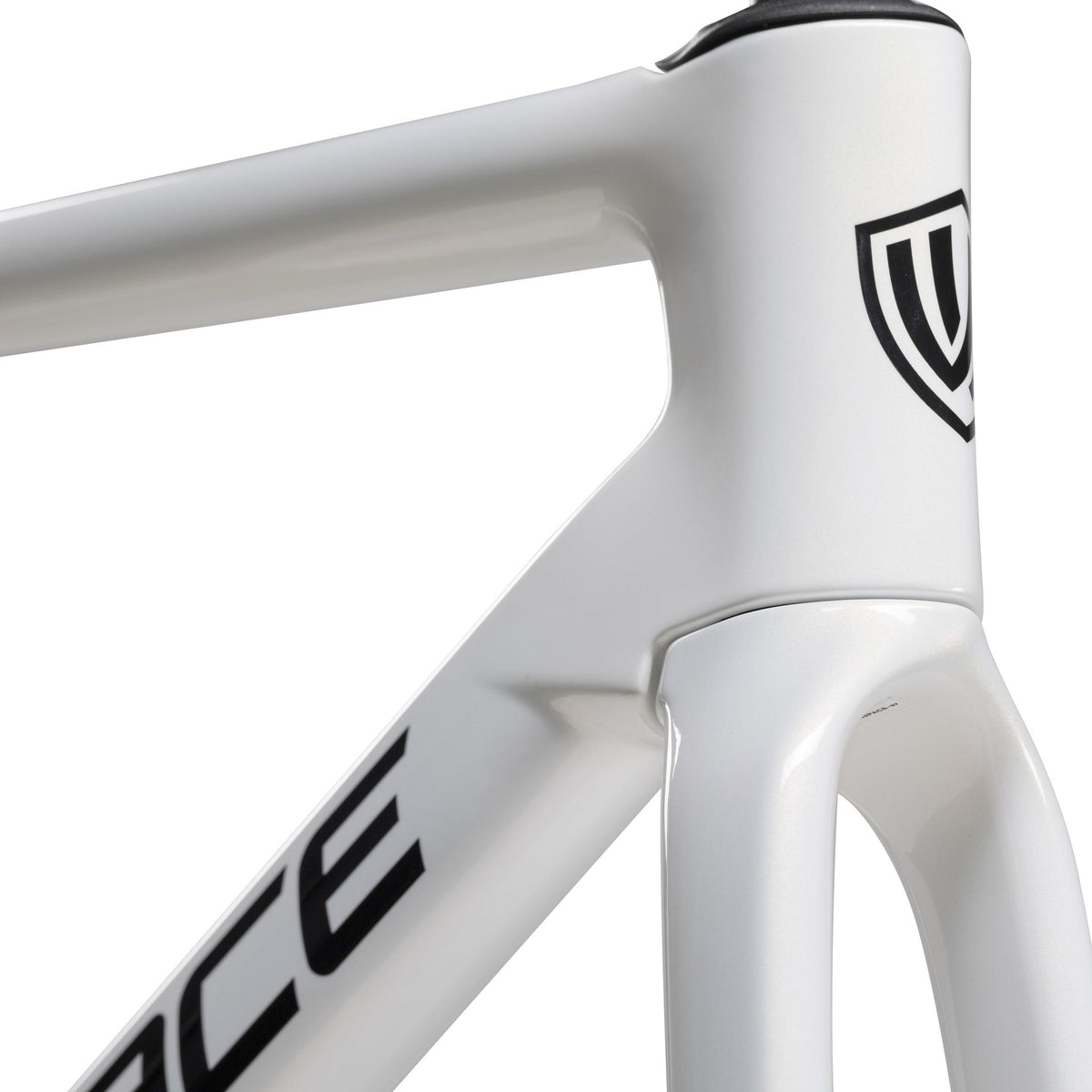

• Fork: full carbon, 28.6 mm OD1 steerer tube, 51.8 mm crown race
• Shifters: Shimano Dura-Ace ST-R9270 Di2 hydraulic
• Rear derailleur: Shimano Dura-Ace RD-R9250 Di2
• Front derailleur: Shimano Dura-Ace FD-R9250 Di2
• Crankset: Shimano Dura-Ace FC-R9200, 52/36T chainrings
• Cassette: Shimano CS-R9200-12, 11–30T
• Chain: KMC X12SL DLC
• Brakes: Shimano Dura-Ace hydraulic disc
• Brake mount: Flat Mount
• Rotors: 160 mm front / 140 mm rear
• Wheels: HYPER 3 D33 carbon; 35 mm depth front and rear; 23 mm internal and 28.4 mm external width
• Spokes and bearings: 20 carbon spokes front and 21 rear; ceramic bearings
• Rim compatibility: clincher and tubeless
• Thru-axles: 12×100 mm front and 12×142 mm rear
• Tires: Michelin Power Cup 700x28C; black or tan sidewall depending on availability
• Maximum tire clearance: 700x32C

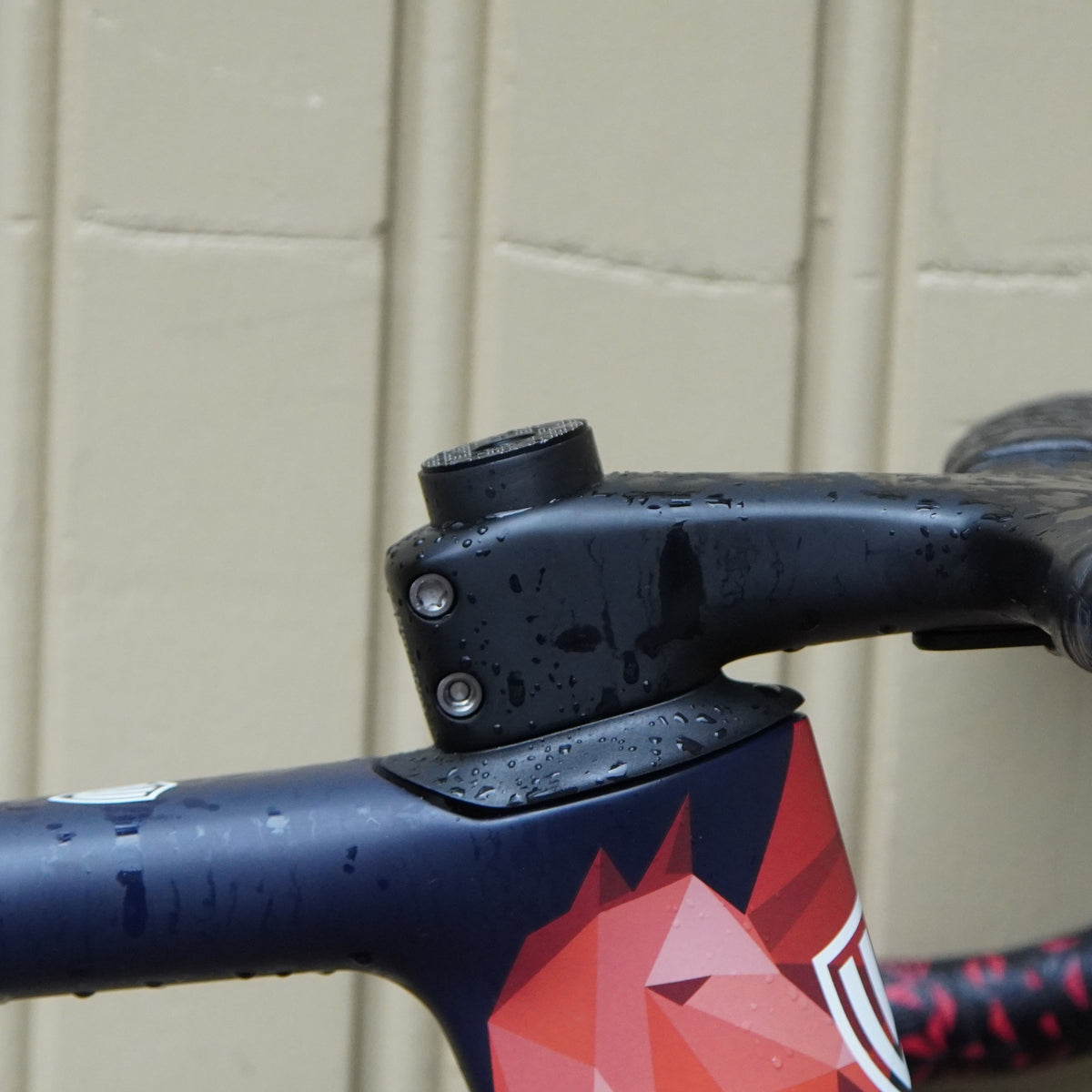

• Handlebar/cockpit: HYPER Integrated Handlebar or HYPER 2 Riser Handlebar, depending on the selected option
• HYPER geometry: 73 mm reach, 123 mm drop, 7° stem angle, 4° flare and 6° outsweep
• HYPER 2 geometry: 40 mm rise, 73 mm reach, 123 mm drop, 11° stem angle, 4° flare and 6° outsweep
• Handlebar width options: HYPER: 380, 400 or 420 mm
• Stem length options: HYPER: 85, 95, 105, 115 or 125 mm
• Seatpost: Winspace SLC5-specific aerodynamic profile; XS/S: 320 mm with 0 mm setback; M/L/XL: 360 mm with 15 mm setback
• Saddle: Selle Italia Novus Boost Evo X-Cross Superflow
• Handlebar tape: Selle Italia SG-Tape
• Bottom bracket: 1.37″ × 24 TPI threaded BSA; 68 mm shell
• Headset: FSA ACR 1½″ top and bottom; 51.8 × 40 × 8 mm bearings, 45° × 36°
• Sizes: XS, S, M, L, XL
• XS geometry: 509 mm stack, 371 mm reach; recommended rider height 155–163 cm
• S geometry: 520 mm stack, 377 mm reach; recommended rider height 163–171 cm
• M geometry: 536 mm stack, 386 mm reach; recommended rider height 171–179 cm
• L geometry: 556 mm stack, 394 mm reach; recommended rider height 179–186 cm
• XL geometry: 576 mm stack, 404 mm reach; recommended rider height 186–193 cm

Delivery: 90% pre-assembled bicycle, with the components of the selected build

Accessories: saddle, seatpost, seatpost wedge, steel rail clamp, bike computer mount, seatpost dust cap, four bottle cage bolts, and assembly tools

UDH hanger: one pre-installed; no spare hanger included

Complete bike: approximately 6.9 kg in size M, without pedals

Frame: 705 g in size M, unpainted

Fork: approximately 351 g

Seatpost: approximately 115 g in a length of 360 mm

HYPER 3 D33 Wheels: 1,249 g per set (±50 g)

HYPER Cockpit: 320 g in 400 × 105 mm

HYPER 2 Cockpit: 320 g in 400 × 105 mm

3-year legal warranty

Winspace commercial warranty: 3 years for the frame and 2 years for the wheels from receipt, for the original purchaser and non-transferable

Coverage: Manufacturing defects; excludes normal wear and tear, misuse, and lack of maintenance
