Winspace  |  SKU: P6256

CUADRO WINSPACE T1600 ULTRA

2.550,00 €
Tasse incluse. Le spese di spedizione saranno calcolate al momento del pagamento.
COLOR
TALLA

Tempo di consegna stimato: De 30 a 40 días laborables

  • Spedizione gratuitaDa 100€ in Spagna
  • Pagamento sicuroSSL e gateway verificati
  • Rivenditore ufficialeSolo prodotti autentici
  • Garanzia ufficialeSupportata dal marchio
Dettagli del prodotto


El T1600 ULTRA es un cuadro aero de carretera diseñado para maximizar la velocidad y la eficiencia en cualquier situación. Su tubo ultrafino reduce la resistencia aerodinámica, mientras que la geometría agresiva y el triángulo trasero compacto mejoran la rigidez y la aceleración.
El cableado totalmente integrado, la compatibilidad con grupos electrónicos y la horquilla aero ultraligera convierten al T1600 ULTRA en una plataforma ideal para ciclistas que buscan un montaje rápido, estable y competitivo.

Specifiche tecniche

Cuadro: carbono aero de alto módulo

Horquilla: aero ultraligera en carbono

Cableado: totalmente interno

Compatibilidad de transmisión: electrónica (Di2 / AXS)

Geometría: racing aero

Tubo diagonal: diseño ultrafino para reducir drag

Tirantes: geometría compacta (short rear stay)

Caja de pedalier: Boost Hybrid Bottom Bracket

Patilla: Universal Derailleur Hanger (UDH)

Frenos: disco flat mount

Ejes: 12×100 (delantero) / 12×142 (trasero)

Tija: aero vertical específica

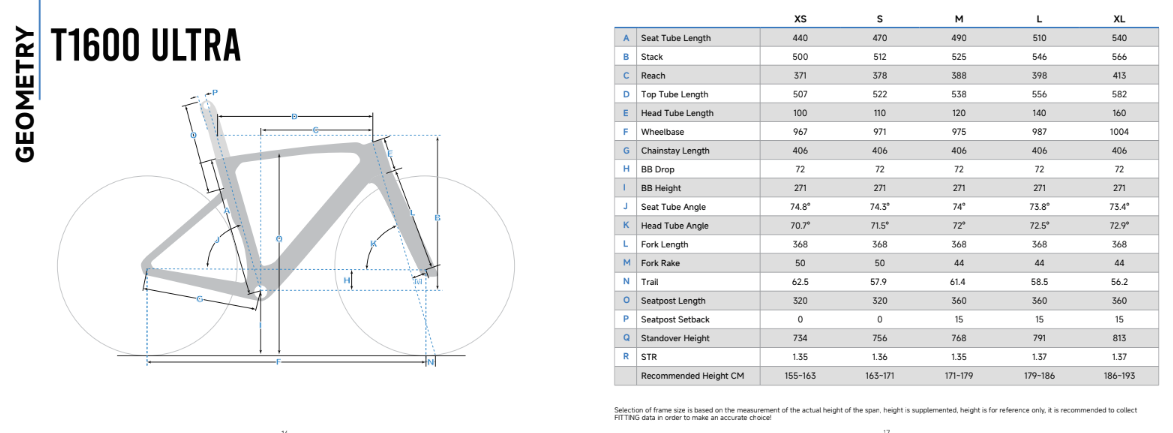

Geometria / Guida alle taglie
Geometría / Guía de tallas
Peso

Cuadro + horquilla (talla M): aprox 1,3kg

Garanzia

Garantía oficial del fabricante de 3 años para cuadros y framesets, contados desde la recepción por parte del comprador original. Para la bicicleta completa, los componentes quedan además sujetos a la cobertura correspondiente de cada fabricante.
